Section 3
Product Instructions

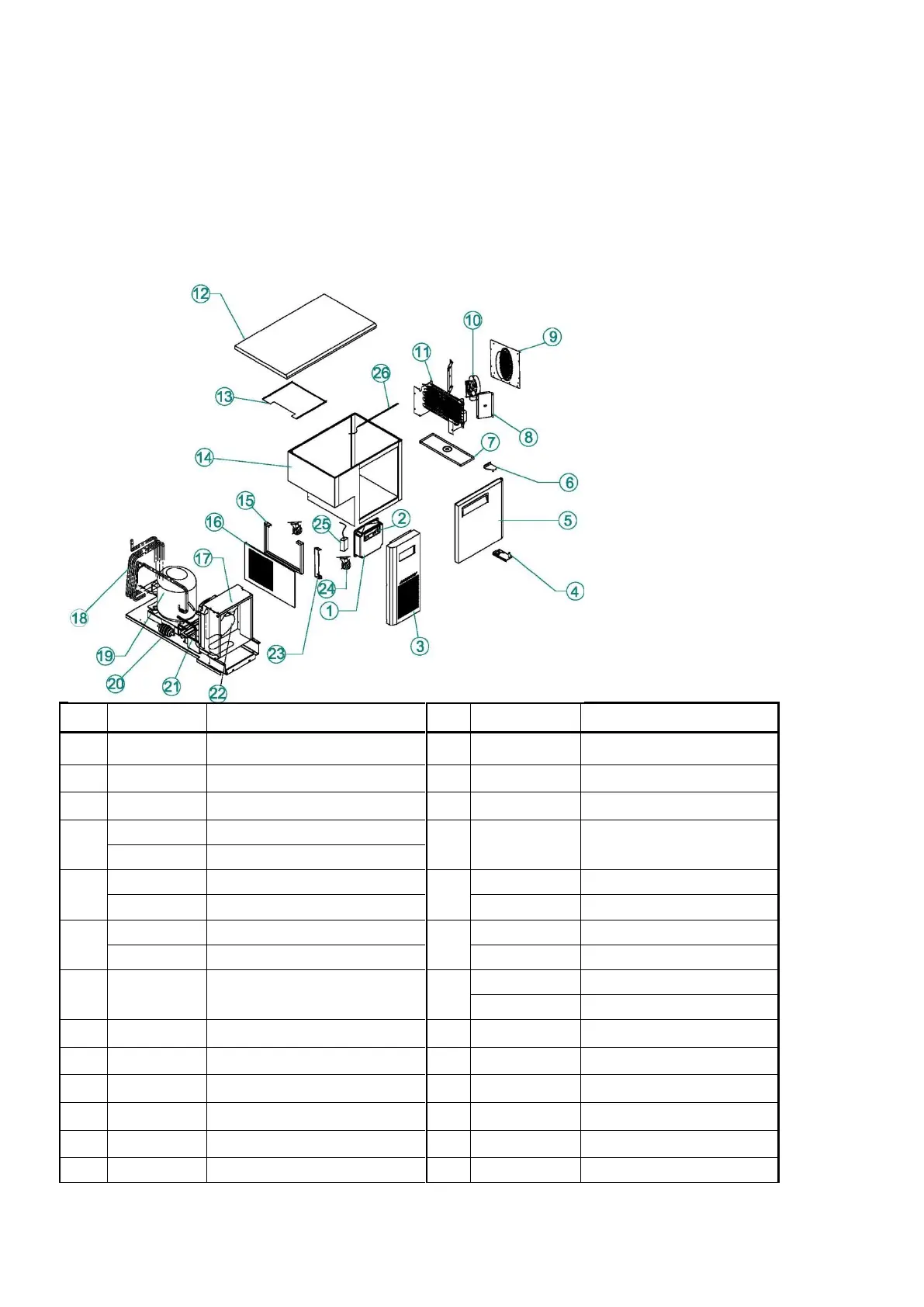

3-1. EXPLODE VIEW
3-1-1. SUR 9-1 / SUF9-1/SGR9-1 Explode View
NO
Part Cord
Part Name
No
Part Cord
Part Name
1
KR81410400
MAIN PCB
14
KU91100100
CABINET ASSY
2
KR81410300
FRONT PCB
15
KR92100302
UNIT BRACKET
3
KR81410704
UNIT FRONT COVER
16
KR81900104
UNIT SAID COVER
4
KR89910100
BOTTOM HINGE（R）
17
KF24900105
CONDENSER ASSYREF
30229M0405
BOTTOM HINGE（R）GLASS
5
KR5AF00102
DOOR（R）_1500
18
KF84900105
CONDENSER ASSYFRE
JG5AF00206
ASS'Y GLASS DOOR R
KR94200109
SUCTION PIPE(B)REF
6
KR89910402
TOP HINGE（R）
19
KR84200109
SUCTION PIPE(B)FRE
M722900108
TOP HINGE（R）GLASS
G2R5700200
COMP REF LX110 REF
7
KR91800201
EVAP DRAIN GUIDE
20
G5R5700200
COMP FRE LX125 FRE
BR84100100
FILTER DRYER
8
KR91800102
AIR GUIDE(L/R)
21
M729300102
DRAIN PAN
9
KF81700100
EVA DUCT
22
G8F5000200
CONDENSER FAN OTOR
10
G8F5000100
EVA FAN MOTOR
23
KF82100208
UNIT SIDE BRACKET(A)
11
DK9A100103
EVAP-ASSY(공용)
24
K3F3200901
LEVEL FOOT&CASTER
12
KR9FF00100
COUNTER TOP
25
KG81200100
SMPS
13
KF85220305
EVA FAN AIR GUIDE
26
KG99600102
LED LAMP
