Skipper ETNSTCI - ETNSTCILF Ice Tank for Low Frequency Transducer Sound (191 mm) 38;24 kHz

Edition: 2021-01-29
Page 11 of 14
ETNSTCI/ETNSTCILF Installation Manual
7. ETNSTCILF Ice tank for low frequency transducer sound (191 mm) 38/24 kHz
1. Weld the bottom ange and weld the the tank to the bottom ange according to welding instructions/
note. See “Welding notes!” on page 5.
2. Install the cable pipe (yard supply) between the transducer tank top and a position above Max waterline.
3. Install the transducer and accessories according to instructions. Note: Do not mount cable glands inside
the tank.
4. After undocking of the ship, it may be necessary to open the cable gland on top of the cable pipe to
bleed out the air to ensure that water will ll the transducer tank. If the tank is not lled with water, the
performance of the transducer will be heavily reduced. See “Bleeding the tank” on page 13
ZZL-01011
01
03
08
09
04
02

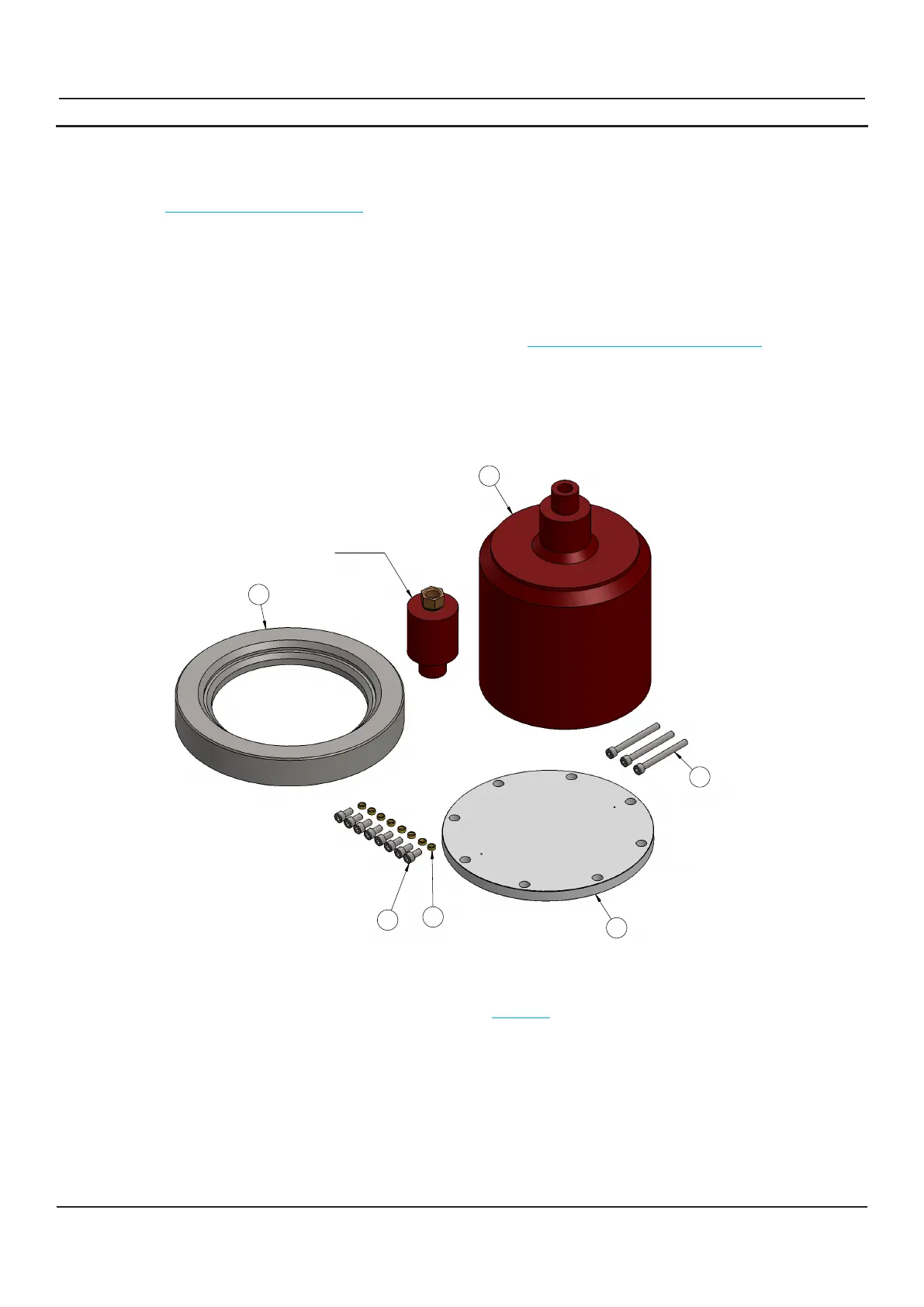

See item ref. on page 12
