Edition: 2021-01-29
Page 9 of 14
ETNSTCI/ETNSTCILF Installation Manual

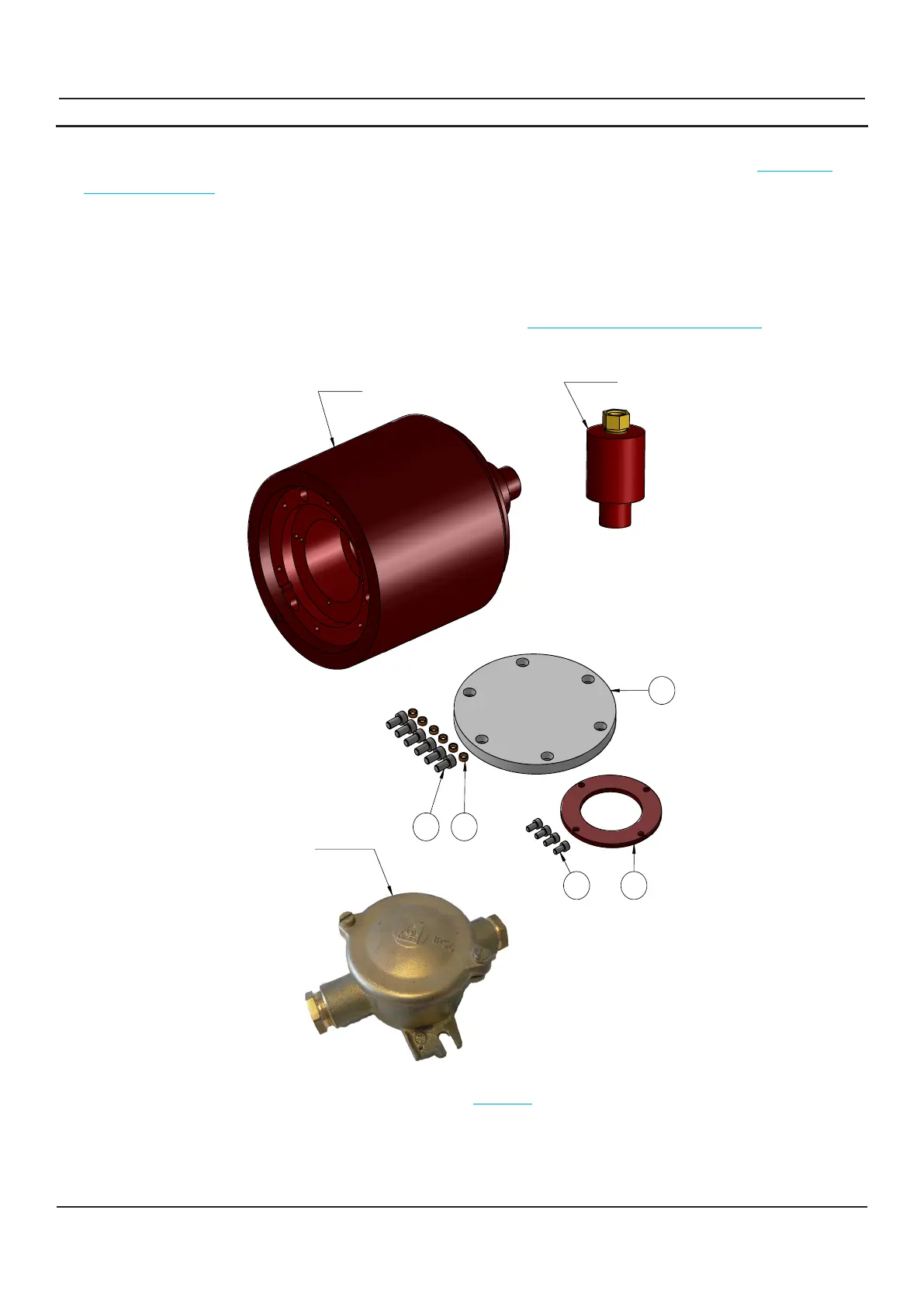

5. ETNSTCI Ice tank for high frequency transducer sound (100 mm) 50/200 kHz.
1. Weld the tank at the selected suitable position according to welding instruction/notes. See “Welding
notes!” on page 5
2. Install the cable pipe (yard supply) between the transducer tank top and a position above Max waterline.
3. Install the transducer and accessories according to instructions. Note: Do not mount cable glands inside
the tank.
4. After undocking of the ship, it may be necessary to open the cable gland on top of the cable pipe to
bleed out the air to ensure that water will ll the transducer tank. If the tank is not lled with water, the
performance of the transducer will be heavily reduced. See “Bleeding the tank” on page 13
10 13
04
11 09
MT-C001
ZZL-01011
ZZL-01019
Junction box
See item ref. on page 10
SKIPPER Electronics AS
