Skipper ETNSTCI - Cable Pipe for Transducer Tank

Edition: 2021-01-29
ETNSTCI/ETNSTCILF Installation Manual
Page 8 of 14
Checked by
F
1
Designed by
E
D
Approved by - date
4
Edition date
Date
F
Sheet
Scale
E
D
C
B
A
1
Revision note RevNo
C
B
2 3 4
Signature Date
A
Checked
Revision
VF AM
Skipper Electronics AS
TA-3004
2007.12.18

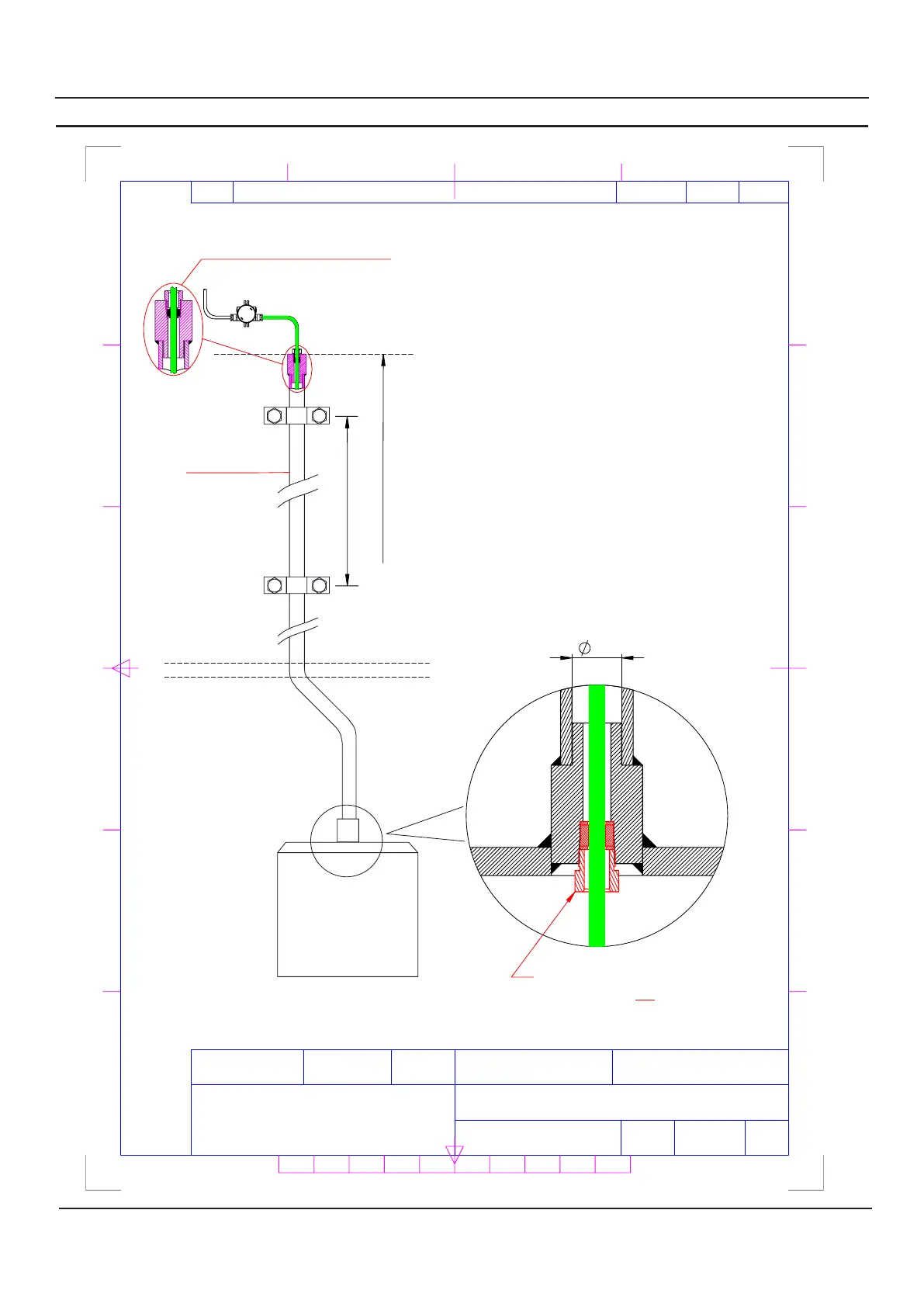

Cable pipe for Transd.Tank Steel
1/1 01
FIXING CLAMPS
FESTEKLAMMER
FIXING CLAMPS
FESTEKLAMMER
WATERTIGHT JUNCTION BOX MUST BE SITED FOR EASY
ACCESS IN AN EXPLOSION-SAFE PLACE, OVER MAX. WATHER LINE.
VANNTETT KOPLINGSBOKS PLASSERES PÅ IKKE
EKSPLOSJONSFARLIG, LETT TILGJENGELIG STED, OVER MAX. VANNLINJE.
STEEL PIPE, MIN. 35 mm DIAM. INSIDE.
WALL THICKNESS:
- GALVANIZED PIPE: MIN. 8 mm
- BLACK PIPE: MIN. 10 mm
QUALITY OF MATERIAL:
- STATED IN VERITAS CHAP. X. PARA. 7A, TYPE III
THE PIPE TO BE WELDED BEFORE PULLING THE CABLE.
EXPANDING POSSIBILITIES MUST BE ARRANGED.
MAXIMUM DISTANCE BETWEEN PIPE CLAMPS, 25 X PIPE DIAM.
STÅLRØR, INNV. DIAM. MIN. 35 mm
VEGGTYKKELSE:
- GALVANISERTE RØR: MIN. 8 mm
- SVARTE RØR: MIN. 10 mm
MATERIALKVALITET:
- SE VERITAS REGLER KAP. X. PARA 7A, TYPE III
RØRET SVEISES INN MED TILSTREKKELIG EKSPANSJONSMULIGHET,
FØR KABELEN TREKKES.
MAKS. KLAMMERAVSTAND PÅ RØRET, 25 X RØRDIAM.
MAX. 25 x PIPE DIAM.
500 mm above the highest possible water line
Yard Supply
Yard Supply
(Included in delivery on ICE Tank)
DD
H
35
Note:
Cable gland must not be mounted
inside the ICE Tank.
2013.05.07
4. Cable pipe for transducer tank
SKIPPER Electronics AS
