FABIA 2000 ³ Body Work
Front bonnetEdition 10.03
S00.5319.13.20
55-1 page 1
55
55-1 Front bonnet

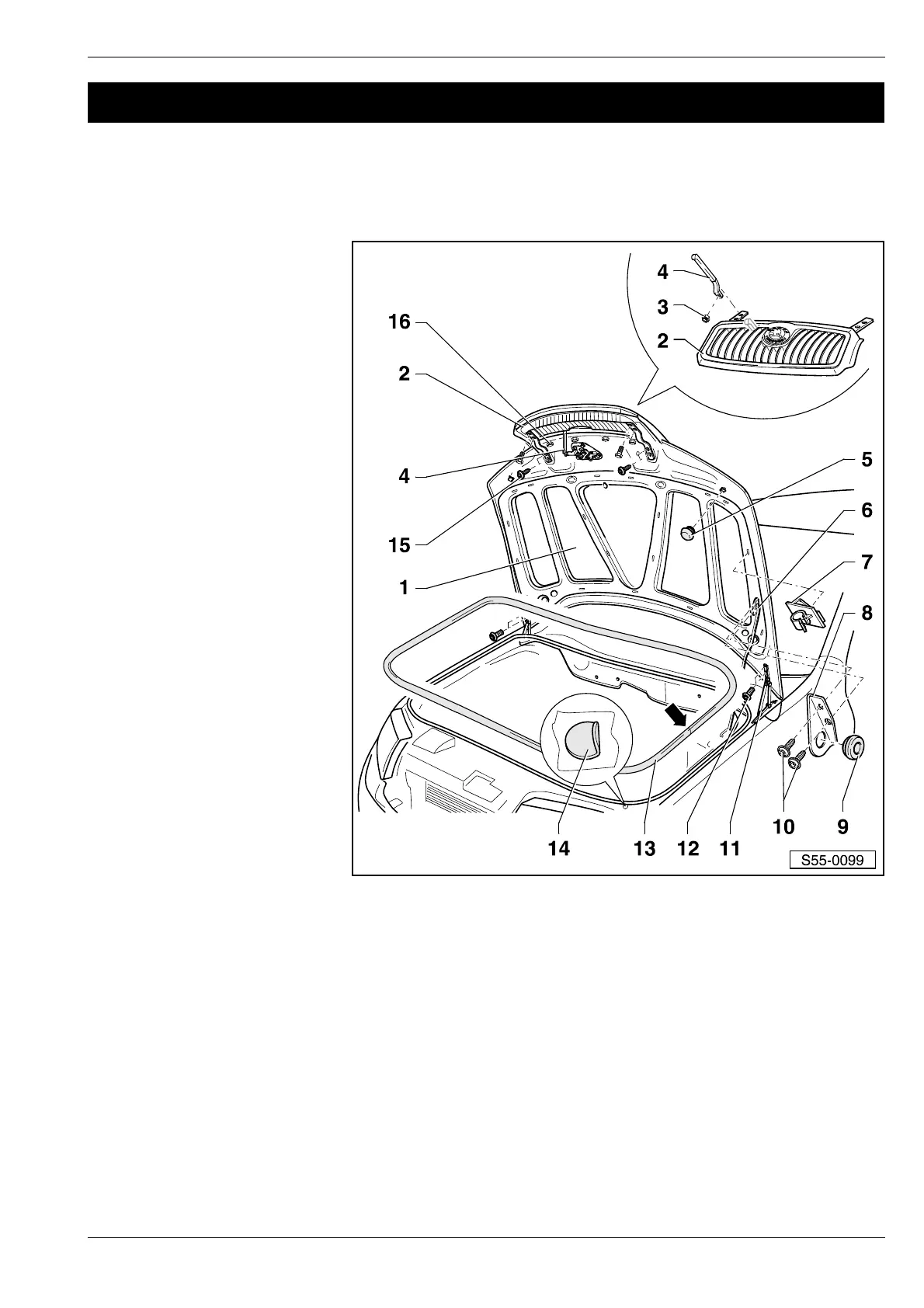

Summary of front bonnet components
1 - Front bonnet
T removing:
– Release screws ⇒ item 12
and remove bonnet.
T Installing:
Installation is carried out in the
reverse order.
T adjust ⇒ 55-1 page 3
2 - Radiator grill
T removing:
– Release screws ⇒ item 15
and ⇒ item 16.
– Unclip tension rod ⇒ item 4.
T Installing:
Installation is carried out in the
reverse order.
3- 3 Nm
4 - Tension rod
5 - Adjusting buffer
T The height of the bonnet rel-
atively to the wings can be
adjusted by unscrewing or
tightening the adjusting buff-
er.
6- Crutch
7 - Retaining clip
8 - Mounting bracket for crutch
9 - Protective rubber covering for
crutch
10 - 10 Nm
11 - Bonnet hinge
12 - 22 Nm
13 - Cooling-water tank seal
T The sealing joint must be positioned in the middle of the wing -arrow-
14 - The protective film
T serves as a support for the adjusting buffer ⇒ item 5
15 - 3 Nm
16 - Screw
