FABIA 2000 ³ Body Work
Pillar and side trim panelsEdition 01.05
S00.5319.15.20
70-3 page 3
70

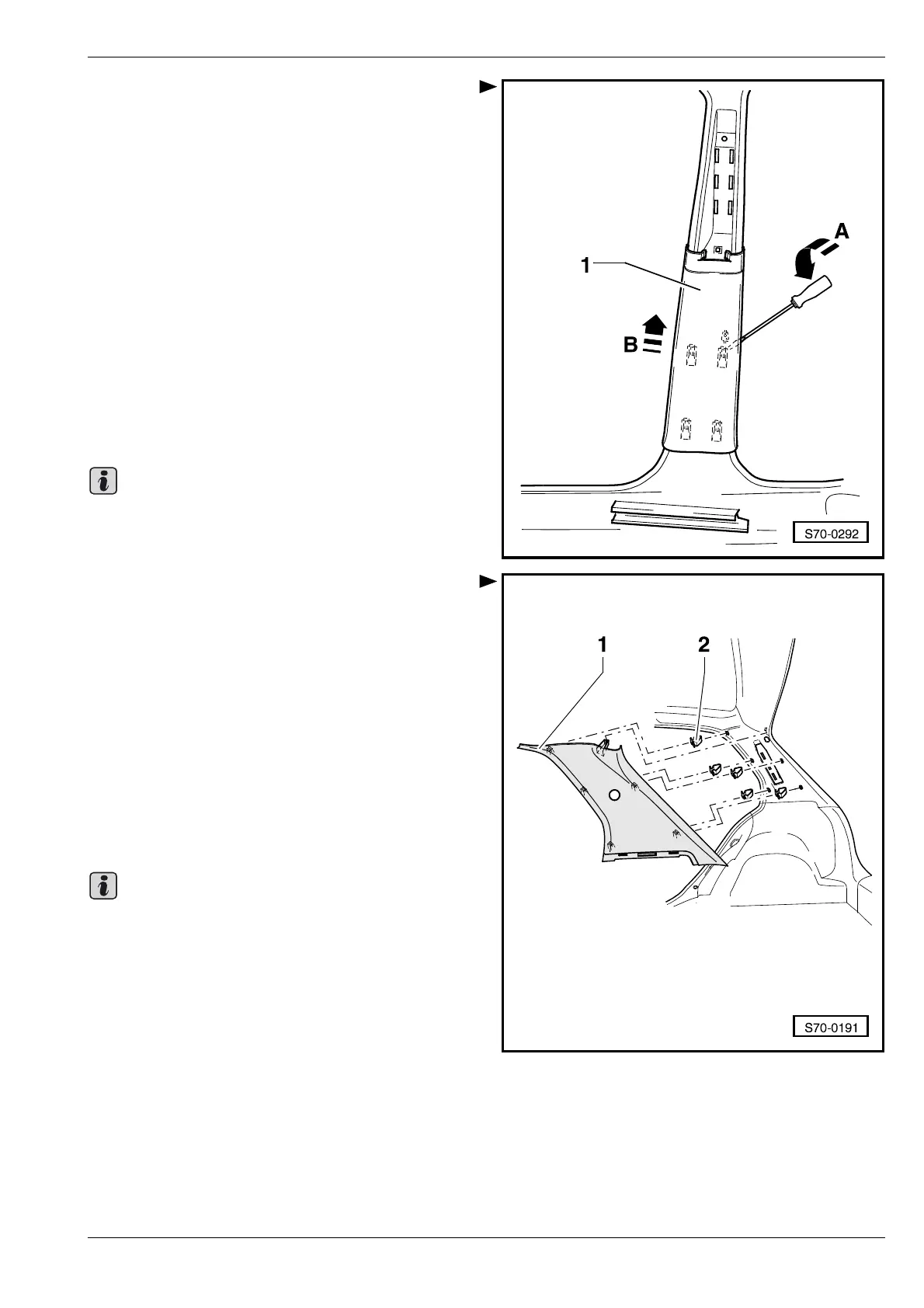

– Pull off top part of bottom trim panel -1- in direction of
the tailgate.
– Insert a long screwdriver into the retaining clips and
release the clips -Arrow A-.
– Grab the trim panel -1- at the loose part and loosen
bottom part of trim panel by pulling upwards -Arrow B-
(if necessary slacken with screwdriver).
Installing
– Recondition the clips ⇒ item 3 in 70-3 page 2 in the
trim panel of pillar B or replace with new ones.
– Press trim panel -1- with clips into pillar B.
– Place door seal into the correct position.
Removing and installing top trim panel
of pillar C
The procedure for removing and installing the top trim
panel of pillar C on Fabia Saloon is similar.
Removing
– Removing seat belt deflection ⇒ Chap. 69-1.
– Remove top trim panel starting from the top of pillar C.
Installing
Installation is carried out in the reverse order.
– When fitting the trim panel replace clips -2- in the trim
panel of pillar C or replace with new ones.
Removing and installing bottom trim
panel of pillar C
The procedure for removing and installing the bottom trim
panel of pillar C on Fabia Saloon is similar.
Note
Note
