Dokument Art. No. 97010601

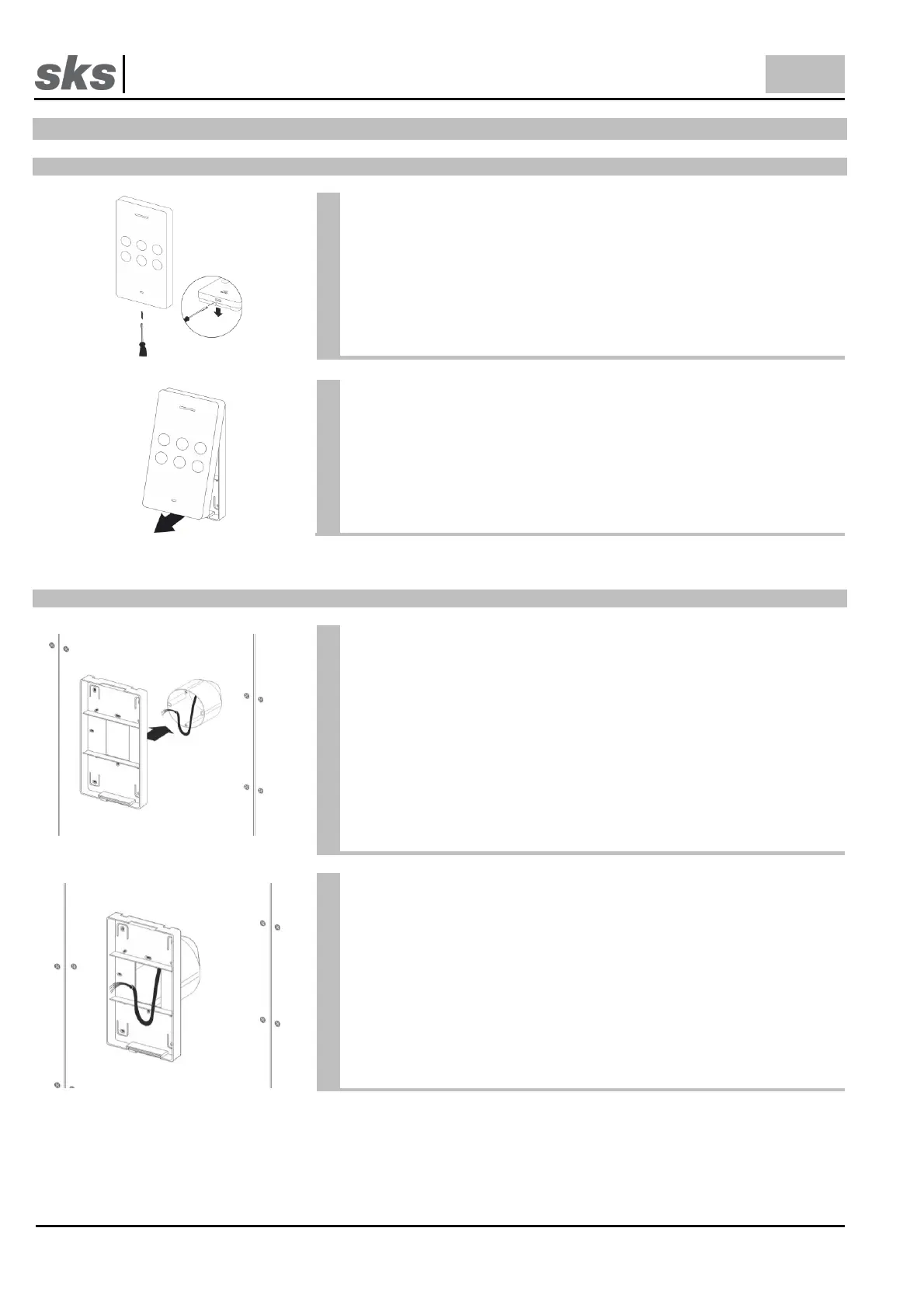

3 Mounting instructions
3.1 Preparation
Use a screwdriver to release the 300098 BUS bell from its supporting
frame. This is done by inserting the screwdriver into the release
opening at the bottom of the 300098 BUS bell.
Carefully remove the 300098 BUS bell from the support frame as
shown in the drawing.
Pull the lower part of the 300098 BUS bell towards you and carefully
lift it upwards.
3.2 Mounting an flush mounted or cavity wall box
We recommend installing a flush-mounted or cavity wall box before
mounting the supporting frame so that it is possible to use the screws
to attach the supporting frame to the flush-mounted or cavity wall box.
Use the fastening holes in the center area of the supporting frame for
this installation.
We recommend additional fixation of the supporting frame with screws
in all four corners of the device.
Pay particular attention to the installation cable when mounting
the supporting frame!
Connect the terminals to the previously installed cable. The terminals
are located at the back of the 300098 BUS bell.
The pre-assembled cables are then connected to the 300098 BUS
bell.
To avoid errors when connecting cables please use the planning
guide or the wiring diagram.
