Dokument Art. No. 97010601

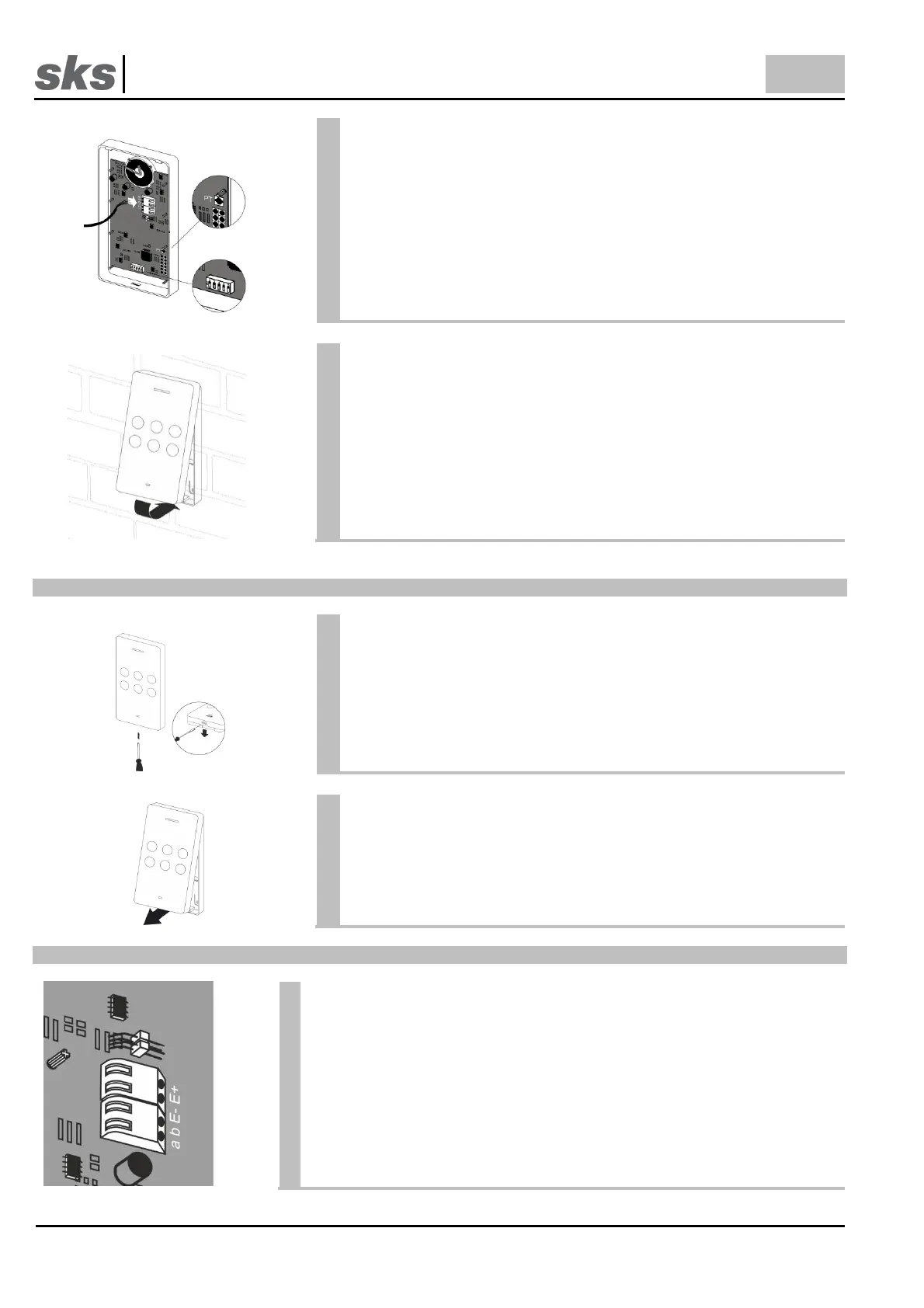

Set the SKS bus call address at the DIP switch on the back of the
300098 BUS bell. Each address is assigned to a bell button at the
door station. The SKS bus table of call addresses can be found in the
appendix.
Pay particular attention to the setting of the DIP switch when the
300098 BUS bell is replaced!
Remount the 300098 BUS bell in the upper part of the supporting
frame.
Subsequently press the 300098 BUS bell into the frame until it clicks
into place.
3.4 Disassembly of the indoor station
Use a screwdriver to release the 300098 BUS bell from its supporting
frame. This is done by inserting the screwdriver into the release
opening at the bottom of the 300098 BUS bell.
Carefully remove the 300098 BUS bell from the support frame as
shown in the drawing.
Pull the lower part of the 300098 BUS bell towards you and carefully
lift it upwards.
SKS -BUS
The 300098 BUS bell is connected to the audio part of the 2-wire video bus
via the terminals a+/b-.
The terminals a+/b- supply 19 - 25 VDC for the 300098 BUS bell.
The terminals E+/E- may optionally be used for floor buttons (normally open
contact).
