SETUP
STANDARD ENVIROVENT 2 INSTALLATION
This section of the manual covers standard installations of The EnviroVent 2 on a single top loading, multi-sided,
electric kiln with a chamber size under 12 cubic feet. A Dual Intake Kit is available for venting a single kiln over
12 cubic feet or two kilns with chamber volumes each under 12 cubic feet. The maximum chamber volume that
can be vented with one motor is 24 cubic feet. For instructions on venting two kilns, kilns greater than 12 cubic
feet and other custom installations consult the
Custom Installations
section of this manual.
As with any change in fi ring routine, we recommend that you closely follow all instructions and monitor your fi r-
ings with witness cone groups on each shelf of your kiln both before and after you install the EnviroVent 2. If you
have any questions, please contact your supplier.
EnviroVent 2 Contents
Blower Motor w/6 ft. Power Cord w/In-line Switch
8” x 12” Mounting Plate
8 ft. x 3” Flexible Aluminum Duct
Spring Loaded Plenum Cup Assembly
Cast Plenum Cup
Fiber Gasket
Plenum Stand w/Base
Plenum Spring
Blower Inlet Tube
Blower Discharge Tube
3” to 4” Connector
Floor Mount Plate
Operating Manual
Mounting Hardware
4 - #10 x 1 ½” Sheet Metal Screws
4 - 8-32 x ¼” Screws
4 - 8-32 Lock Washers
4 - 8-32 Hex Nuts
4 - 1/8” x 2” Toggle Bolts
1 - 1/4” twist drill
1 - 3/16” twist drill
2 - Hose Clamps
Clam
p
Hose

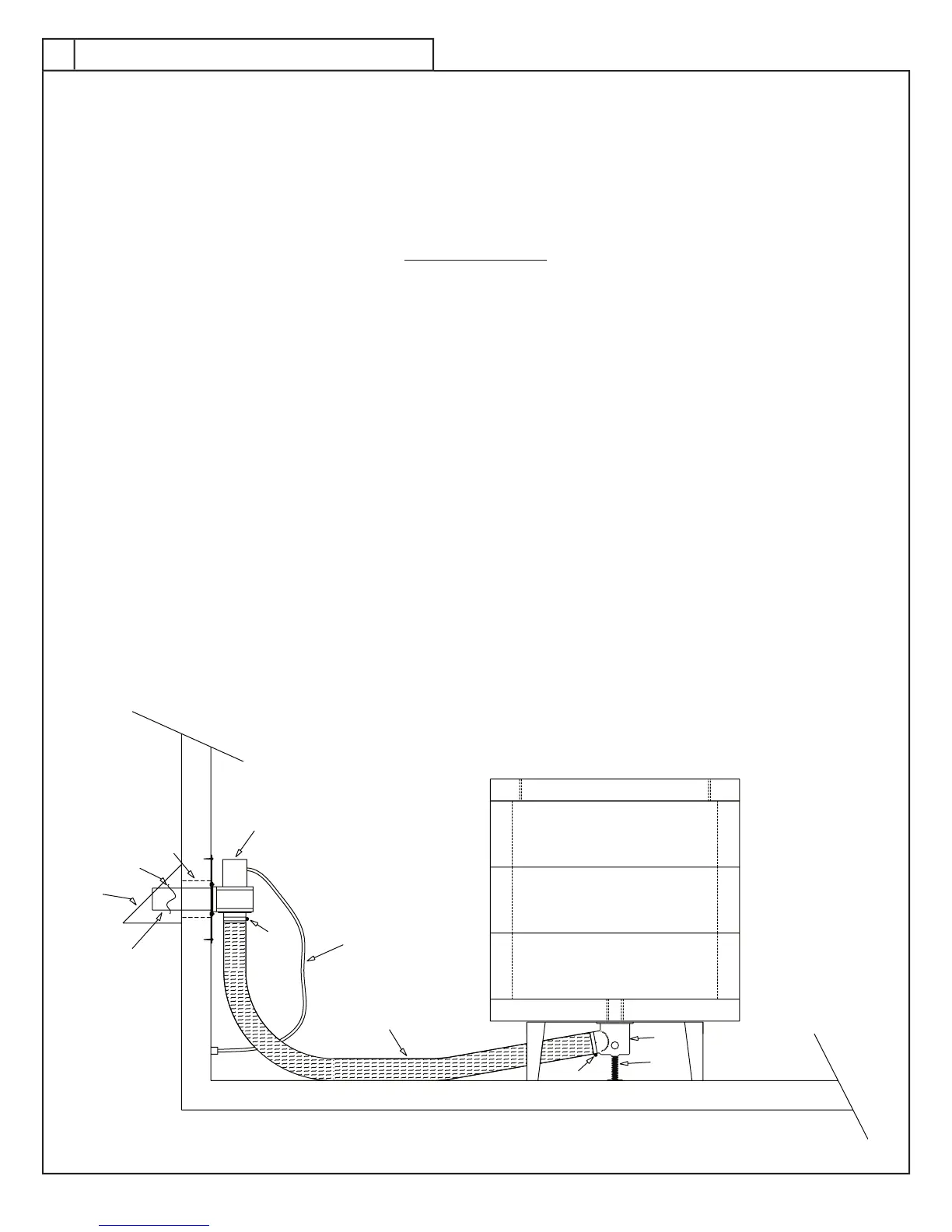

Typical Installatio
n
Envirovent 2
w/Switch
Cordse
t
115 volt
3" x 8" Discharge Tube
W/Moto
r
Blower
Clam
p
Hose
With Sprin
g
Cup Stand
Cu
p
Plenum
Tube
Flex
3" Diameter
in Wall
in Wall
3 1/8" Cutout
Hood
Rain
Necessary
Cut as
