2. MAIN FUNCTIONS

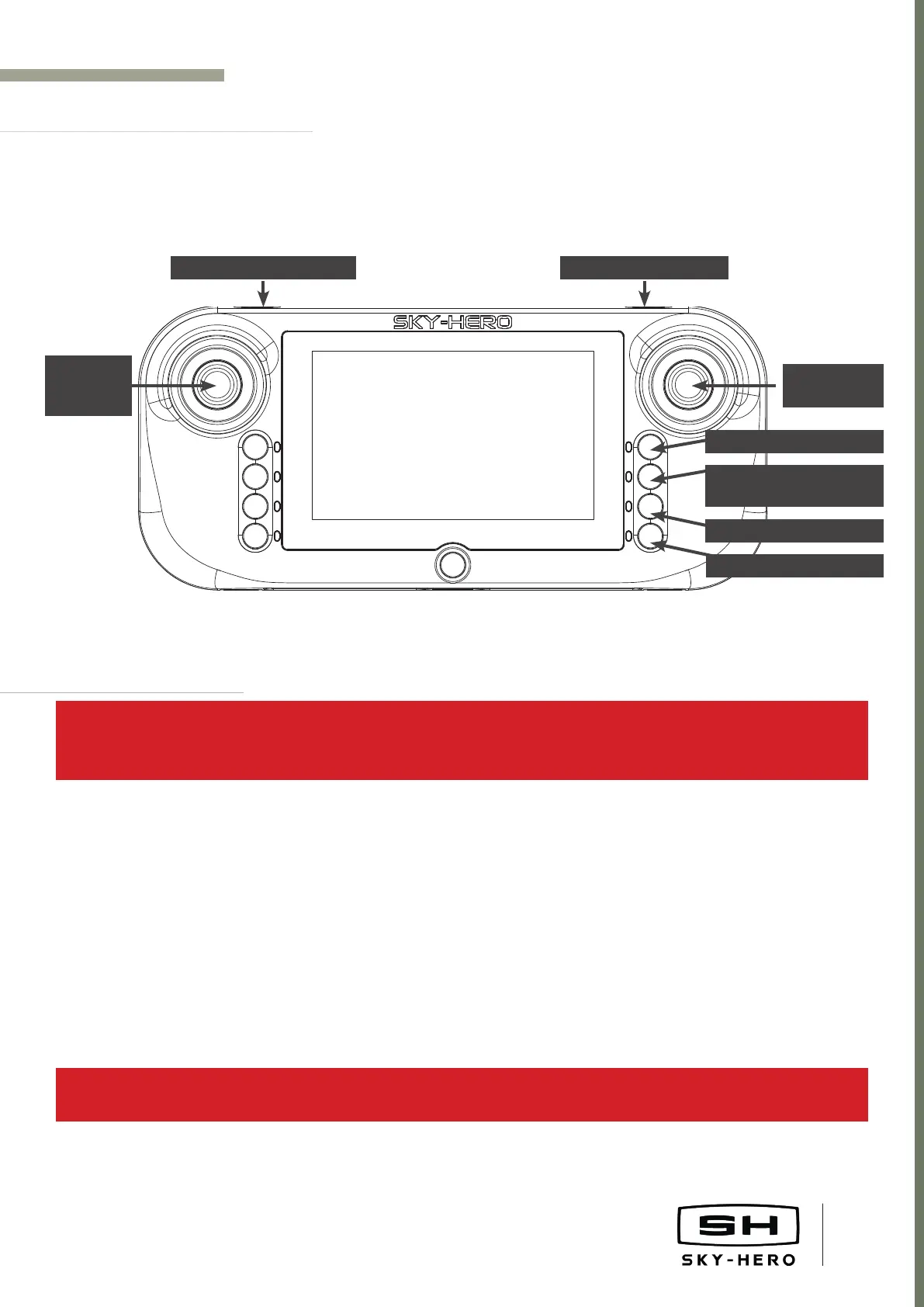

a. Default GCS button allocation.
CAUTION: PRESSING THE TAKEOFF BUTTON WILL START THE MOTORS AND SPIN THE PROPELLERS AT HIGH
SPEED. TAKE ALL THE PRECAUTIONS NEEDED TO AVOID ANY POSSIBLE CONTACT WITH THEM, AS ROTATING
PROPELLERS CAN CAUSE SEVERE INJURIES.
I. Takeoff
Automatic takeoff of the UAV, with a smooth acceleration of the propellers’ spinning speed. The UAV will
automatically reach a hovering position, about 1 meter from the ground, joysticks should not be moved du-
ring the takeoff process. Motors and propellers must be able to rotate freely or your Loki MK2 will stop the
process to avoid damage; in this case, “Emergency” will appear on the bottom of the GCS screen.
The pilot can always decide to cancel the automatic hovering process and altitude gain by moving its joys-
ticks as soon as the UAV leaves the ground. In that case, it is advised to press the Hovering button ( “R”) as
soon as possible to achieve the best UAV performances. At least 1 hovering process is needed every time a
new battery is connected, as this allows your UAV’s computer to calibrate its sensors.
The takeoff procedure can be cancelled at any time by pressing the allocated button again.
II. Landing
CAUTION: THE BEST WAY TO ACHIEVE A PERFECT SMOOTH LANDING IS TO FIRST ASK FOR A HOVERING,
WAIT FOR SYNCRONIZATION, AND THEN PERFORM THE LANDING.
Automatic landing of the UAV, with a smooth deceleration of the propellers’ spinning speed.
The UAV will remain controllable during the landing, as to allow the pilot to adjust the landing area; the
whole procedure can be cancelled at any moment by pressing the takeoff landing button again.
