SJ46 AJ+ 213208ABA
25

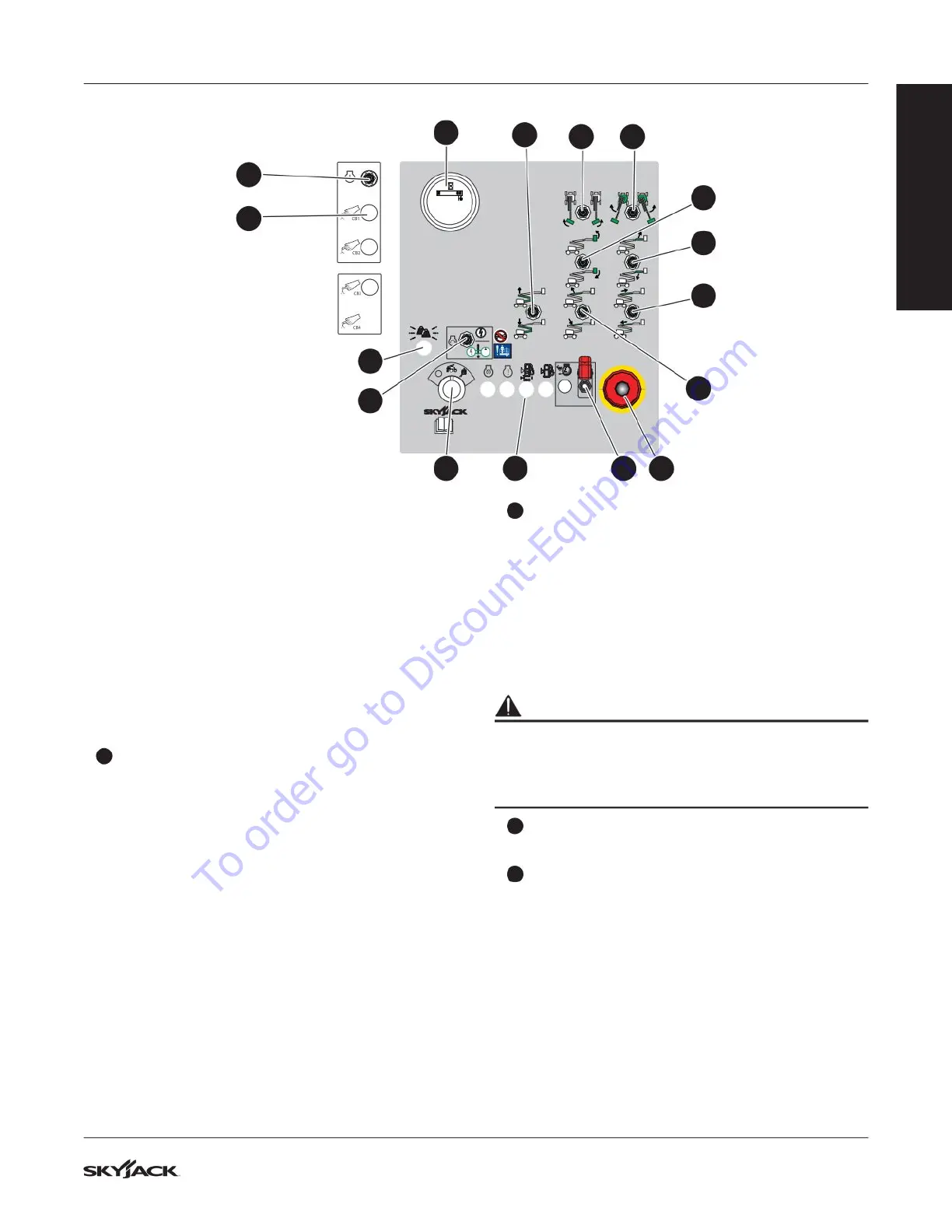

Control functions Section 3 – Familiarization
A. Glow plug (diesel engine): This light
illuminates until the glow plugs complete their
timed-cycle. When the light goes off, you can
start the engine.
B. Engine: This light shows a failure in the
engine control system.
C. Water-in fuel: This light shows the water
separator is full. Open the drain to release the
water. Engine damage can occur if ignored for
too much time.
D. Fuel: This light shows a low fuel level.
7
13
Off/base/platform key: With this three-way
switch, you can:
▪
Turn off the power to the MEWP controls.
▪
Energize the base controls.
▪
Energize the platform controls.
7
14
Start/function enable/emergency-power: In the
start position, this switch starts the engine. In the
function enable position, this switch lets the base
control functions operate. The engine speed
increases when the function enable position is
selected. In the emergency-power unit position,
with the engine off, this switch lets the base
control functions operate with the emergency-
power unit.
WARNING
Tip-over hazard. Do not operate the boom
functions if the platform capacity is more than the
rated platform capacity. If you do not obey, there is
a risk of death or serious injury.
7
15
Overload light: This red light shows an overload
status. Refer to Section 3.4-7.
7
16
Engine Diagnostic Switch: This switch enables
an error blink code for the engine control unit
(ECU).
TM
HOUR METER
QUARTZ
218362ABZZ
1
3 4
5
6
7
8
9
10
1113
14
15
16
2
12
