Section 3 – Familiarization Control functions
FAMILIARIZATION
7
16

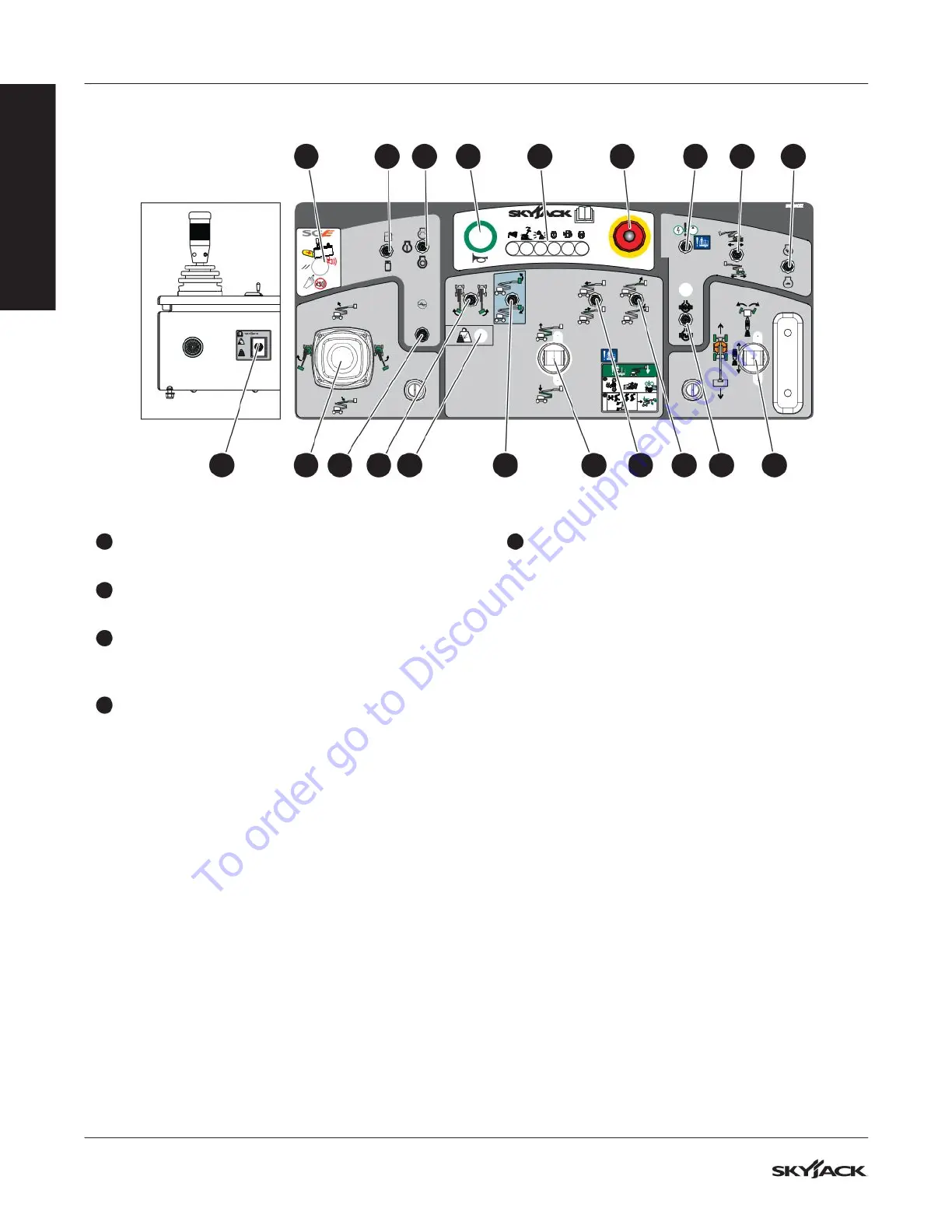

Platform rotation: This switch controls the left or
right rotation of the platform.
7
17
Generator (optional equipment): This switch
turns the generator on or off.
7
18
Boom/turret controller: This dual-axis lever
controls the raise or lower function of the main
boom, and the left or right rotation of the turret.
7
19
Capacity derate switch: This switch controls
the platform capacity. This switch also derates
the platform capacity to adapt to specified
attachments. Refer to Ssection 5.25, Ssection
5.26 for operation, Section 7 for specifications
and Section 8 for platform capacity label.
7
20
Capacity derate light: This light illuminates
when the capacity derate switch is selected. It
indicates the reduction in platform capacity. Refer
to Ssection 5.25, Ssection 5.26 for operation,
Section 7 for specifications and Section 8 for
platform capacity label.
