It is the responsibility of the operator to read, completely understand and follow all
instructions and warnings contained in this operating manual and on the MEWP.
FAMILIARIZATION
12. Glow Plug (Diesel) - This light illuminates until
glow plugs have completed their timed cycle.
When the lamp goes out, the engine is ready to
be started.
13. E m e r g e n c y S t o p B u t t o n - T h i s r e d
“mushroom-head” “ ” pushbutton disconnects
power to control circuit and shuts engine off.
14. Engine Diagnosis Switch - When held in either
direction, this switch “ ” enables an error blink
code for engine control unit (ECU).
15. Circuit Breakers - In the event of a power overload
or positive circuit grounding, the circuit breaker
pops out. Push breaker back in to reset.
2.2-8 Base Control Console (Continued)
5
13
10
7
4
2
1
8
9
11
15
14
12
6
3

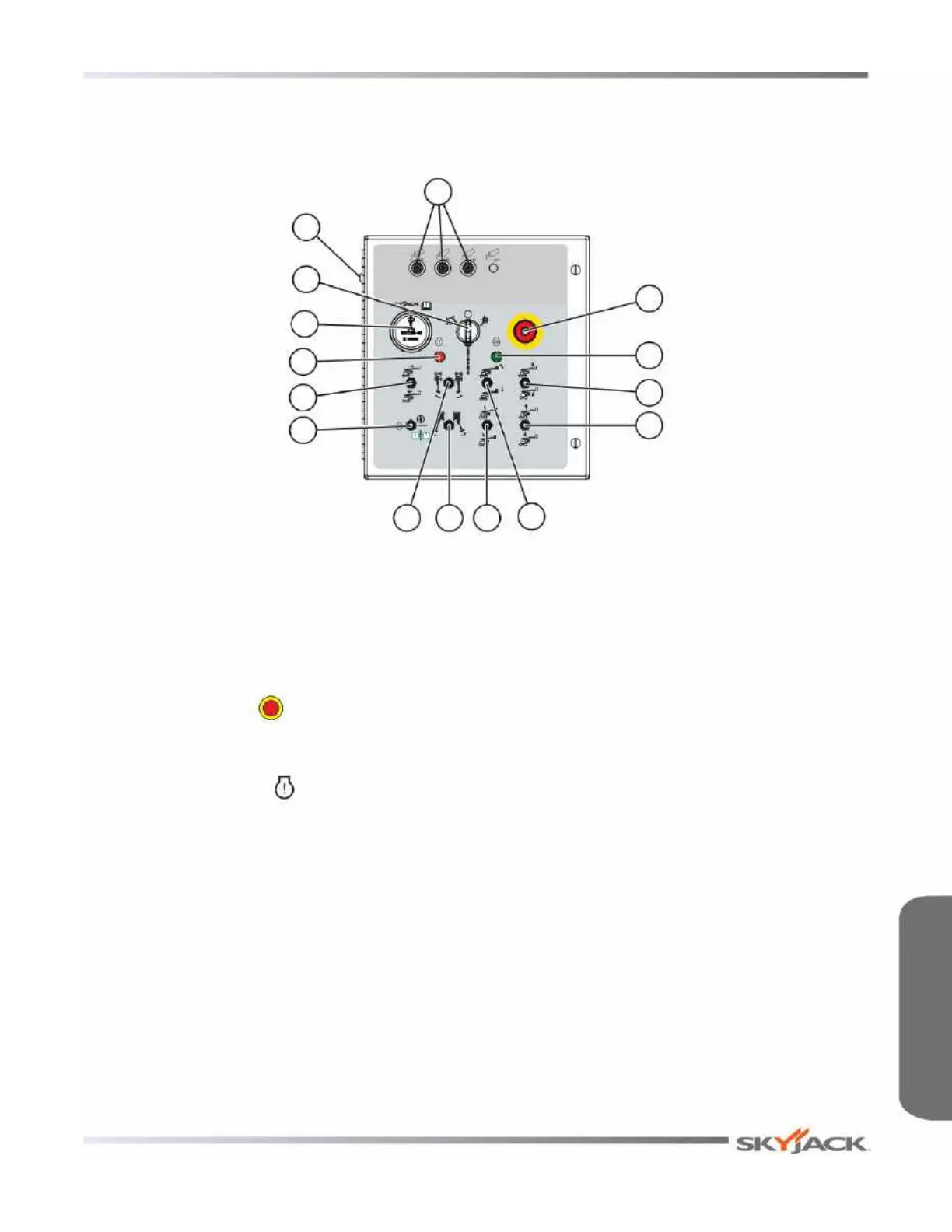

Figure 2-5. Base Control Console
