SJ46AJ SJ51AJ SJ63AJ
December 2007 Page 51
Section 3 - Operation Component Identification
3.5 Component Identification
The following descriptions are for identification,
explanation and locating purposes only.

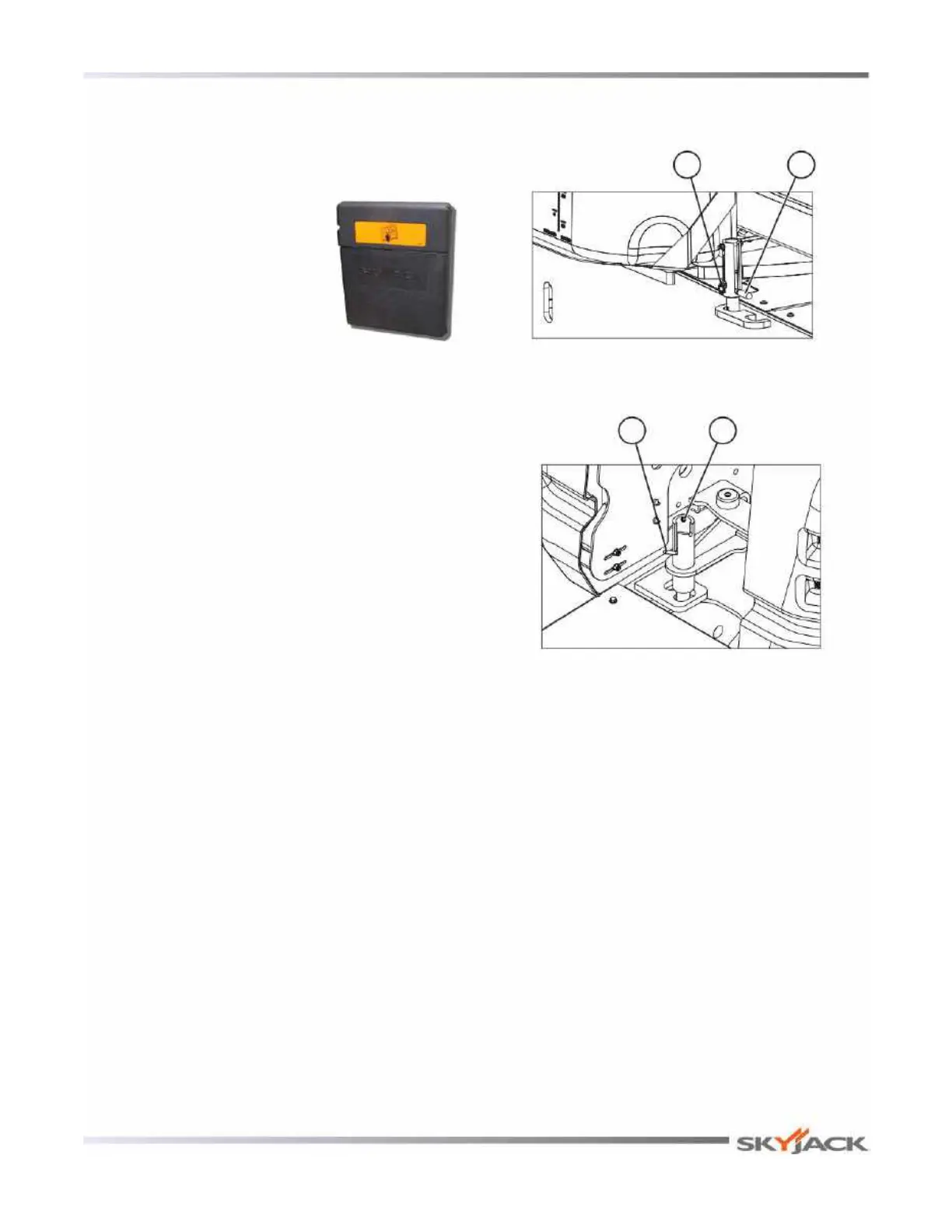

3.5-1 Manual Storage Box
This weather-resistant box is
mounted under the control console
on the platform. It contains the
ope rating man ual an d other
important documents. The operating
manual for this make and model of
MEWP must remain with the MEWP
and should be stored in this box.
3.5-2 All Motion Alarm (If Equipped)
This alarm produces an audible sound when any MEWP
function is activated. On MEWPs with certain options, a
ashing amber light will accompany this alarm.
3.5-3 AC Outlet on Platform (If Equipped)
This outlet is a source of AC power on the platform. The
outlet is located on the right side of platform control
console and the plug is located at the middle rear
section of the turret.
3.5-4 Turret Transportation Lock
This locking device is located in the turret.
1 2
Figure 3-1a. Turret Transportation Lock
(Models SJ46AJ & SJ51AJ)
1 2
Figure 3-1b. Turret Transportation Lock
(Model SJ63AJ)
1. Turret Transportation Lock Retaining Pin - This
retaining pin is used to hold transportation lock
in either locked or unlocked position.
2. Turret Transportation Lock - This locking device
is used to lock turret in place during shipping only.
Refer to Section 3.10-2 for procedure on how to lock
the turret.
