Page 48 December 2007
SJ46AJ SJ51AJ SJ63AJ
Major Components Section 3 - Operation
3.2a Major Components - SJ46AJ & SJ51AJ

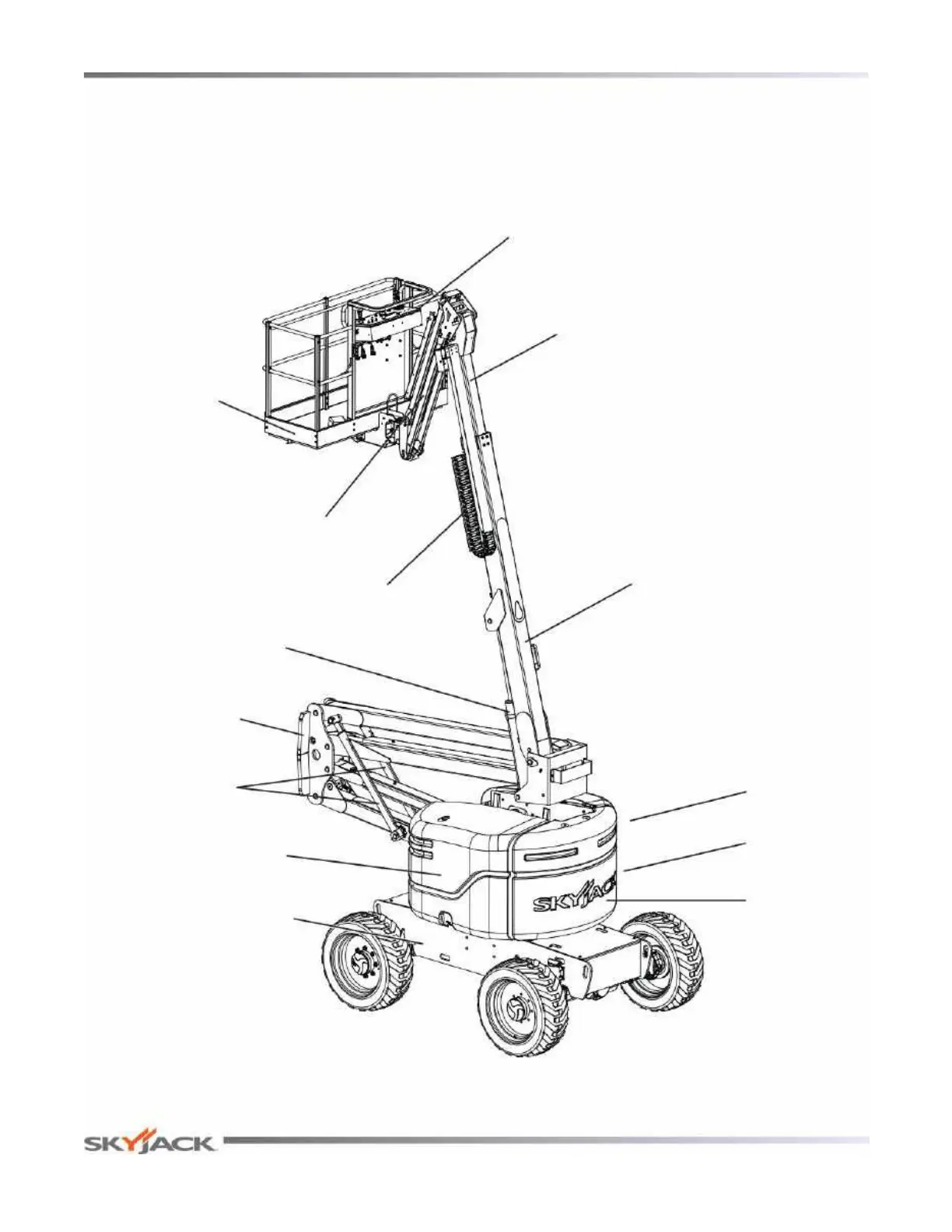

SKYJACK Articulating Boom - SJ46AJ
Platform
Jib
Control
Compartment
Engine
Compartment
Base
Fly Boom
Turret
Main Boom
Power Track
Platform Control Console
Base Control
Console
Lift Cylinder
Riser
Riser
Cylinders
