Page 64 December 2007
SJ46AJ SJ51AJ SJ63AJ
Chassis Tilt Section 3 - Operation
3.11 Chassis Tilt
This section guides the operator with regard to
recovering from an inclined position.
IMPORTANT
When the boom is raised or extended,
the MEWP must only be operated on rm
level surfaces.
WARNING
If MEWP becomes tilted causing the
alarm to sound, the platform must be fully
lowered and retracted immediately. Drive
functions are not available when the tilt
alarm is active.
3.11-1 Platform Uphill
If the MEWP becomes tilted with the platform uphill
(refer to Figure 3-4) follow the steps below to return to
a lowered and retracted position.
1. Lower main boom completely.
2. Lower riser completely.
3. Retract y boom completely.
4. Drive to a rm level surface.
3.11-2 Platform Downhill
If the MEWP becomes tilted with the platform downhill
(refer to Figure 3-5) follow the steps below to return to
a lowered and retracted position.
1. Retract y boom completely.
2. Lower riser completely.
3. Lower main boom completely.
4. Drive to a rm level surface.

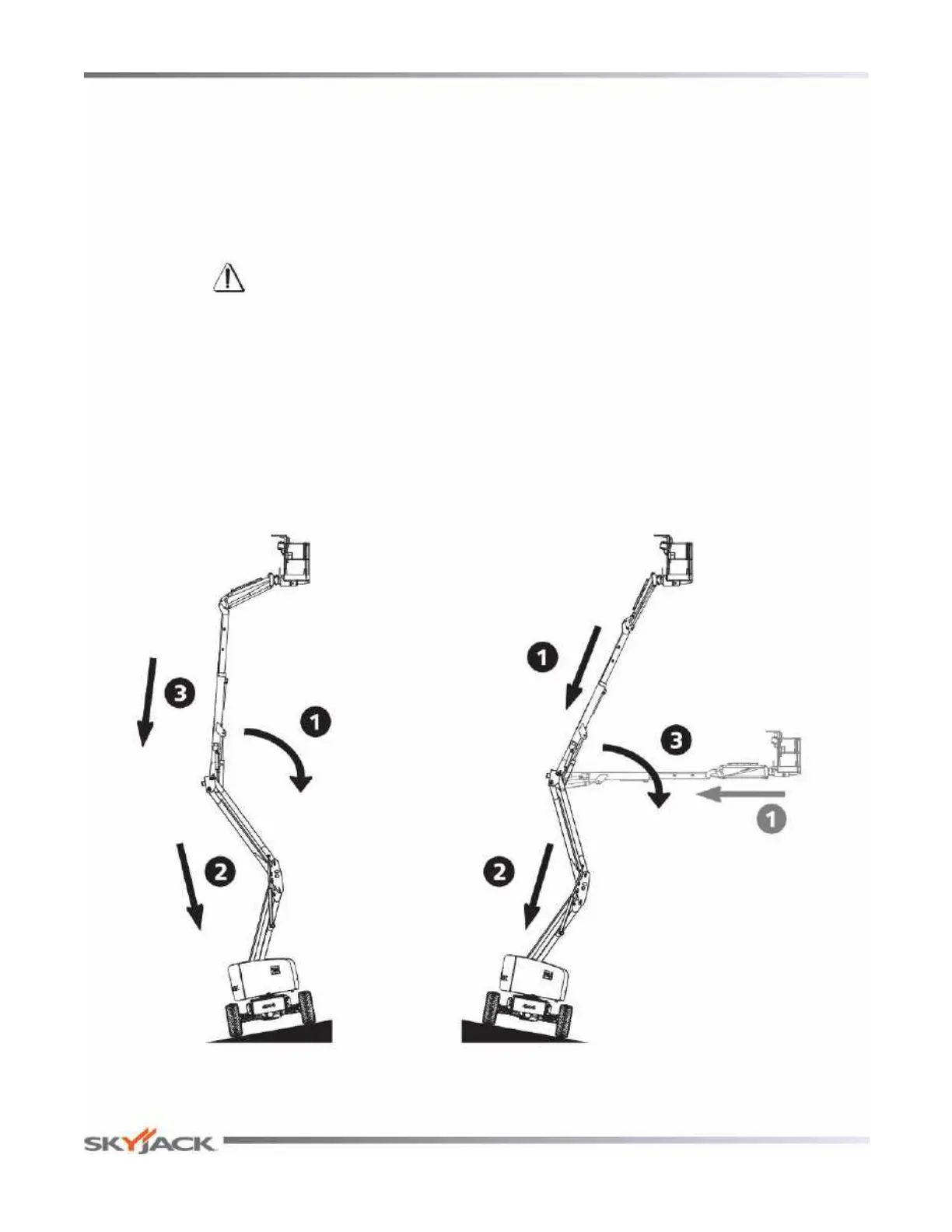

Figure 3-5. Platform DownhillFigure 3-4. Platform Uphill
