FAMILIARIZATION
• Test Driving Speed
1. Depress and hold footswitch.
2. Raise “ ” main boom slightly above
horizontal (approximately 5 degrees) and
then slowly move drive/steer controller to
full drive position.
Result: The maximum achievable drive
speed should be signicantly less than
stowed drive speed.
3. Lower boom to stowed position.
4. Extend “ ” y boom approximately
30 cm (12 inch.) and then slowly move
drive/steer controller to full drive position.
Result: The maximum achievable drive
speed should be signicantly less than
stowed drive speed.
5. Retract y boom.
6. Ra ise ri ser until hi ghest poi nt is
approximately 1.2 m (4 ft.) above the top
of the cowling.
Result: The maximum achievable drive
speed should be signicantly less than
stowed drive speed.
• Test Load Sensing System
1. Push in “ ” emergency stop button.
2. Pull out “ ” emergency stop button.
Result: After four seconds of time elapses,
the red light and audible alarm pulse two
times. This indicates the system is active
and there are no faults.
149432AA149432AA

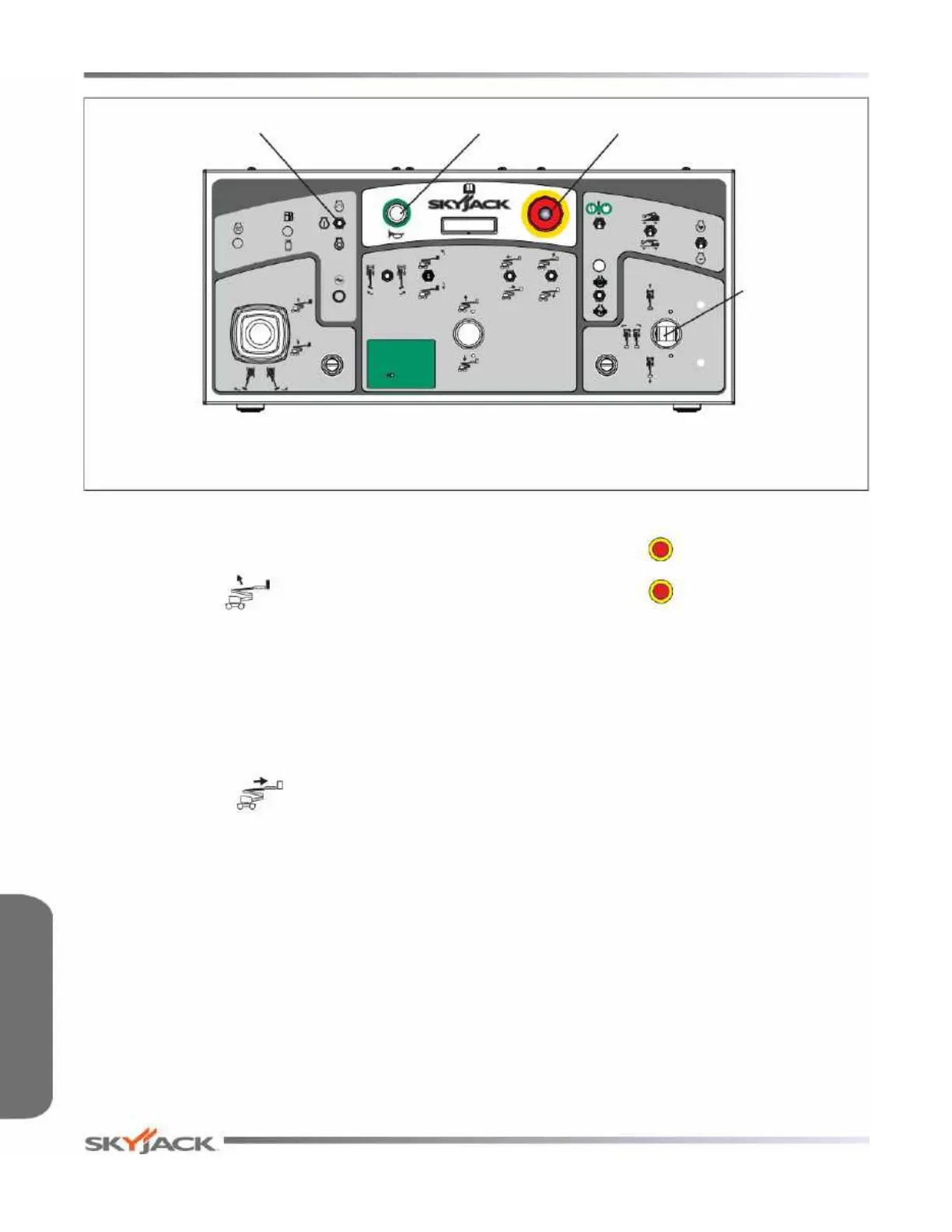

At Platform Controls:
1. Pull out emergency stop button.
2. Depress and hold foot switch.
3. Activate emergency pump switch.
4. Activate desired boom function.
EMERGENCY LOWERING
PROCEDURE
Drive/Steer
Controller
Horn
Engine Start/On/Off
Switch
Emergency
Stop
Function Tests Section 2 - Familiarization
