d) Push in black brake valve plunger (item 3).
1
3

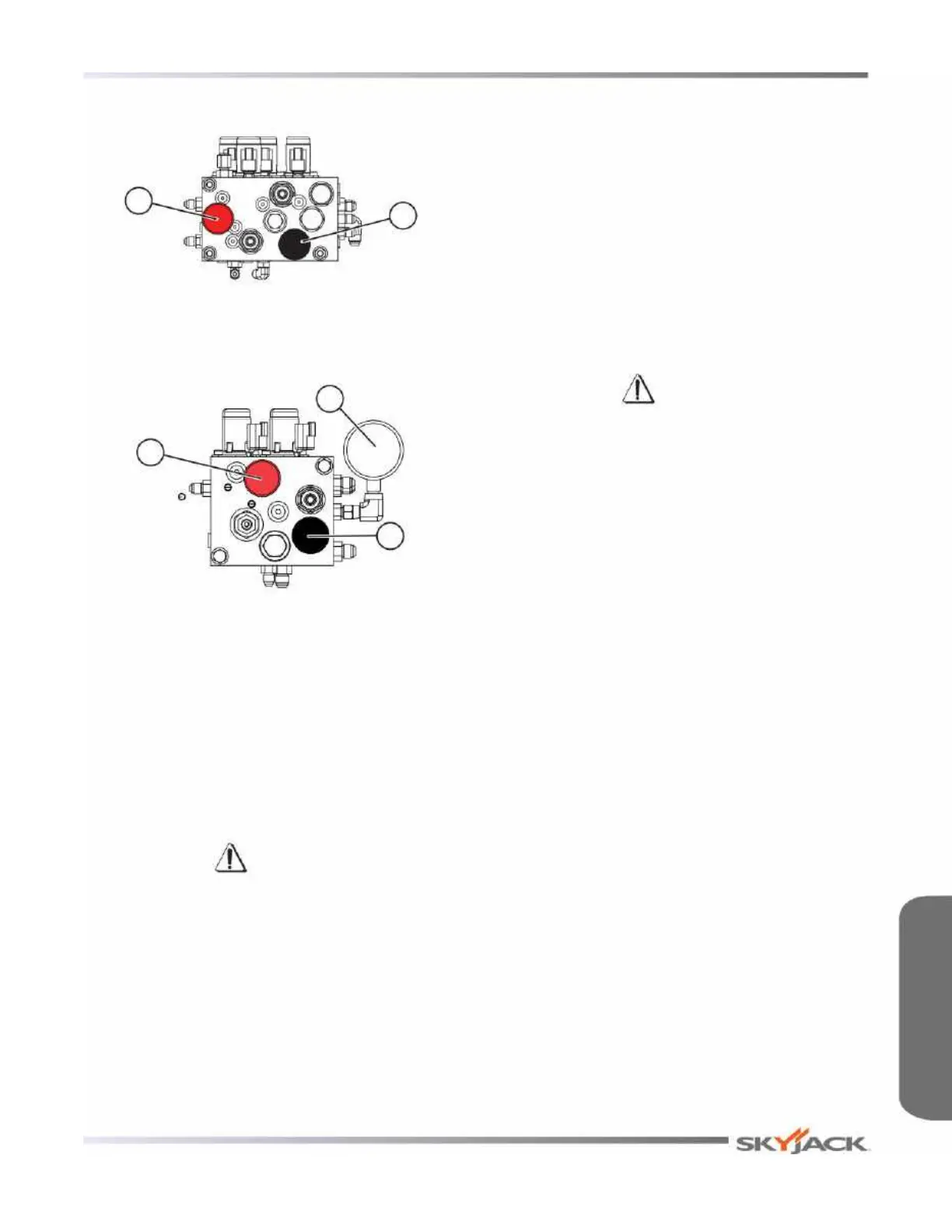

Figure 2-8a. Brake Manifold
(Models SJ46AJ & SJ51AJ)
1
3
2
Figure 2-8b. Brake Manifold
(Model SJ63AJ)
e) Actuate red hand pump (item 1) slowly by
moving knob in and out until pressure gauge
(item 2) (if equipped) registers 300 psi/21
bar. DO NOT exceed 350 psi/24 bar. Brake is
now released. If MEWP is not equipped with a
pressure gauge, refer to the Service manual
for instructions on how to install the pressure
gauge.
WARNING
Brakes must be applied immediately
after reaching desired location. Refer to
Section 2.5 on how to reengage brakes.
3. Remove wheel chocks or blocks, and then winch
or tow MEWP to desired location.
4. Position MEWP on a rm and level surface.
5. Chock or block wheels to prevent MEWP from
rolling.
6. Apply brakes by pulling out black brake auto reset
valve.
NOTE
Brakes automatically apply when platform
controls are engaged.
WARNING
Brakes must be applied immediately after
reaching desired location.
