Skyjack SJ63AJ User Manual

Page 62 December 2007
SJ46AJ SJ51AJ SJ63AJ
Loading/Unloading Section 3 - Operation
3.10-2 Locking the Turret
1. E n s u r e t h a t t u r r e t i s p o s i t i o n e d s o
t h a t t u r r e t t r a n s p o r t a t i o n l o c k t u b e
(item 1 - Figure 3-3a or Figure 3-3c) is aligned
into one of two turret locking points in the turret
rotation lock plate.
2. P u l l o u t t u r r e t l o c k r e t a i n i n g p i n
(item 2 - Figure 3-3a or Figure 3-3c). Lower turret
lock into locked position and reinsert turret lock
retaining pin.
3.10-3 Lifting
NOTE
When it becomes necessary to lift MEWP,
it is very important that lifting devices are
attached only to designated lifting points
(refer to Figure 3-3b or Figure 3-3d).
WARNING
Use chains of ample load capacity
sufcient to withstand MEWP weight.
1. Place boom in stowed position centered between
drive wheels. Lock turret using turret transportation
locking pin (refer to Section 3.10-2) into the
transport point (refer to Figure 3-3a or Figure 3-3c).
2. Turn main power disconnect switch to “ ” off
position.
3. Remove all loose items from MEWP.
4. Properly adjust rigging to prevent damage to
MEWP and so MEWP remains level.
Transport Point

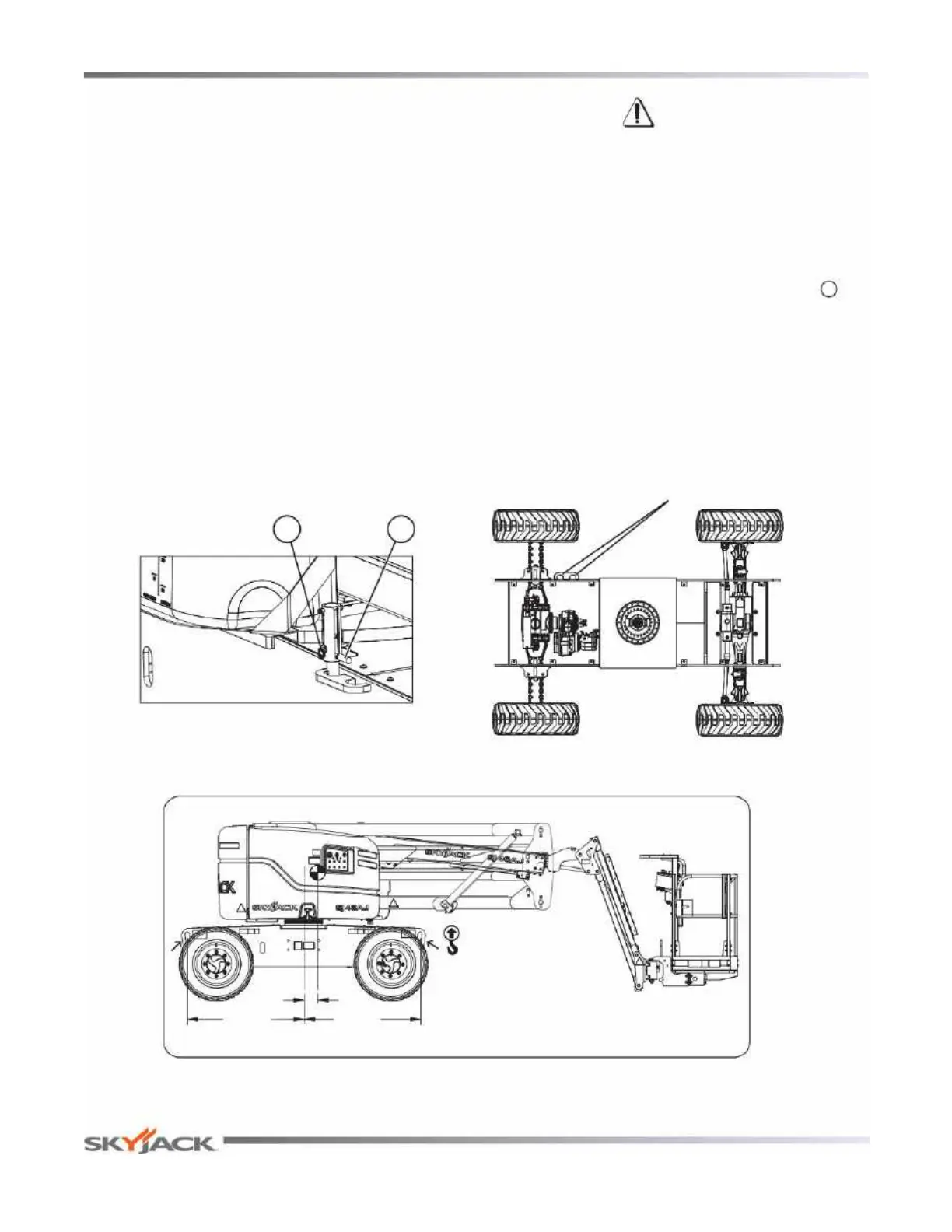

Figure 3-3a. Turret Transportation Lock & Locking Points (Models SJ46AJ & SJ51AJ)
Figure 3-3b. Lifting Points (Models SJ46AJ & SJ51AJ)
NOTE: Center of gravity varies with different options.
2 1
53” 53”
X
C
L
X = 8” (200 mm)
46AJ
X = 6” (150 mm)
51AJ
(1346 mm)(1346 mm)
