SJ 86T
December 2007 Page 15
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the MEWP.
FAMILIARIZATION
1a. Hourmeter - This gauge records accumulated
operating time of engine.
1b. Emergency Lowering Counter - This gauge
increments each time the emergency power unit
is activated while MEWP is in work mode and
overloaded.
2. Circuit Breakers - In the event of a power overload
or positive circuit grounding, the circuit breaker
pops out. Push breaker back in to reset.
3. Engine Diagnosis Switch - When held in either
direction, this switch “ ” enables an error blink
code for engine control unit (ECU).
4. Platform Rotation Switch - This switch controls
“ ” left or “ ” right rotation of platform.
5. Turret Rotation Switch - This switch controls “ ”
left or “ ” right rotation of turret.
6. Platform Leveling Override Switch - This switch
overrides automatic leveling of platform and
controls “ ” tilting up or “ ” tilting down
of platform.
7. Jib Up/Down Switch (If Equipped) - This switch
controls “ ” up or “ ” down movement
of jib.
8. Boom Extend/Retract Switch - This switch controls
“ ” extension or “ ” retraction of y boom.
9. Main Boom Raise/Lower Switch - This switch
controls “ ” raising or “ ” lowering of main
boom.
10. E m e r g e n c y S t o p B u t t o n - T h i s r e d
“mushroom-head” “ ” pushbutton disconnects
power to control circuit and shuts engine off.
2.2-11 Base Control Console
This control console is located in the panel mounted in the control compartment.
HOUR METER
QUARTZ
COUNTER
2 3
13
4
7
10
9
1112
8
6
5
14
15
16
1a
1b

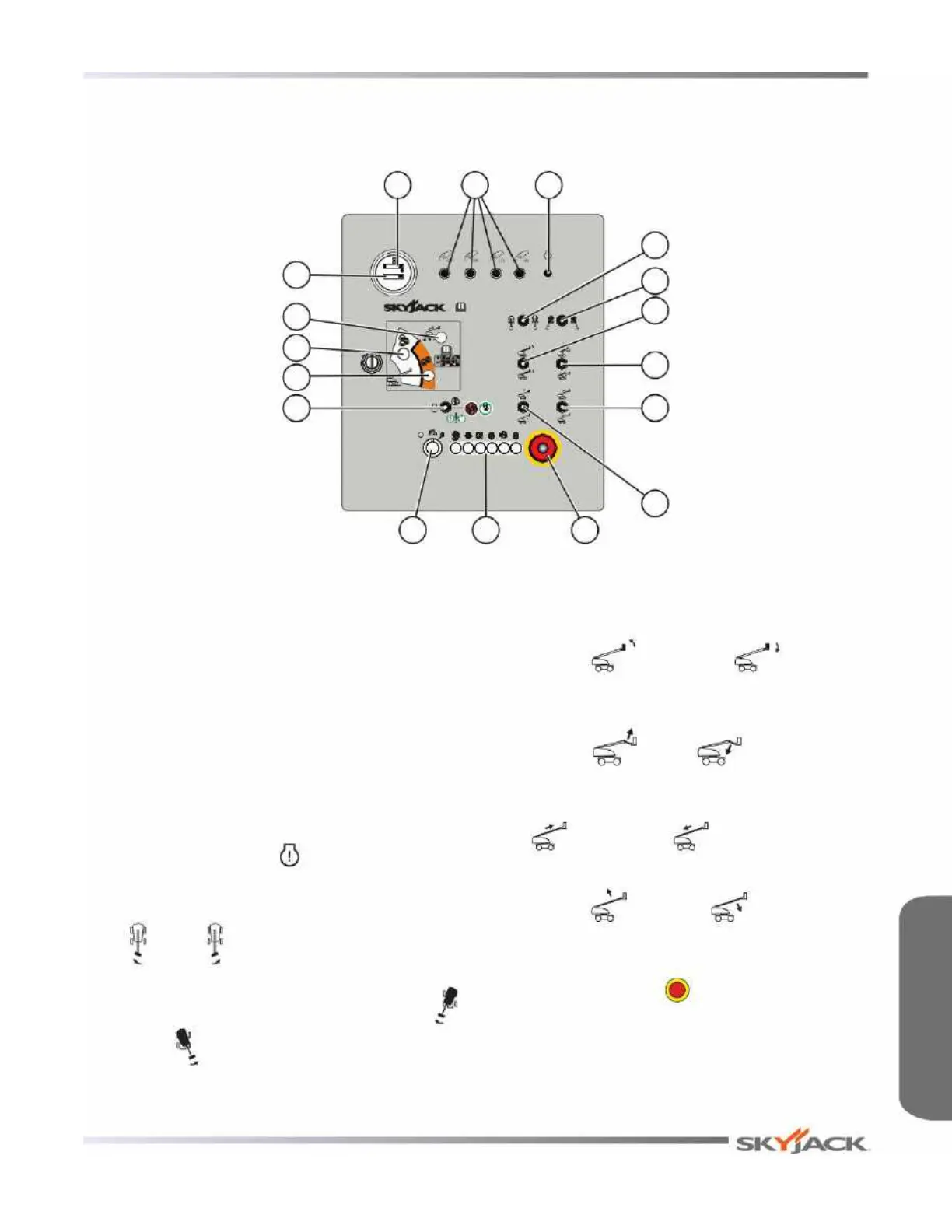

Figure 2-6. Base Control Console
Section 2 - Familiarization Control Functions
