Page 16 December 2007
SJ 86T
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the MEWP.
FAMILIARIZATION
11. Status Indicator Pilot Lights - These lights
indicate operational status and errors in any
function in the controls/engine.
A B C D E F
A. Water In Fuel Light - This light indicates water
separator is full. Open drain to release water.
Engine damage could occur if ignored for
excessive length of time.
B. Engine Oil Pressure - This light indicates low
engine oil pressure.
C. Engine Coolant Temperature/Level - This
light indicates overheating of engine coolant
and low level of engine coolant.
D. Engine - This light indicates failure in engine
control system.
E. Fuel - This light indicates low fuel level.
F. Glow Plug (Diesel) - This light illuminates
until glow plugs have completed their timed
cycle. When the lamp goes out, the engine is
ready to be started.
12. Off/Base/Platform Key Switch - This three-way
selector switch allows operator to “ ” turn off
power to MEWP or to activate either “ ” base
or “ ” platform control console.
13. Start/Function Enable/Emergency Power
Switch - This momentary switch, when held in
“ ” start position, starts engine. When held in
“ ” function enable position, allows base control
functions to operate. Engine speed increases
when selected. With engine off, and when held
in “ ” emergency power unit position,
allows base control functions to operate using
emergency power unit.
WARNING
Do not operate boom functions if platform
capacity is exceeded.
2.2-11 Base Control Console (Continued)
HOUR METER
QUARTZ
COUNTER
2 3
13
4
7
10
9
1112
8
6
5
14
15
16
1a
1b

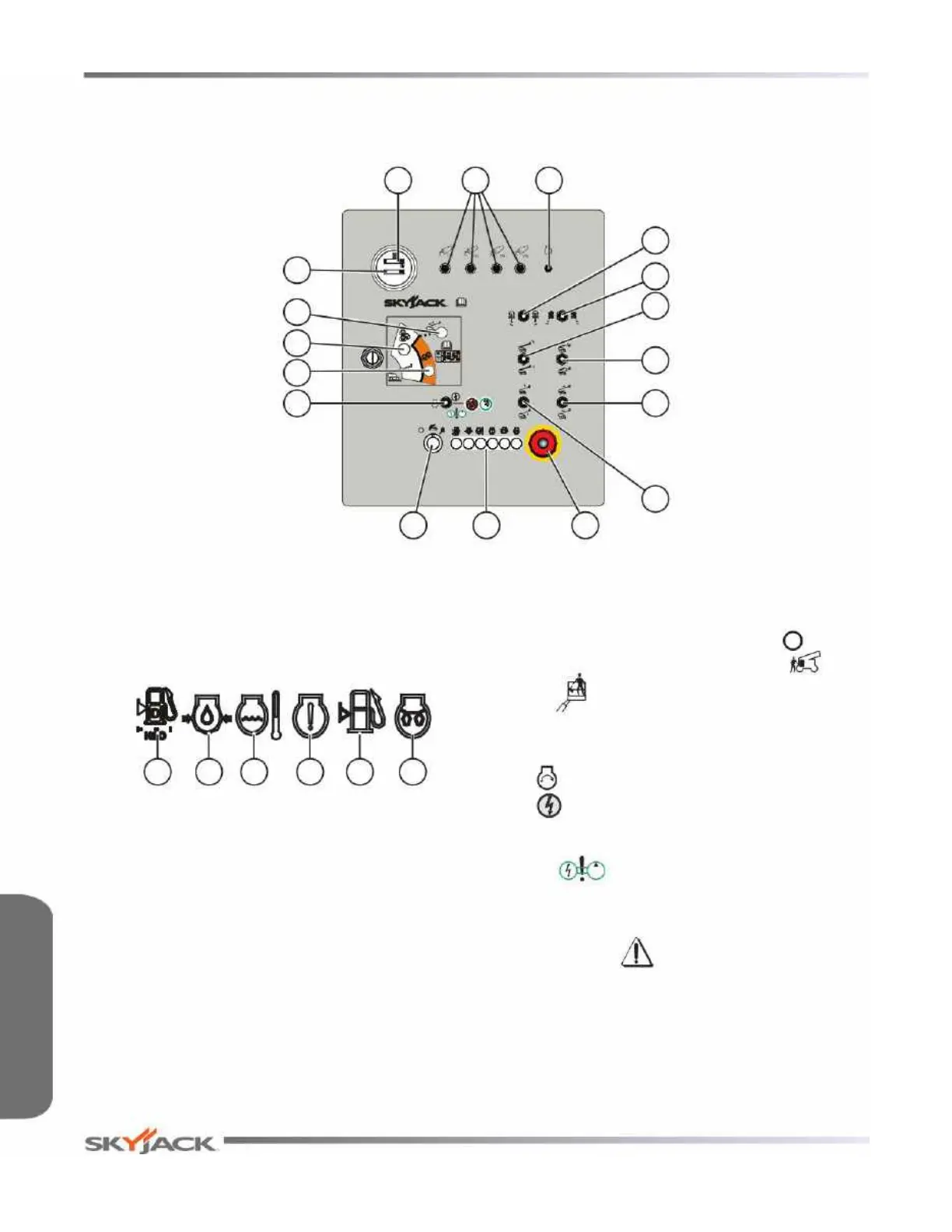

Figure 2-6. Base Control Console
Control Functions Section 2 - Familiarization
