SJ 86T
December 2007 Page 17
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the MEWP.
FAMILIARIZATION
14. Low Capacity Zone Indicator Light - Indicates
MEWP is in “low” platform capacity zone. Refer
to Table 4.5.
15. High Capacity Zone Indicator Light - Indicates
MEWP is in “high” platform capacity zone. Refer
to Table 4.5.
16. Capacity Zone Border Light - Indicates MEWP
is at limits of travel for high capacity zone. Lower
“ ” and “ ” extend functions are not
available.
2.2-11 Base Control Console (Continued)
HOUR METER
QUARTZ
COUNTER
2 3
13
4
7
10
9
1112
8
6
5
14
15
16
1a
1b

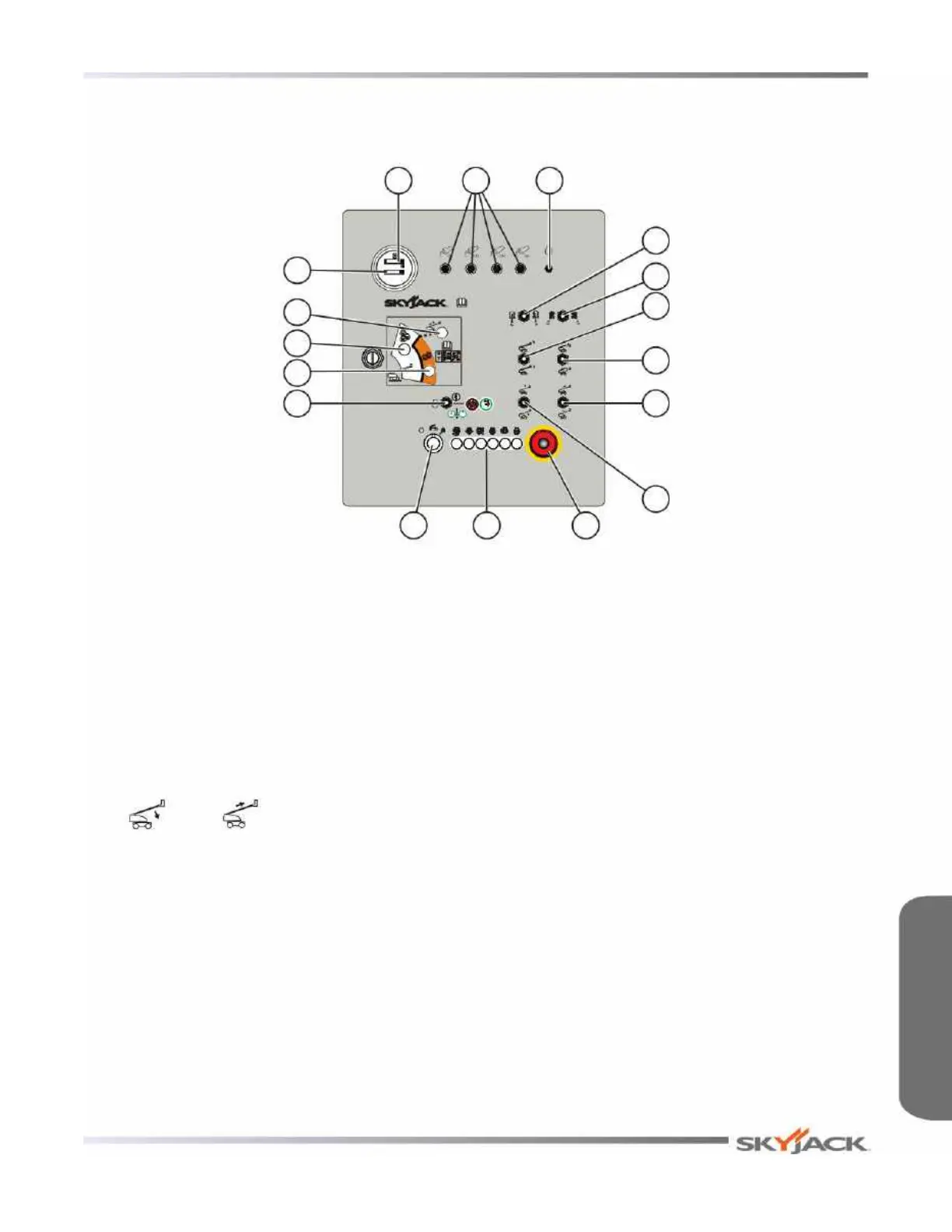

Figure 2-6. Base Control Console
Section 2 - Familiarization Control Functions
