Skyjack SJ86T User Manual

SJ 86T
December 2007 Page 19
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the MEWP.
FAMILIARIZATION
8. Torque Switch - This switch selects “ ” low
or “ ” high torque. Select “ ” low torque
(higher speed) or “ ” high torque (lower
speed). Select “ ” high torque when driving
on a slope.
9. Low/High Throttle Switch - This switch allows
selection between “ ” low and “ ” high
engine throttle speeds.
10. Drive/Steer Controller - This single-axis lever
controls driving “ ” forward or “ ” backward.
The rocker switch controls steering “ ” left or
“ ” right. Internal springs return it to neutral
when released.
11. Differential Lock Switch - This momentary switch,
when pushed forward and then released, engages
“ ” differential lock and turns differential light
on. When pulled backward and then released,
disengages “ ” differential lock and turns
differential light off.
12. Jib Up/Down Switch - This switch controls
“ ” up or “ ” down movement of jib.
13. Function Speed Adjuster Dial - This variable-
speed adjuster “ ” controls speed of y boom
extension/retraction, jib raising/lowering and
platform rotation movements. This is used with
switches 12, 14 and 19.
14. Boom Extend/Retract Switch - This switch
controls “ ” extension or “ ” retraction of
y boom.
15. Capacity Zone Border Light - Indicates MEWP
is at limits of travel for high capacity zone. Lower
“ ” and “ ” extend functions are not
available.
16. Platform Leveling Override Switch - This switch
overrides automatic leveling of platform and
controls “ ” tilting up or “ ” tilting down
of platform.
2.2-12 Platform Control Console (Continued)
4 6 7 8
1214 1019
93
1621
5
20
13
2
11
18 17 15
1

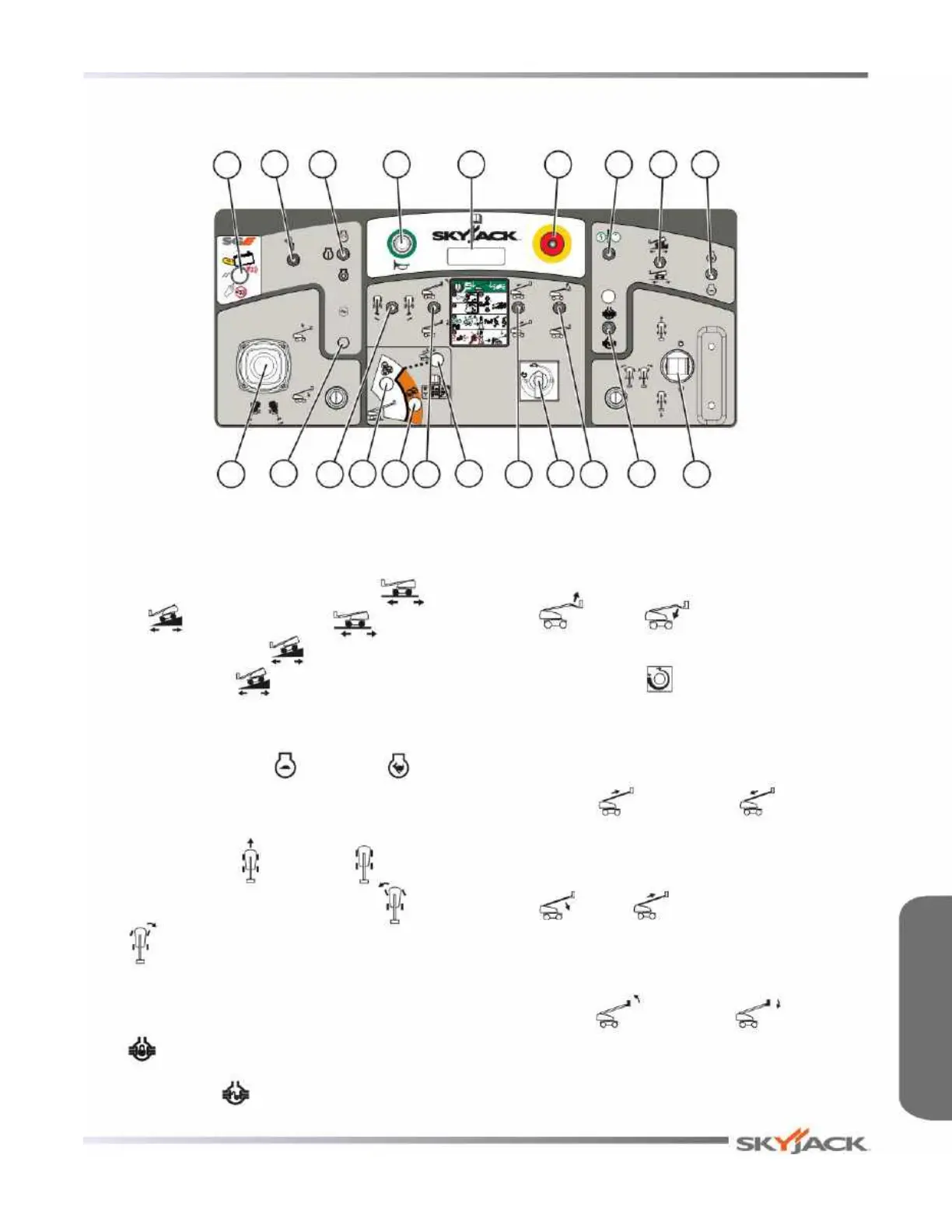

Figure 2-7. Platform Control Console
Section 2 - Familiarization Control Functions
