It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the MEWP.
FAMILIARIZATION
• Fuel Leaks
- Ensure that there are no fuel leaks.
DANGER
Engine fuels are combustible. Inspect
the MEWP in an open, well-ventilated
area away from heaters, sparks and
ames. Always have an approved re
extinguisher within easy reach.
- Ensure fuel tank, hoses and ttings show
no visible damage and no evidence of
fuel leakage.
2.3-7 Base
• Turret Transportation Lock
- Ensure turret transportation lock is
unlocked, there are no loose or missing
parts and there is no visible damage.
• Drive Axle
- Ensure drive axle is properly secured,
there are no loose or missing parts, all
ttings and hoses are properly tightened
and there is no evidence of hydraulic
leakage.
• Tie Rod
- Ensure there are no loose or missing
parts, tie rod end studs are locked and
there is no visible damage.
• Oscillating Cylinder Assembly
- Ensure oscillating cylinder assembly is
properly secured, there are no loose
or missing parts, all ttings and hoses
are properly tightened and there is no
evidence of hydraulic leakage.
NOTE
Oscillating axle is locked when MEWP is
in low speed. Refer to Figure 3-13 - Axle
Oscillation Diagram.
• Wheel/Tire Assembly
The MEWP is equipped with foam-lled tires.
Tire and/or wheel failure could result in an
MEWP tip over. Component damage may
also result if problems are not discovered and
repaired in a timely fashion.
- Check all tire treads and sidewalls for cuts,
cracks, punctures and unusual wear.
- Check each wheel for damage and cracked
welds.
- Check each lug nut for proper torque to
ensure none are loose.

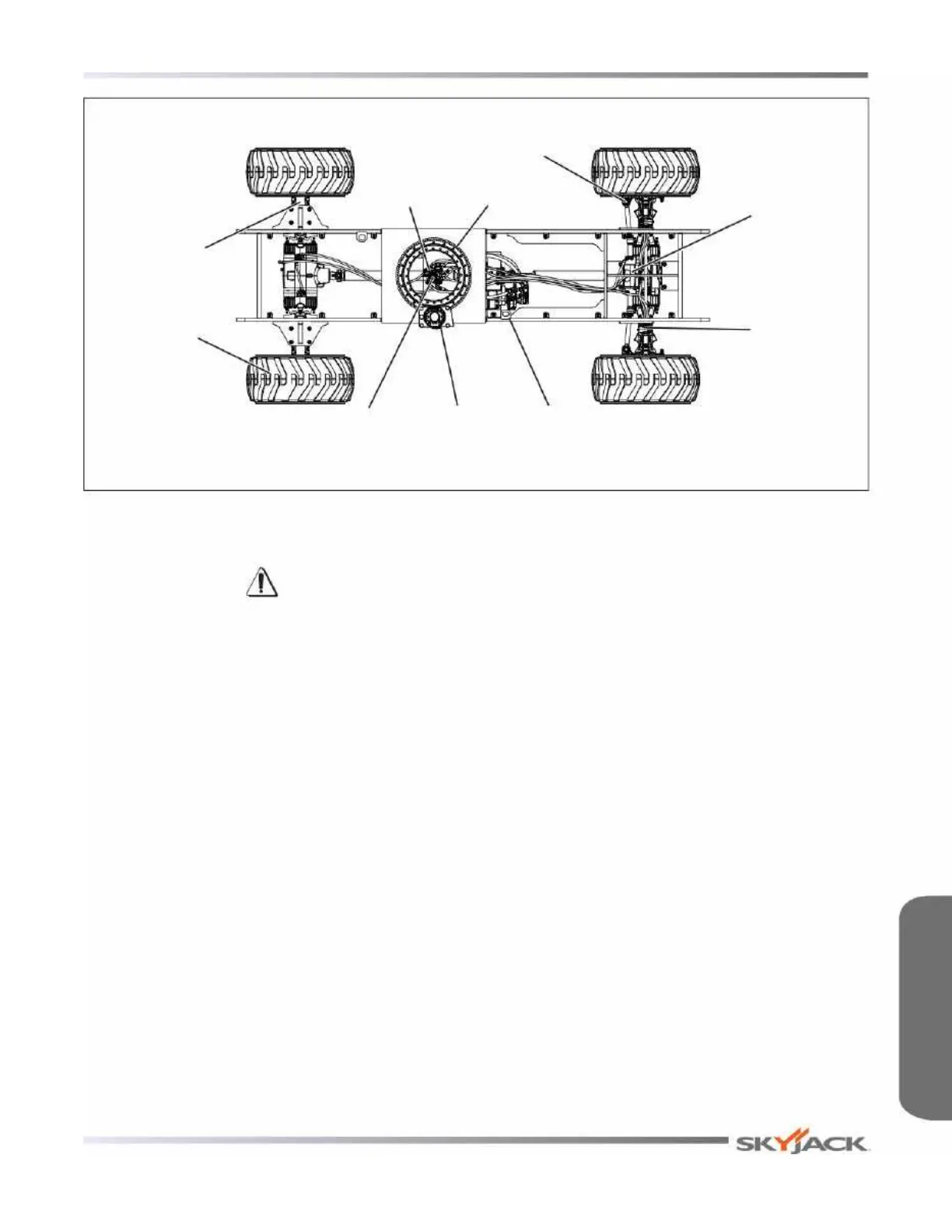

Base
Wheel/Tire
Assembly
Tie Rod
Steer Cylinder
Assembly
Oscillating
Cylinder
Assembly
Turret Rotation
Gear
Rotary
Manifold
Limit Switch
Drive Axle
Turret Transportation
Lock
Swing Drive
Motor
