SJ 86T
December 2007 Page 29
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the MEWP.
FAMILIARIZATION
• Cables
- Ensure there are no loose or missing parts
with no signs of visible damage.
- Ensure that nuts are not loose and are
locked together.
- Ensure that there are no gaps between
cable springs (see Figure 2-8). If there
are gaps, tighten nuts to remove gaps
and then add another half turn more.
With Gaps No Gaps

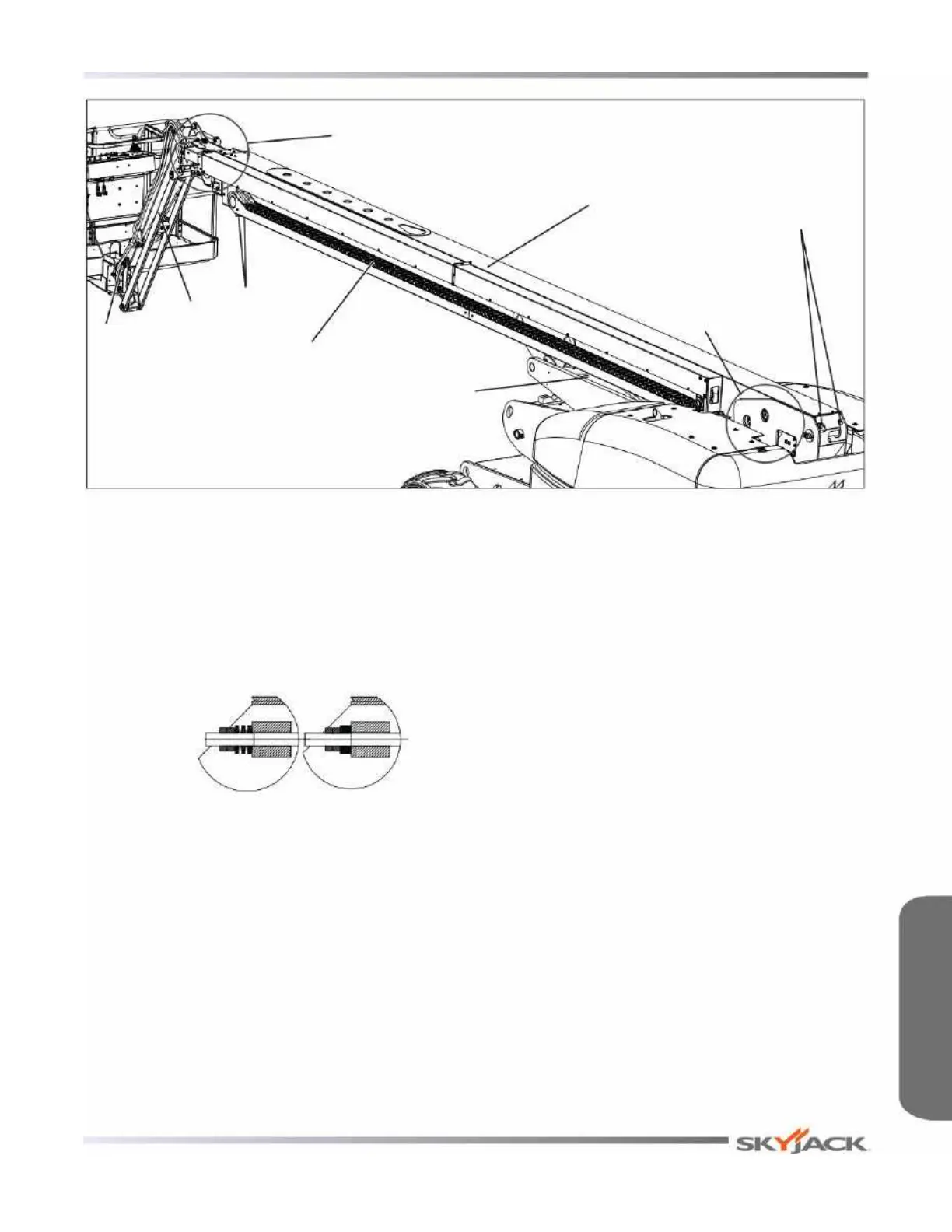

Figure 2-8. Cable Springs
Rotary Actuator
Jib
Boom
E-Chain
Lift Cylinder
Wear Pad
Wear Pad
Cable Springs
Cable Springs
