It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the MEWP.
FAMILIARIZATION
• Test Base Capacity Zone Indicator Lights
NOTE
To perform this function test, ensure
there is sufcient space to fully raise and
extend boom.
NOTE
Ensure boom is in stowed position to
begin this function test.
1. Push in “ ” emergency stop button.
2. Pull out “ ” emergency stop button.
Result: Capacity zone border light should
illuminate for 1 second and then turn off.
High capacity zone indicator light should
illuminate.
3. Extend “ ” boom until high capacity
zone indicator light turns off.
Result: Low capacity zone indicator light
should illuminate.
4. While boom is extended, ensure there are
no visible cracks in welds or structure and
there are no signs of deformation.
5. Fully retract and lower boom.
HOUR METER
QUARTZ
COUNTER

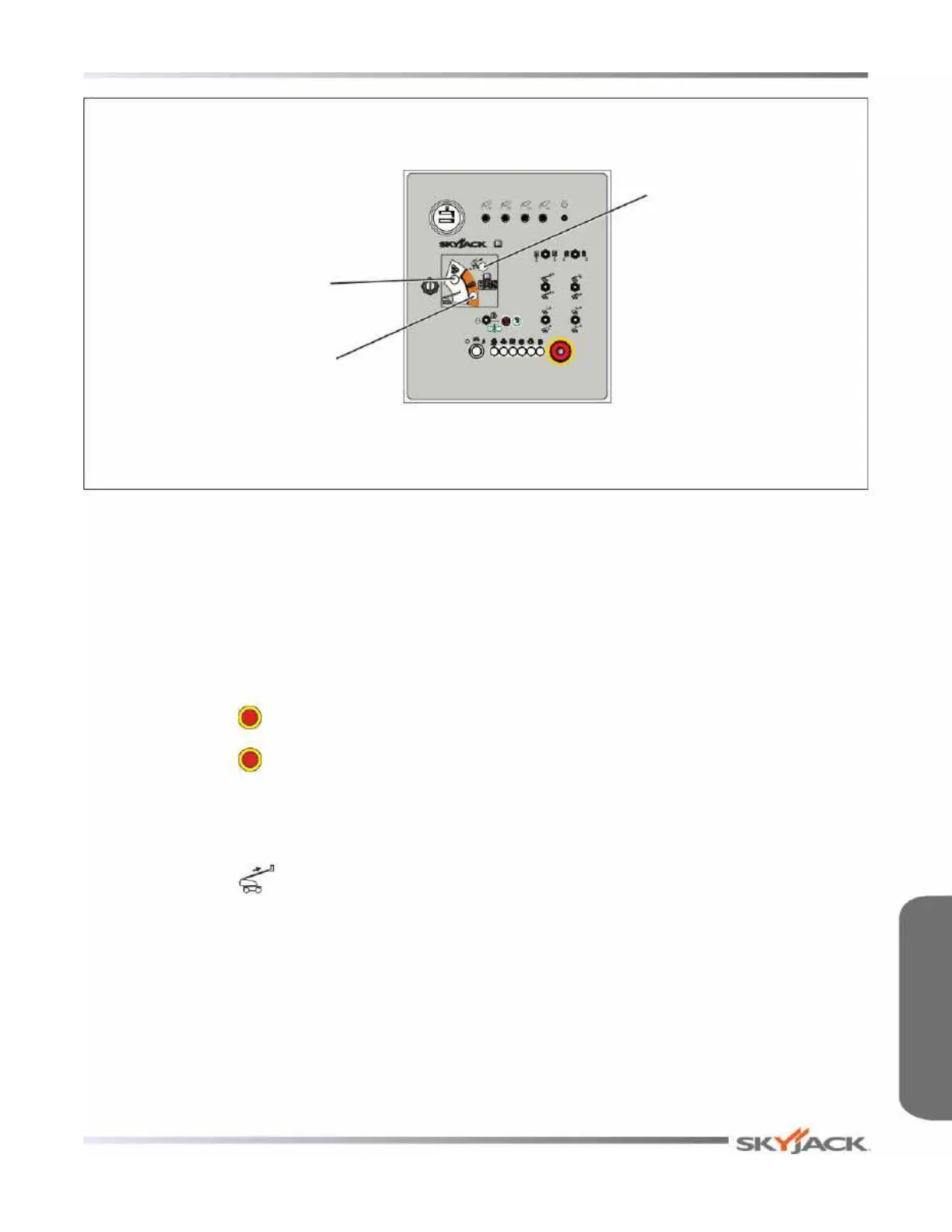

Capacity Zone Border
Light
High Capacity Zone
Indicator Light
Low Capacity Zone
Indicator Light
