It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the MEWP.
FAMILIARIZATION
WARNING
DO NOT operate any control on platform
control console without proper fall
protection secured to designated location
in platform. Failure to avoid this hazard
could result in death or serious injury!
WARNING
Ensure that there are no personnel or
obstructions in test area and that there is
sufcient room for boom to swing.
• Test Load Sensing System
1. Push in “ ” emergency stop button.
2. Pull out “ ” emergency stop button.
Result: After four seconds of time elapses,
the red light and audible alarm pulse two
times. This indicates the system is active
and there are no faults.
• Test Footswitch
1. Ensure “ ” emergency stop button is
pulled out.
2. Ensure engine start/on/off switch is in
“ ” on position.
3. Do not start engine.
4. Select generator on/off switch to off
position (if equipped).
5. Depress and hold footswitch and attempt
to start engine by selecting “ ” start
position from engine start/on/off switch.
Result: Engine should not start.
6. Without depressing footswitch, try to start
engine.
Result: Engine should start.
7. With engine running and without
depressing footswitch, test each boom
and platform function.
Result: MEWP functions should not
operate.
NOTE
A 15-second anti-tiedown feature
deactivates footswitch when operator
depresses it for 15 seconds without
activating any function.

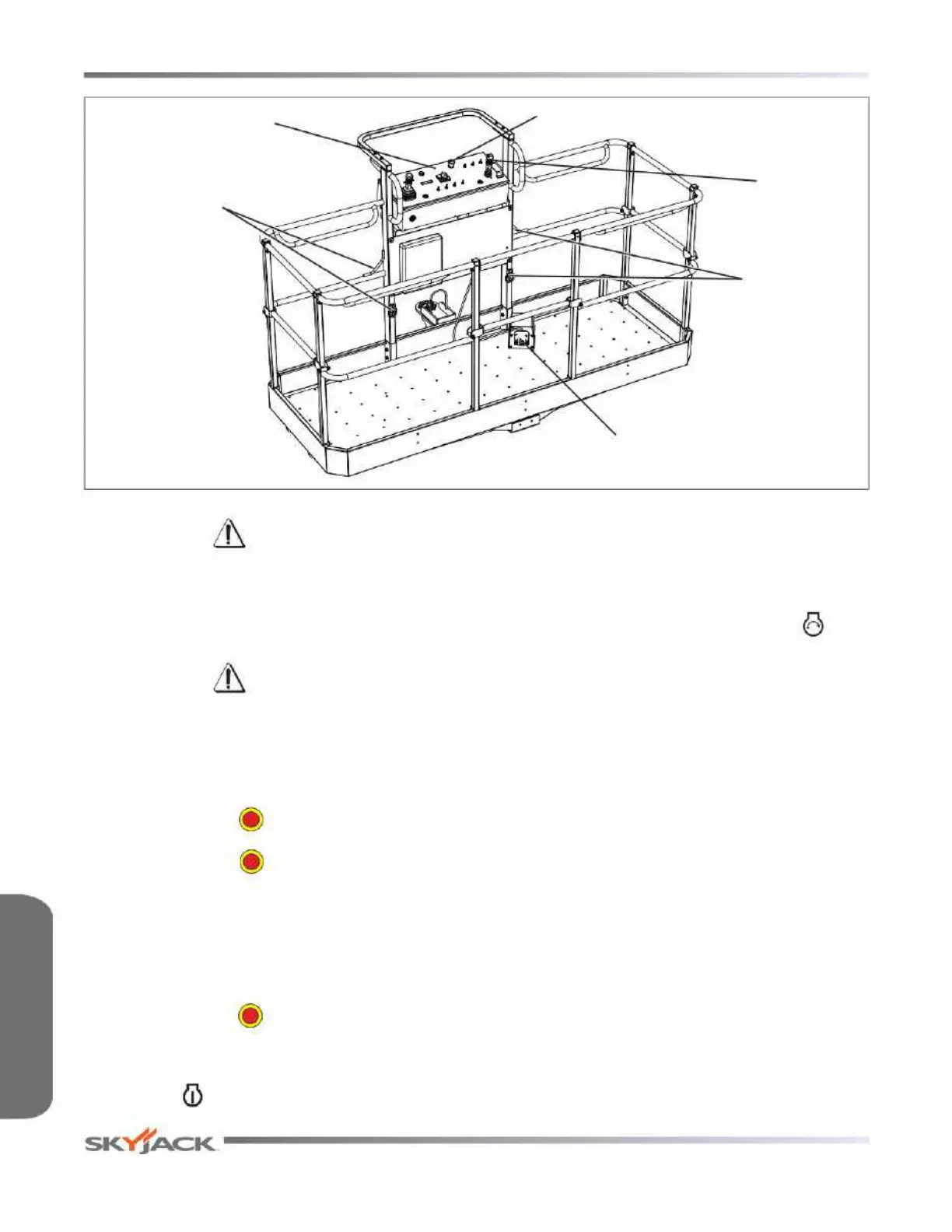

Platform Control
Console
Drive/Steer
Controller
Fall Protection
Anchorage
Fall Protection
Anchorage
Emergency Stop
Footswitch
