SJ 86T
December 2007 Page 37
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the MEWP.
FAMILIARIZATION
• Test Platform Capacity Zone Indicator
Lights
NOTE
To perform this function test, ensure
there is sufcient space to fully raise and
extend boom.
NOTE
Ensure boom is in stowed position to
begin this function test.
1. Push in “ ” emergency stop button.
2. Pull out “ ” emergency stop button.
Result: Capacity zone border light should
illuminate for 1 second and then turn off.
High capacity zone indicator light should
illuminate.
3. Depress and hold footswitch and extend
“ ” boom until high capacity zone
indicator light turns off.
Result: Low capacity zone indicator light
should illuminate.
4. Depress and hold footswitch and fully
retract and lower boom.

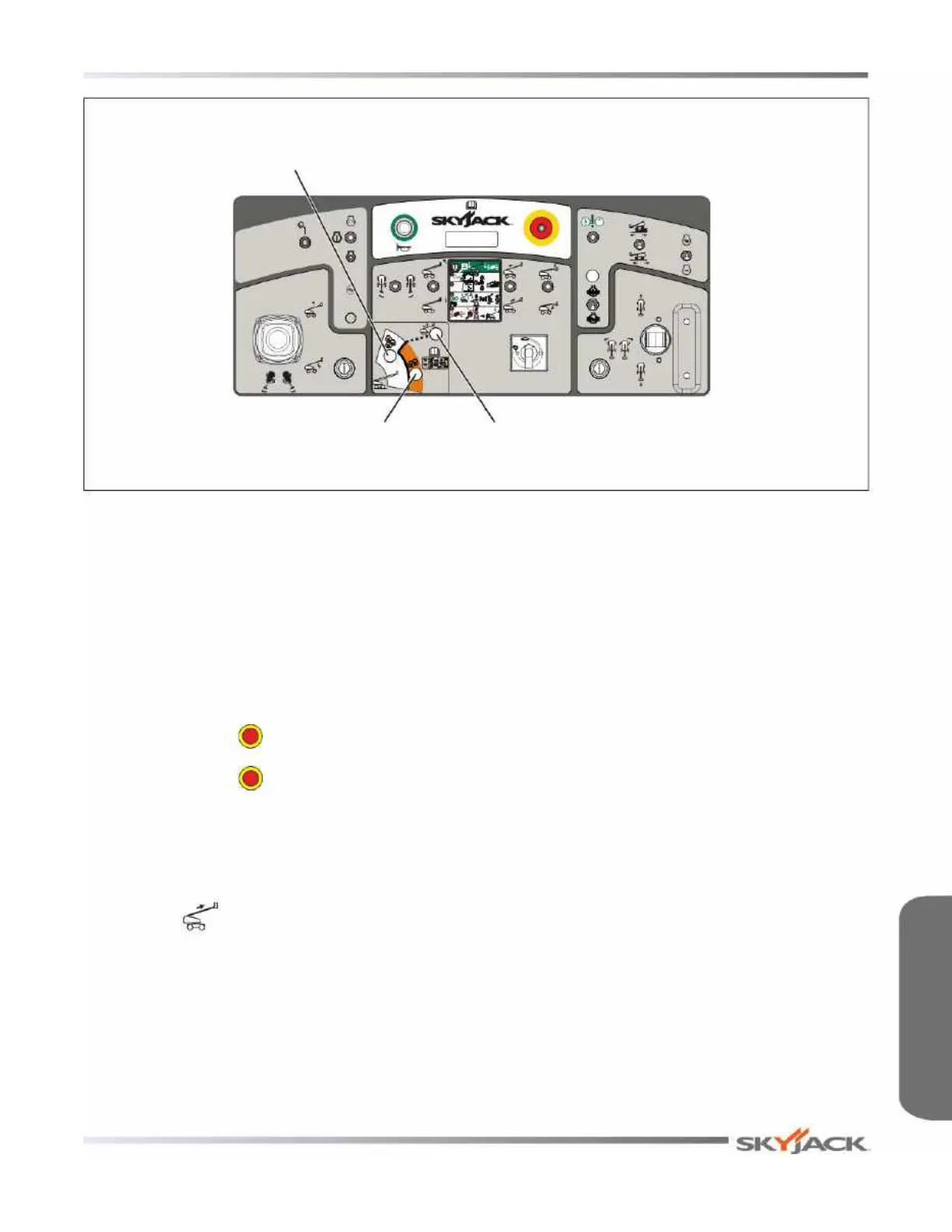

High Capacity Zone Indicator
Light
Low Capacity Zone
Indicator Light
Capacity Zone Border
Light
Section 2 - Familiarization Function Tests
