Skyjack SJ86T User Manual

Page 58 December 2007
SJ 86T
Start Operation Section 3 - Operation

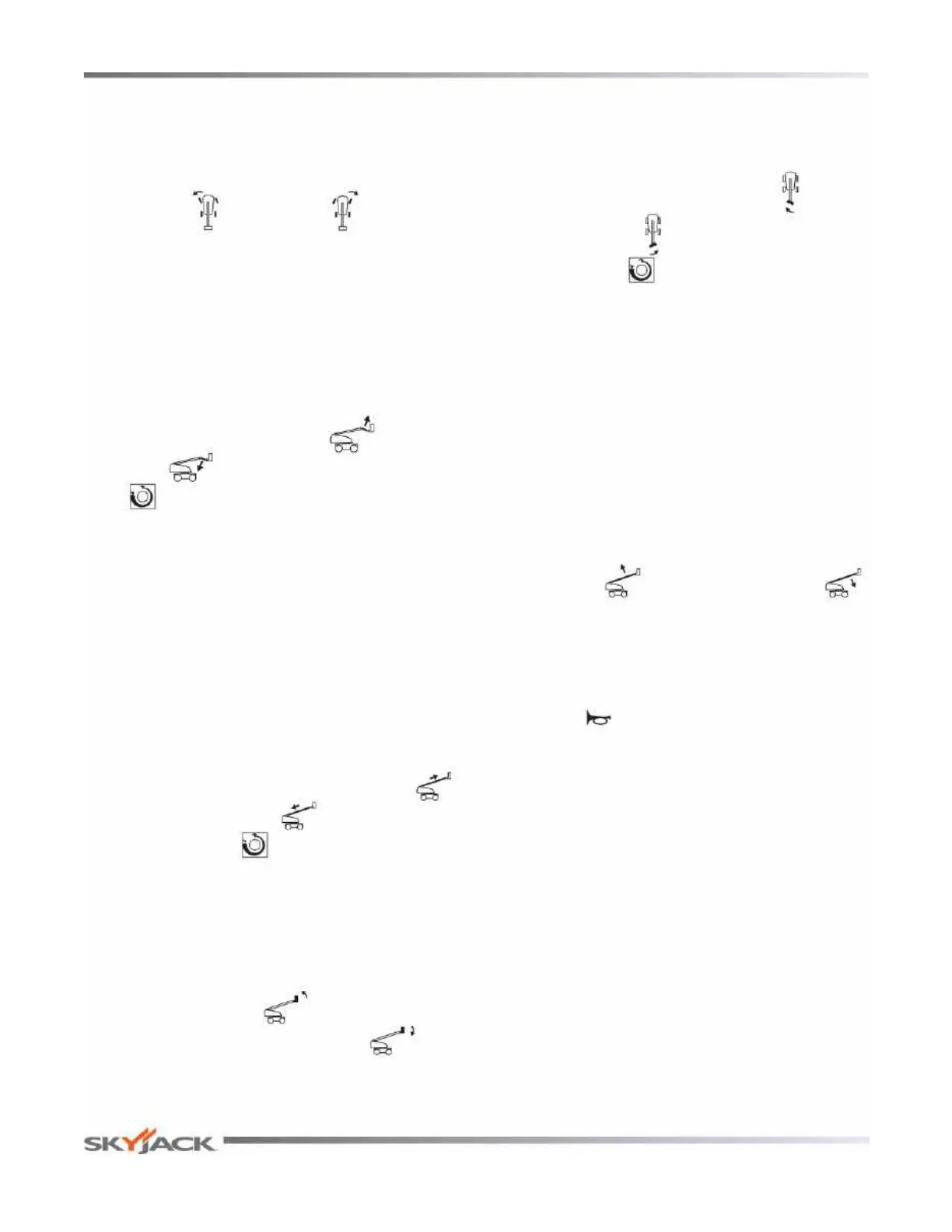

3.7-11 To Steer Using Platform Control Console
1. Depress and hold footswitch.
2. Press rocker on top of drive/steer controller in this
direction “ ” to steer left or “ ” to steer right.
NOTE
Driving and steering may be active at the
same time.
3.7-12 To Move Jib Up and Down Using
Platform Control Console
1. Depress and hold footswitch.
2. On jib up/down switch, select “ ” to move jib
up or “ ” to move jib down. Vary speed with
“ ” boom speed adjuster dial. Release switch
to stop.
3.7-13 To Extend or Retract Fly Boom Using
Platform Control Console
NOTE
Maximum platform capacity varies with
boom position. Indicator lights on the base
and platform control consoles indicate
whether platform is in the “high” or “low”
capacity zone.
1. Depress and hold footswitch.
2. On y boom extend/retract switch, select “ ”
to extend y boom or “ ” to retract y boom.
Vary speed with “ ” boom speed adjuster dial.
Release switch to stop.
3.7-14 To Level Platform Using Platform Control
Console
1. Depress and hold footswitch.
2. On platform leveling override switch, move switch
to upward position “ ” to tilt platform up or
move switch to downward position “ ” to tilt
platform down. Release switch to stop.
3.7-15 To Rotate Platform Using Platform
Control Console
1. Depress and hold footswitch.
2. On platform rotation switch, select “ ” to rotate
platform left or “ ” to rotate platform right. Vary
speed with “ ” boom speed adjuster dial.
Release switch to stop.
3.7-16 To Raise or Lower Main Boom Using
Platform Control Console
NOTE
Maximum platform capacity varies with
boom position. Indicator lights on the base
and platform control consoles indicate
whether platform is in the “high” or “low”
capacity zone.
1. Depress and hold footswitch.
2. Push and hold boom/turret controller in this
direction “ ” to raise main boom or “ ”
to lower main boom.
3. Release controller handle to stop.
3.7-17 To Sound Horn
1. Press “ ” horn pushbutton to sound horn.
Release pushbutton to stop sounding horn.
