August 2007
SKYJACK, Page 44
Section 2 - Labels
SJM & SJII Series
10994AA

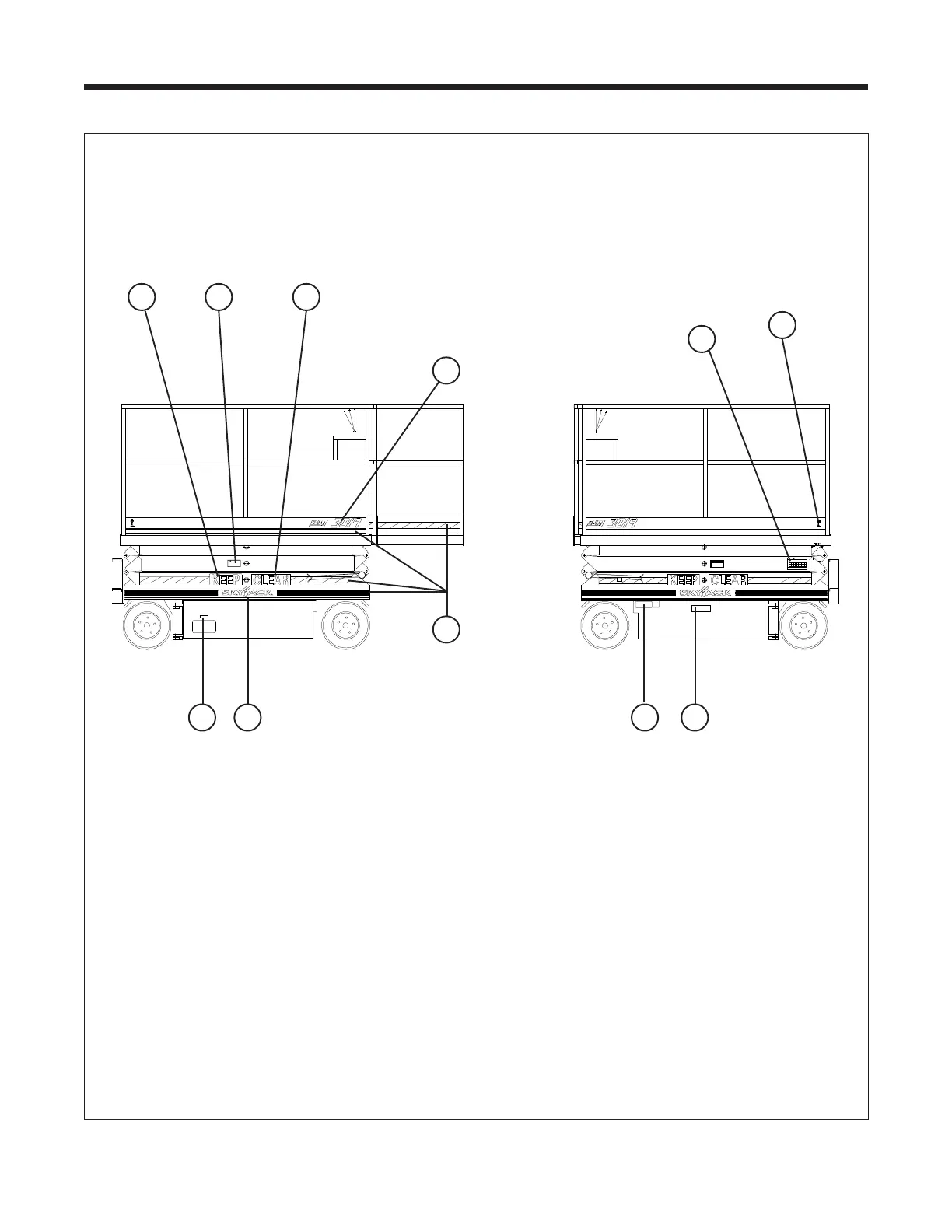

Labels And Nameplates Models 3015 & 3219
1
LABEL, Skyjack Small, Blue
2
LABEL, Keep
3
LABEL, Caution Lift
4
LABEL, Clear
5
LABEL, Model Designation sjll-sides.plt
6
LABEL, Battery Charger Connection
7
LABEL, Emergency Lowering
8
LABEL, T
ape Assembly
9
LABEL, Emergency Battery Disconnect
Switch
1
0
LABEL, Annual Inspection
1
1
LABEL, Skyjack Logo
1
5
2
4
3
8
6
7
9
10
11
42
44
