SKYJACK, Page 9
August 2007
Section 1 - About Your Aerial Platform
SJM & SJII Series
SKYJACK SJM & SJll Series aerial Platform
Operator’s
Control Box
Manual
Storage Box
Lifting
Mechanism

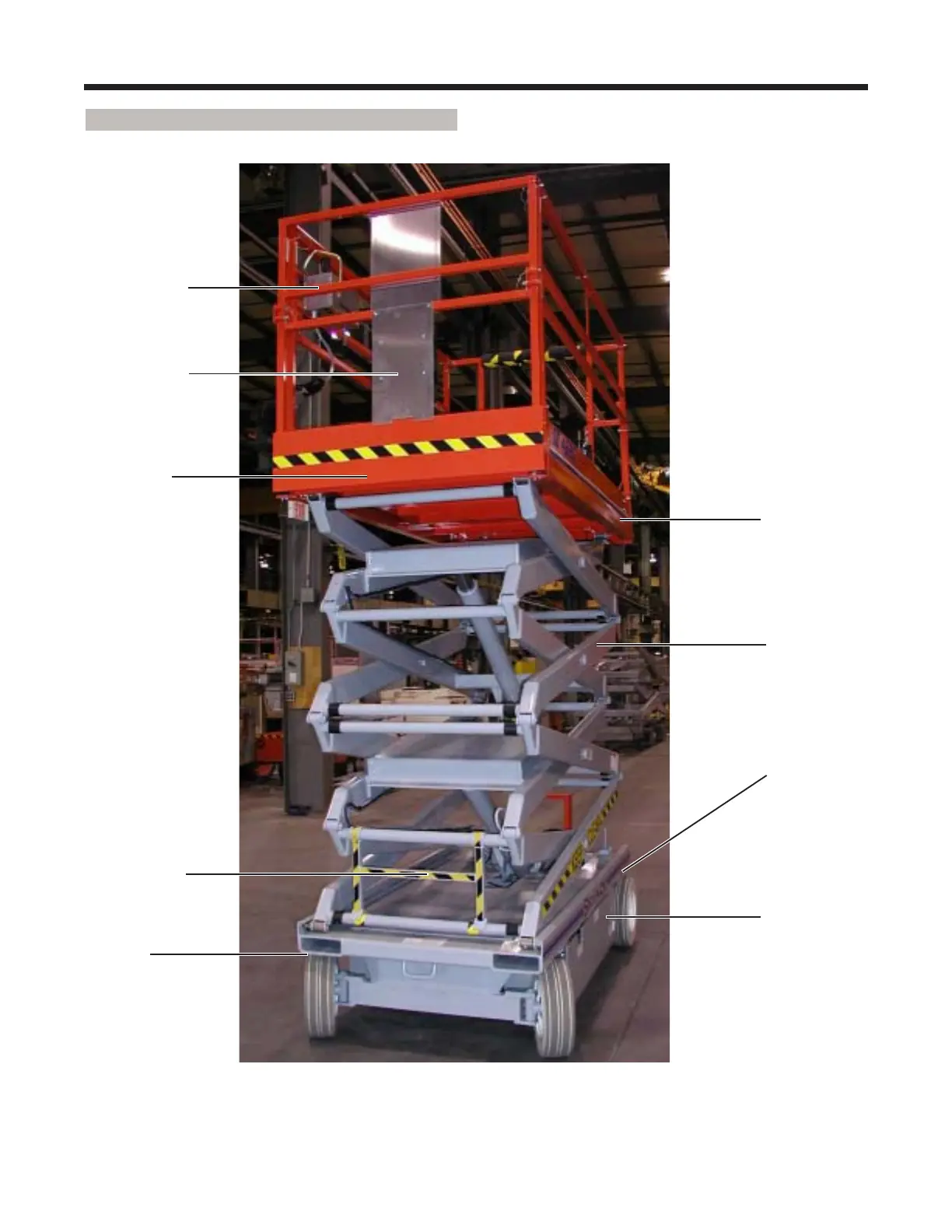

1-3. Major Components
Extension
Platform
Battery
T
ray
Hydraulic/
Electric
T
ray
Base
Maintenance
Support
Main
Platform
7
9
Table of Contents
Default Chapter
3
Table of Contents
3
Read and Heed
5
Purpose of Equipment
5
Use of Equipment
5
Manual
5
Operator
5
Optional Accessories
5
Section 1 - about Your Aerial Platform
6
Scope of this Manual
6
Warranty Statement
6
Warranty Procedures
6
Major Components
8
Major Assemblies
9
Platform
9
Operator's Control Box
9
Manual Storage Box
9
Lifting Mechanism
9
Maintenance Support/Safety Bar
9
Base
9
Lowering Warning System
9
Tilt Sensing System
10
Serial Number Nameplate
10
Standard Features (ANSI, CSA & CE)
11
Optional Equipment (ANSI, CSA &CE)
11
Operator Safety Reminders
12
Electrocution Hazard
12
Safety Precautions
13
Section 2 - Operation
16
General
16
Operator Qualifications
16
Operator's Responsibility for Maintenance
16
Maintenance and Inspection Schedule
16
Owner's Inspections
16
Folding Guardrail System
17
Maintenance Support/Safety Bar
17
Lanyard Attachment Rings
18
Tilt Alarm
18
Base Controls
18
Emergency Main Power Disconnect Switch
18
Base Controls
19
Base Control Box
19
Motion Alarm
19
Operator's Control Box - 2 & 3 Speed
20
Operator's Control Box - Proportional
21
Section 2 - Continued
22
Power Extension Deck Control Box
22
Parking Brake
22
Free-Wheeling Valve
22
Emergency Lowering System
23
Operating Procedures
23
Set-Up Procedure
23
Raise the Platform
24
Lowering Warning System
25
Pre-Start Inspection
25
Operators Checklist
25
Start and Operation
26
Setting the Base Controls
26
Shutdown Procedure
28
Emergency Lowering Procedure
29
Winching and Towing Procedures
30
Preparation after Winching and Towing
30
Stabilizers
31
Battery Service Procedure
32
Battery Charging Procedure
32
Battery Charger
33
List of Tables
37
Table 2-1A, 2-1B. Specifications and Features
37
Table 2-2. Floor Loading Pressure
39
Table 2-3. Owner's Annual Inspection Record
41
Table 2-4. Maximum Platform Capacities (Evenly Distributed)
41
Table 2-5. Maintenance and Inspection Schedule
42
Label Locations
43
LABEL, Skyjack Small, Blue
46
LABEL, Keep
46
LABEL, Caution Lift
46
LABEL, Clear
46
LABEL, Battery Charger Connection
46
