Rear Wheel Removal
1.Raise the rear wheel off the ground by placing
a support block under the engine.
2.Unscrew the axle nut (1) and pull put the axle.
Push the wheel forward and derail the drive chain
from the rear sprocket.Tilt the motorcycle to one
side so that the wheel can be removed.
(1) Axle nut
(1)
61
Installation Notes:
To install the rear wheel, reverse the removal
procedure. Make sure that the plug (5) on the
swing arm is located in the slot (6) in the brake
panel. Tighten the axle nut to:
62 N.m (6.3 kfg.m, 46 lbf.ft)
Adjust the drive chain
Adjust the brake
Apply the brake several times and check for
free wheel rotation after the brake pedal is
released.
If a torque wrench was not used for installation,
see your SKYTEAM dealer as soon as possible
to verify proper assembly. Improper assembly
may lead to loss of braking capacity.

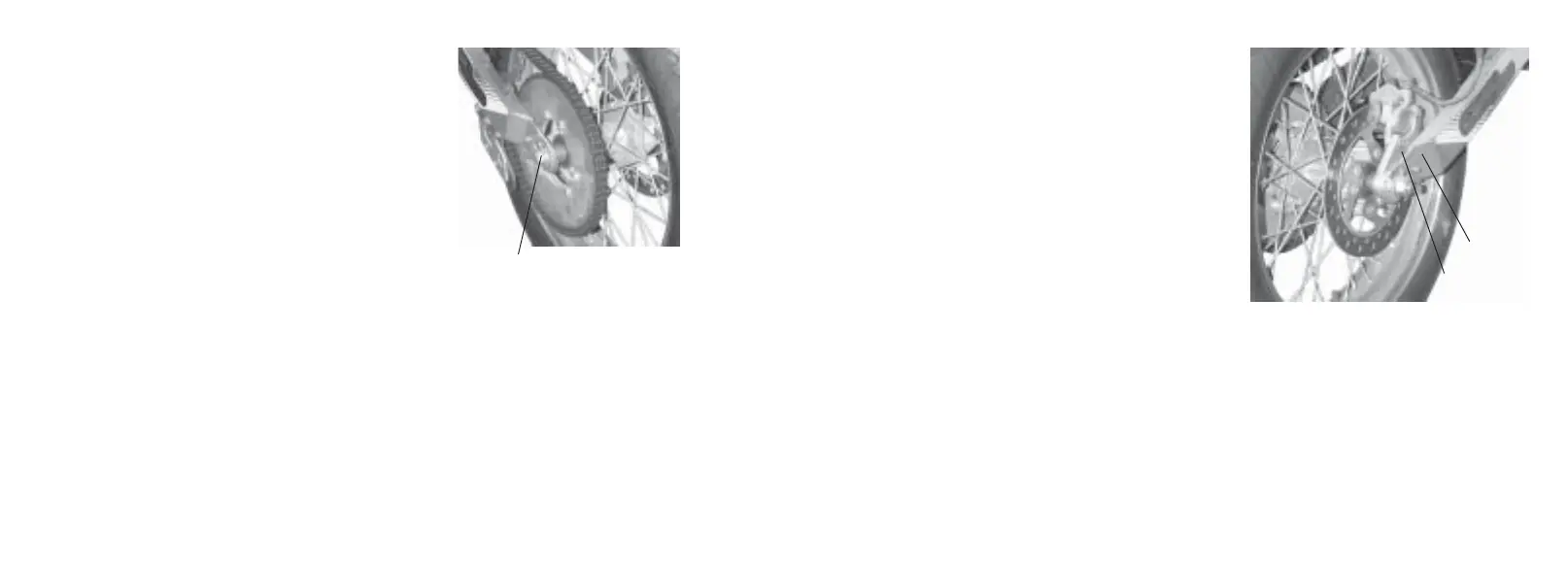

(5) Plug (6) Slot
62
(6)
(5)
