Setup operation mode
Amplfier can used in 2 modes:

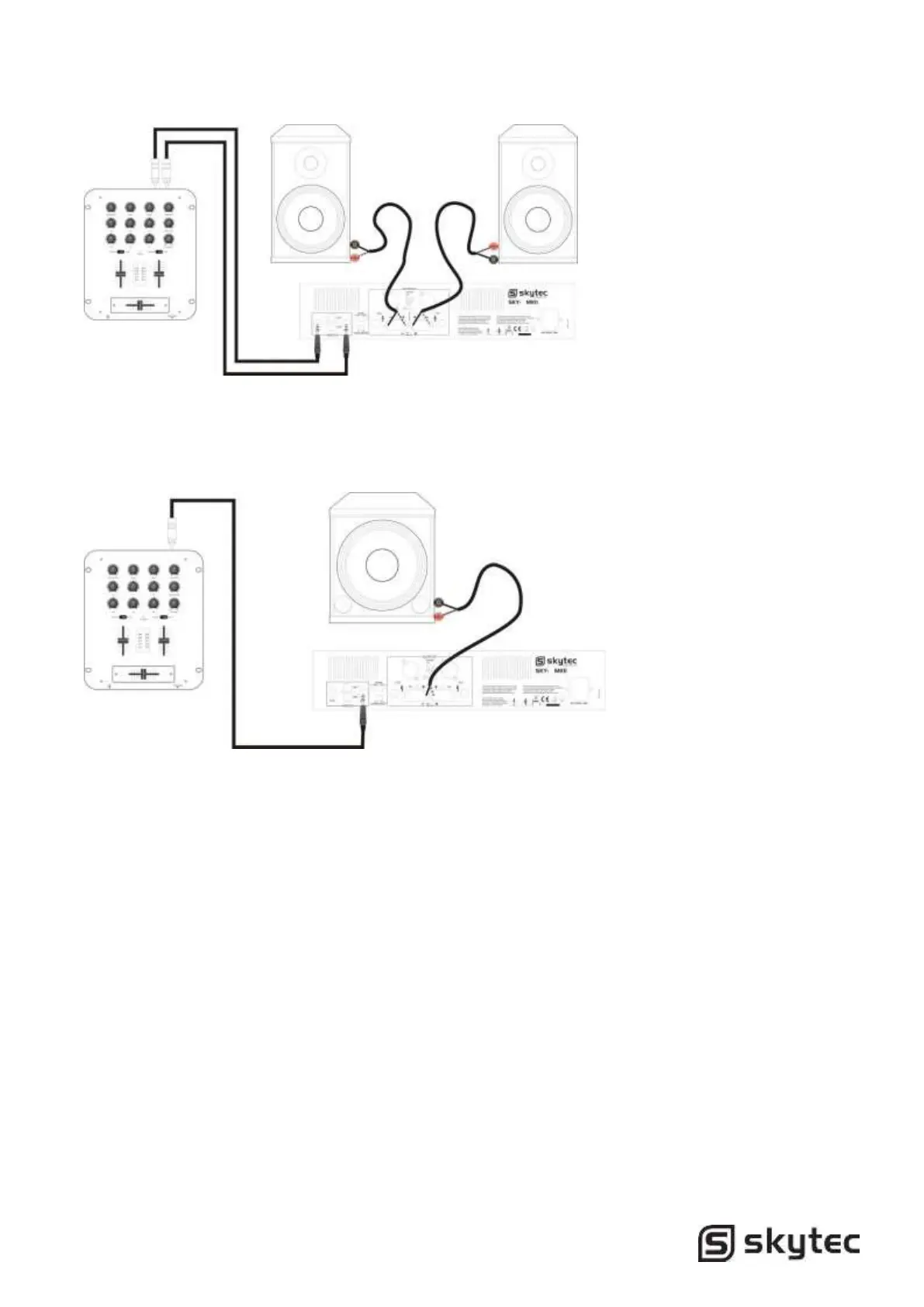

1. Stereo operation
Set the mode selector (3) to the ‘stereo’ position.
In this mode the amplifier have two independed channels with there own inputs and volume controls.
2. Bridge operation
Set the mode selector (3) to the ‘bridged’ position.
This mode combines both amps on one channel which results in double power on this channel.
Connects the signal to the A input channel and the output level can now be adjusted with the A
volume control. Connect the speaker across the positive (+) output therminals. Do not use the
negative (-) terminals when the amplifier is being operated in bridged mode.
NOTE: Never connect a hot (+) output to ground or (-) output and never connect the hot (+) to
other hot outputs!
Connect to mains power
Before plugging the unit in always make sure that the power supply matches the product specification
voltage. First connect the IEC end of the cordset to the IEC connector on the amplifier then plug the
other end of the cordset to the AC mains.
Please read instructions below for reliable and problem free use:
Be sure all connections made are made in the correct way.
Check if the connected speakers are compatible with the amplifier.
Ensure there is adequate ventilation.
Prevent exposure to moisture.
Never plug speakers in/or out while in use, this can result in serious damage.
