Skywalker ActivPlay APGD9B - Page 10

10

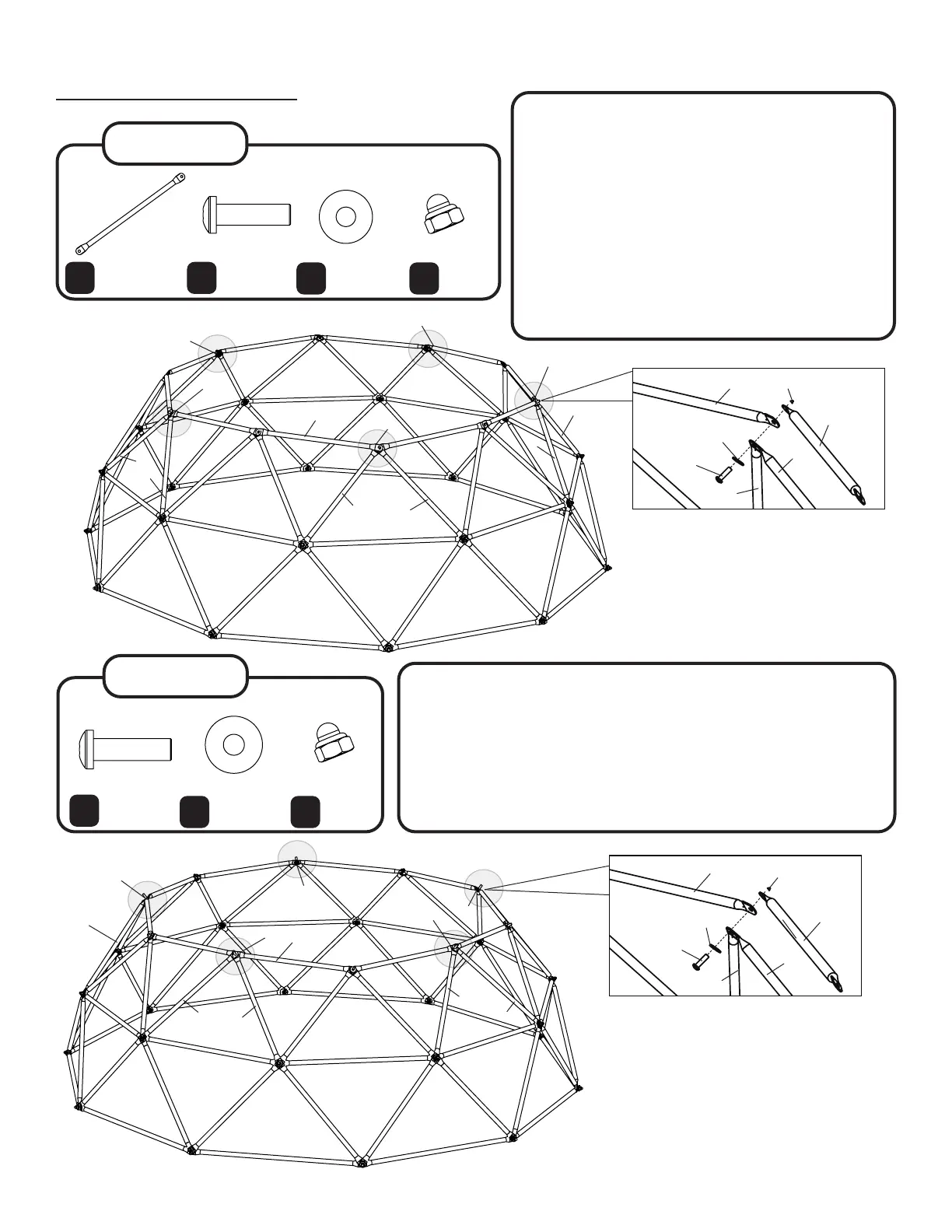

ASSEMBLY
STEP 7
Tube 4 (x10)
Size: 638mm
4
(4)
10
M10x33mm
Bolt (x5)
M10 Washer
(x5)
9
Using a tube 4 (4), attach one side of the tube to a
tube 4 triangle section only [shorter tubes].
Use a M10X33mm bolt (9), M10 washer (10) and a
M10 nut [11] [thread lightly as it will be removed
in later steps] to attach. Continue attaching the
remaining tube 4 bars at the intersections of the
tube 4 only. This will result in attaching at every
other intersection. [You will attach the other side
with a different sized bolt in the next step].
Continue attaching until you have connected all the
tube 4’s with the M10X33mm bolts at the shorter
intersections only.
(9)
(4)
(4)
(4)
(8)
(10)
(8)
(9)
(9)
(9)
(9)
STEP 8
10
M10x33mm
Bolt (x5)
M10 Washer
(x5)
8
Now you will attach the other side of the tube 4’s (4) from
previous step to the triangle of the tube 2’s [taller bars] with the
M10X35mm bolts (8), M10 washer (10) and M10 nuts[11] [thread
nut on lightly]. Continue attaching until you have attached all
the tubes with the M10X35mm bolts to the taller intersections
completing the third ring of the geo dome.
Make sure the M10X33mm bolts and the M10X35mm bolts are
alternating.
(8)
(8)
(8)
(8)
11
M10 Nut
(x5)
(4) (4)
(4)
(4)
(4)
(4)
(4)
(4)
(4)
(9)
(10)
(11)
(4)
11
M10 Nut
(x5)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(11)
Pro-tip: At this point, assembly may be
easier with one person inside the geo
dome and one person out.
