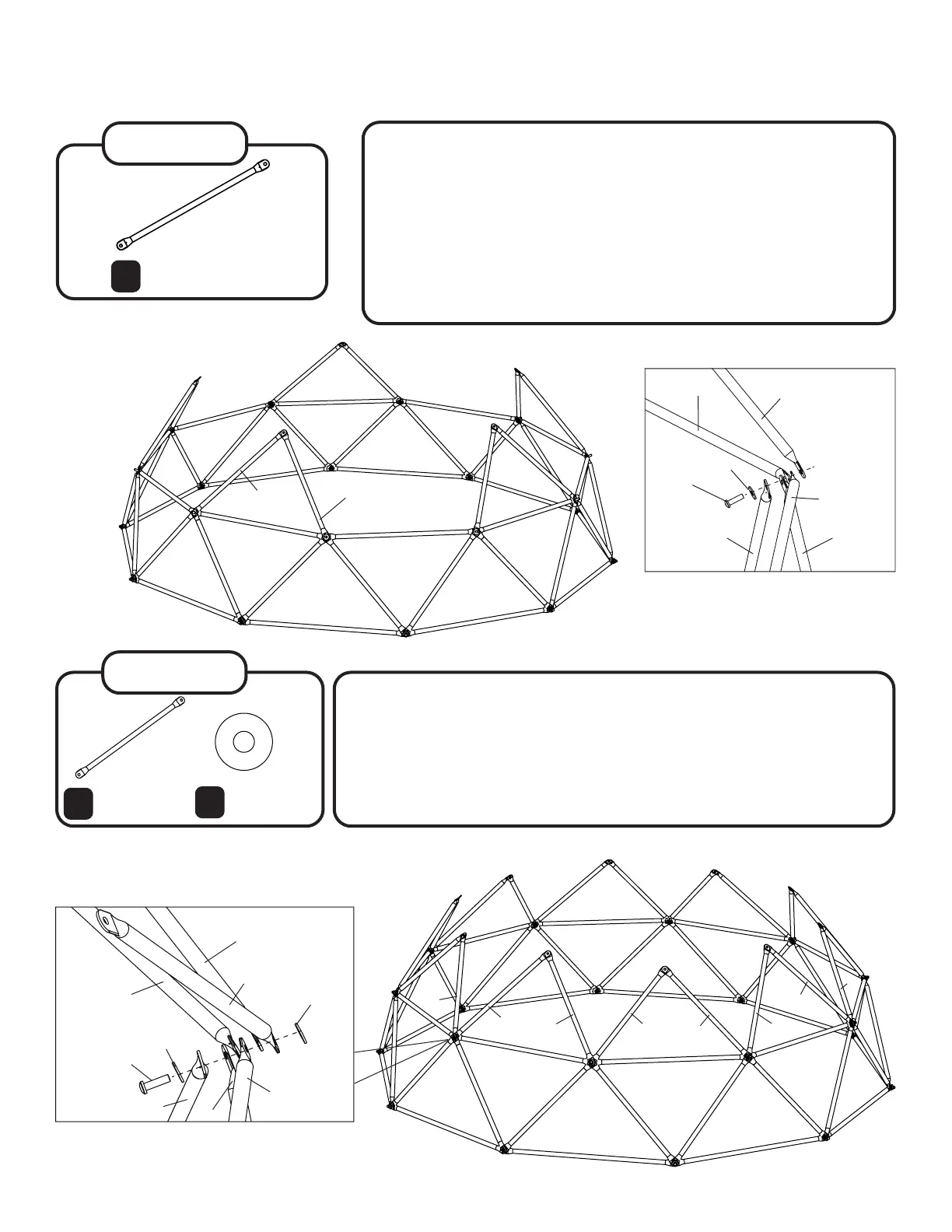

STEP 5STEP 5
Remove a nut from one of the M10X35mm bolts (8) from step 4, and
place a tube 2 [2] onto the bolt. Lightly replace the nut. Add another
tube 2 directly to the left in the same way. Make sure the two tubes
lean in towards each other to form a triangle. Continue placing bars in
this manner until you have attached all the tubes to the second ring of
the geo dome and your geo dome looks like the image below.
Note: There will be a “skipped“ bar between each triangle.
*The frame will look uneven at this point, this is normal and will correct
with further assembly.
Tube 2 (x10)
Size: 671mm
2
(2)
(2)
STEP 6
Now, remove the nut from a M10X35mm bolt and place a tube 4 onto the
bolt. Lean the bar into the open space between the tube 2’s from step 5.
Add a M10 washer [11] on top and lightly replace the M10 nut [10]. Continue
attaching all ten tube 4’s until you have created a triangle of tube 4’s
between each triangle of tube 2’s like the image below.
Each bolt should be connecting six tubes. Do not tighten the nuts.
Tube 4 (x10)
Size: 638mm
4
M10 Washer
(x10)
10
(4)
(4)
(2)
(2)
(3)
(3)
(8)
(10)
(2)
(2)
(2)
(4)
(4)
(2)
(2)
(2)
(4)
(3)
(3)
(2)
(2)
(8)
(10)
(10)
