11
STEP 8
STEP 10
5
STEP 9
Tube 5 (x5)
Size: 511mm
Tube 2 (x5)
Size: 671mm
2

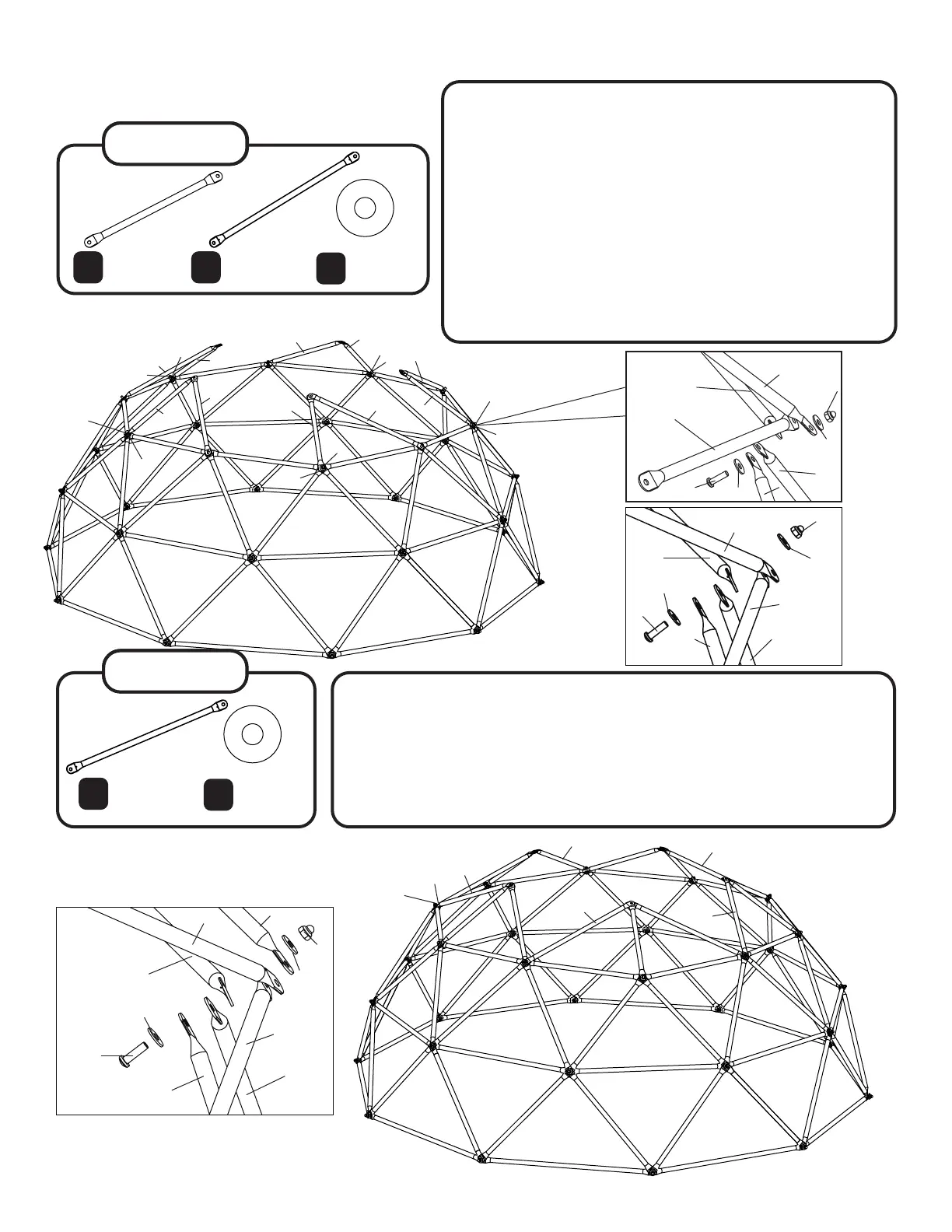

Remove a nut from a M10X33mm bolt of the third ring and
place a tube 5 onto the bolt. Add a M10 washer and lightly
replace the nut. Now, remove the nut from the M10X35mm
bolt directly to the right of where you just attached the tube
5 and place a tube 2 onto the bolt. Lightly replace the nut [do
not add a washer].
Note: The tube 5 should sit straight, and the tube 2 should lean
in towards the tube 5 until the two tubes meet at the top.
Move to the next M10X33mm bolt and continue attaching in
this manner until all five tube 5’s and all five tube 2’s have
been attached and your geo dome looks like the image below.
Note: There will be a “skipped bar“ between each section at
this point.
(5)
(2)
(5)
(2)
(2)
(2)
(2)
(5)
(5)
(5)
M10 Washer
(x5)
10
(11)
(10)
(10)
(10)
(10)(10)
(11)
(11)
(11)
(11)
STEP 9
STEP 10
STEP 10
9
Tube 2 (x5)
Size: 671mm
2
M10 Washer
(x5)
10
Directly to the left of a tube 5 (short tube), remove the nut and place
another tube 2 (2) onto the M10X35mm bolt. Add a M10 washer [10] and
lightly replace the nut. Angle the newly attached tube 2 to meet the tube 5
in the middle.
This will create a triangle of tube 2’s with a tube 5 running up the middle.
Continue attaching until you have attached all five tube 2’s and your geo
dome looks like the image below.
Note: Do not tighten the nuts.
(2)
(2)
(2)
(2)
(2)
(10)
(11)
(5)
(4)
(4)
(11)
(10)
(4)
(4)
(9)
(10)
(11)
(10)
(4)
(4)
(10)
(8)
(2)
(2)
(4)
(2)
(2)
(2)
(2)
(4)
(4)
(8)
(10)
(10)
(11)
