STEP 19

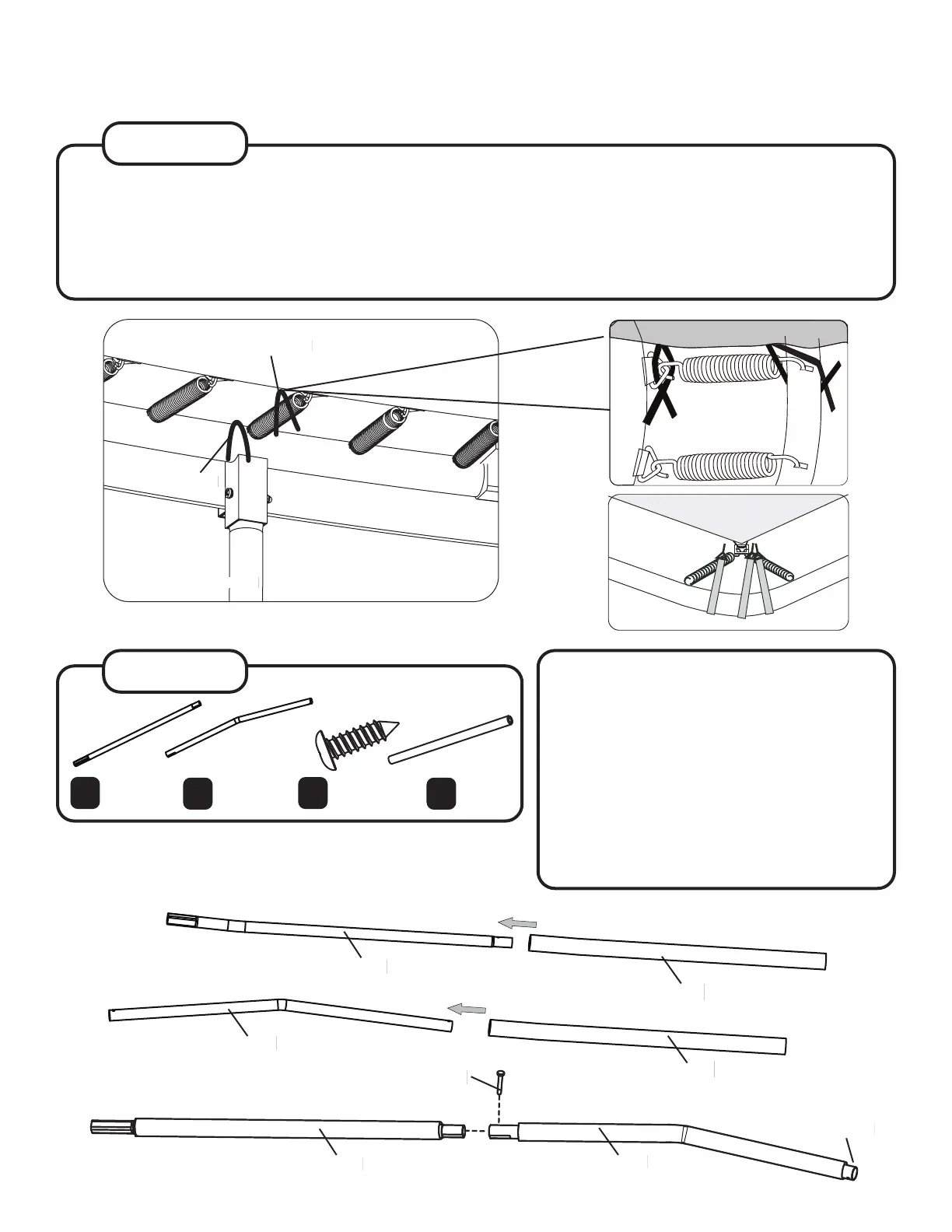

Look under the trampoline. Find the straps that are attached to the underside of the frame pad (12). Position
the outer straps so that one strap is on each side of the frame. Position the inner straps so that one strap
is threaded through a V-ring. Now tie all of the straps in bows. (Because if you tie them in knots, you’ll have
a pretty hard time untying them ever again!) Secure the corners of the frame pads to the frame using the
attached straps. Clip the straps to the D-rings at each corner.
Inner strap
Outer strap
Underside of trampoline
STEP 20
Now place the foam (22) onto the straight tubes
(13) and the curved tubes (14). If you are having
trouble getting the foam on, try adding a little
water inside the foam.
Then insert one straight tube (13) into one
curved tube (14), and secure with one self-
tapping screw (15). Important: On the curved
tube there is one end that has two holes. Make
sure that end is on top! Repeat this step to
attach the seven remaining straight tubes and
curved tubes together.
Self-tapping
Screw (x8)
15
(13)
(13)
(14)
(14)
(22)
(22)
(15)
Two holes
Straight
Tube (x8)
Curved
Tube (x8)
14
13
Foam
(x16)
22
