Skywalker STRC915.2 - Step 21: Install Pole Caps; Step 22: Attach Enclosure Poles

18
ASSEMBLY

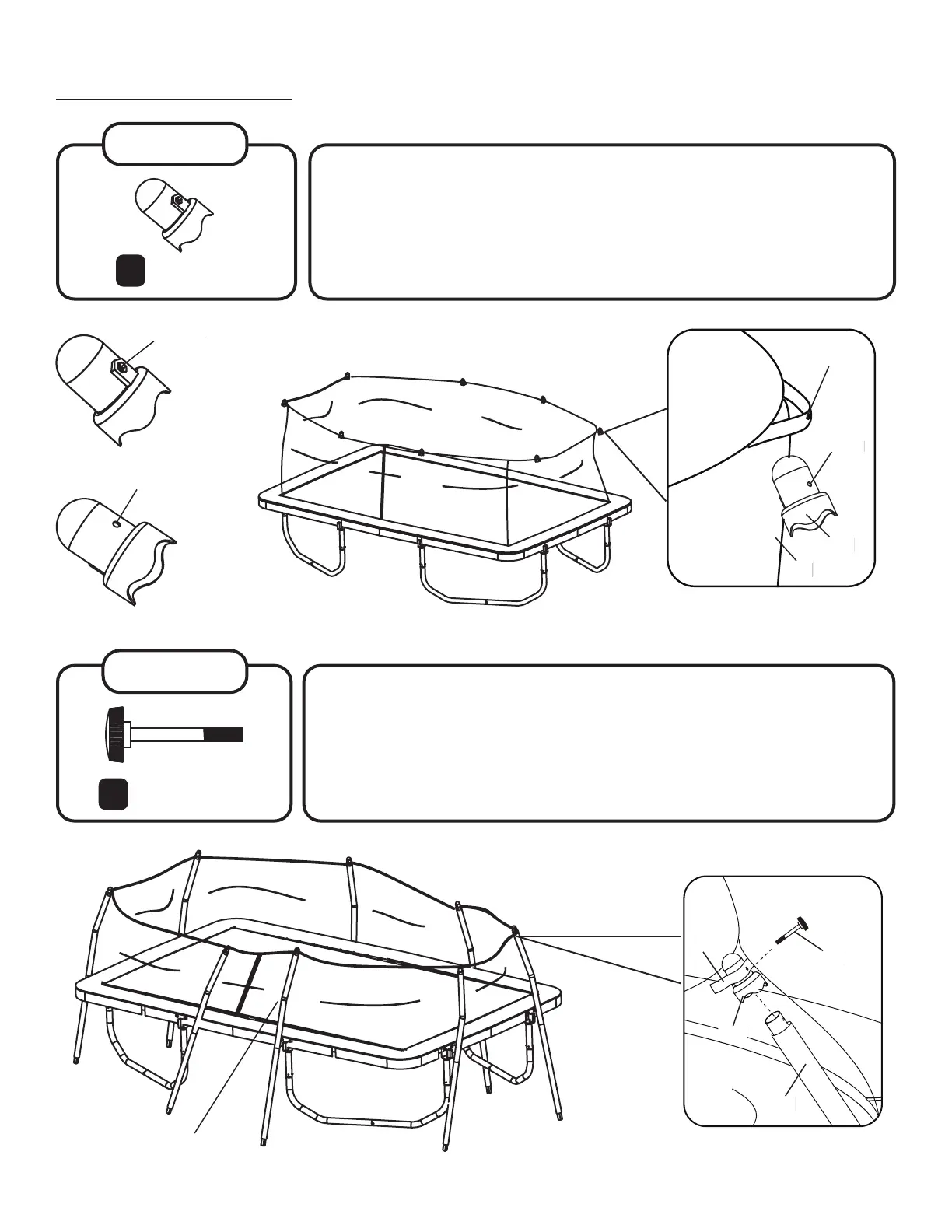

STEP 21
Important: The pole cap (23) has two sides; one with a hexagon hole, and one
with a round hole.
Insert the pole cap into one strap ring found on the top of the enclosure net.
Make sure the hexagon hole is facing the net, and the round hole is facing
you.
Pole Cap (x8)
23
STEP 22
Next insert a curved tube (14) into the pole cap (23). Make sure the bend of
the enclosure poles face out away from the center of the trampoline. Make
sure the holes on the curved tube, pole cap, and strap ring are all aligned.
Then insert a M5x44mm bolt (25) to secure in place. Important: Make sure the
bolt goes into the round hole FIRST (not the hexagon hole) or you could break
the pole cap!
M5x44mm Bolt (x8)
25
Round hole
Hexagon hole
(9)
Round hole
Strap
(14)
(23)
(25)
Strap
(23)
Bend Faces Out
