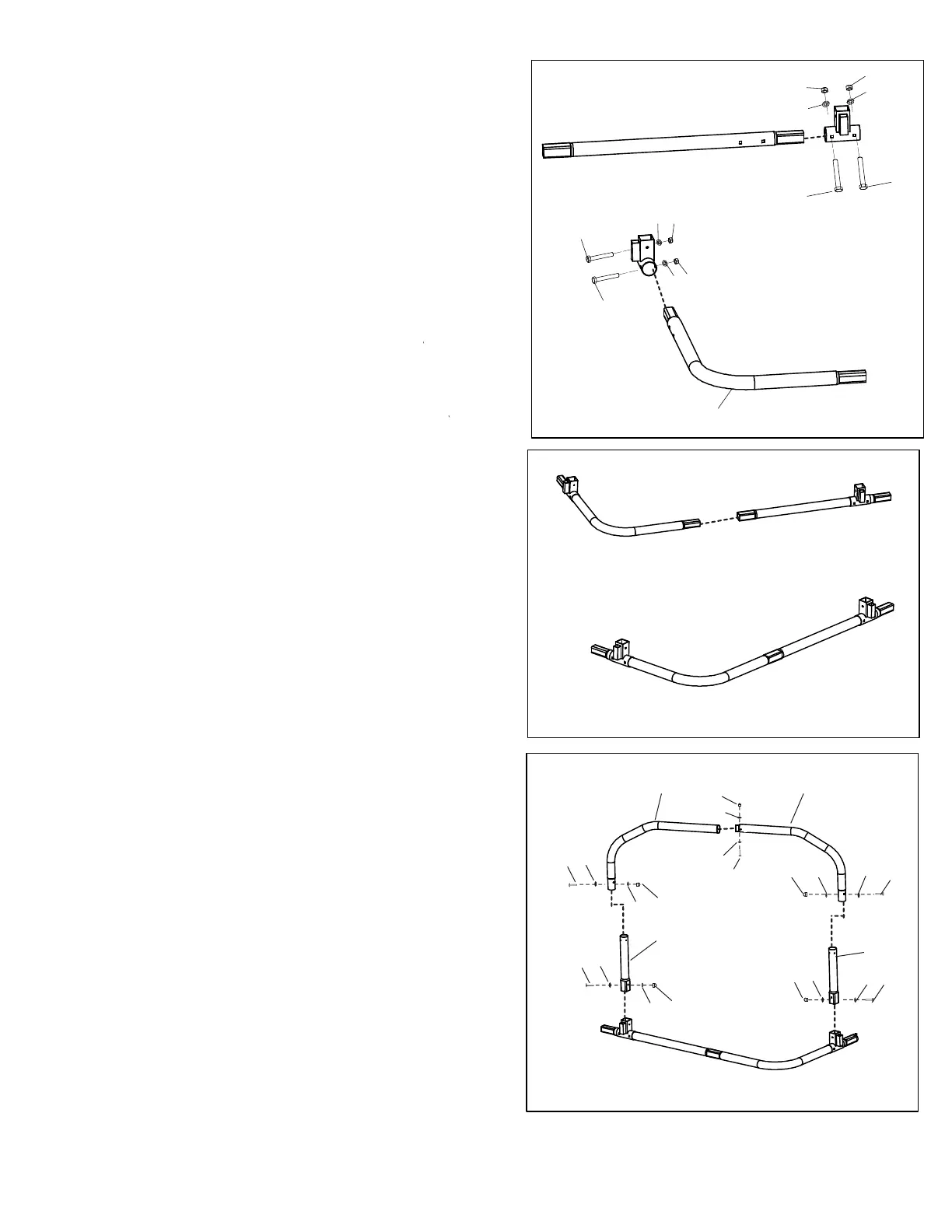

3, Lay the Frame tube(1) and Socket(2) on the ground
in the position shown , make sure the frame tube are
turned so the small holes (spring holes) are facing the ground.
Insert the Frame tube(1) into the Socket(2) secure with
M10 Bolt(3) , M10 Nut(4) and washer(5)
Lay the Left corner tube(7) and socket(2) on the ground in the
position shown , make sure the Left corner tube are turned so the
small holes (spring holes) are facing the ground.
Insert the Left corner tube(7) into the Socket(2) secure with M10 x 88mm
Bolt(3) , M10 Nut(4) and M10 Washer(5)
4,Attach the Frame tube with Socket(1) and Left Corner tube(7)
with Socket
Repeat above assembly steps until two assembly units (B) will be completed.
3
3
3
3
5
5
5
5
4
4
4
4
B
5, Assemble the Male Curved tube(8) to the Female Curved tube(9)
Before assembling the rest of the legs , secure with M6 X 70mm Bolt(11) ,
M6 Nut(12) and M6 Washer(13).
Repeat above assembly step until two leg sections A will be completed.
use the same manner to assemble two leg section B.
Insert the Male Curved tube (8) into the Leg Extension (10). Insert
the Female Curved tube (9) into the Leg extension(10) secure with
M6 x70mm Bolt(11) , M6 Nut(12) and M6 Washer(13).
Press down on both legs at the same time and fully insert them into
the Socket tightened by M6 x70mm Bolt(11) , M6 Nut(4) and M6
Washer(5).
8
9
10
12
13
13
13
13
13
13
11
11
12
11
11
12
11
12
12
13
13
13
13
13
10
7
3
4
5
14
