STEP 15

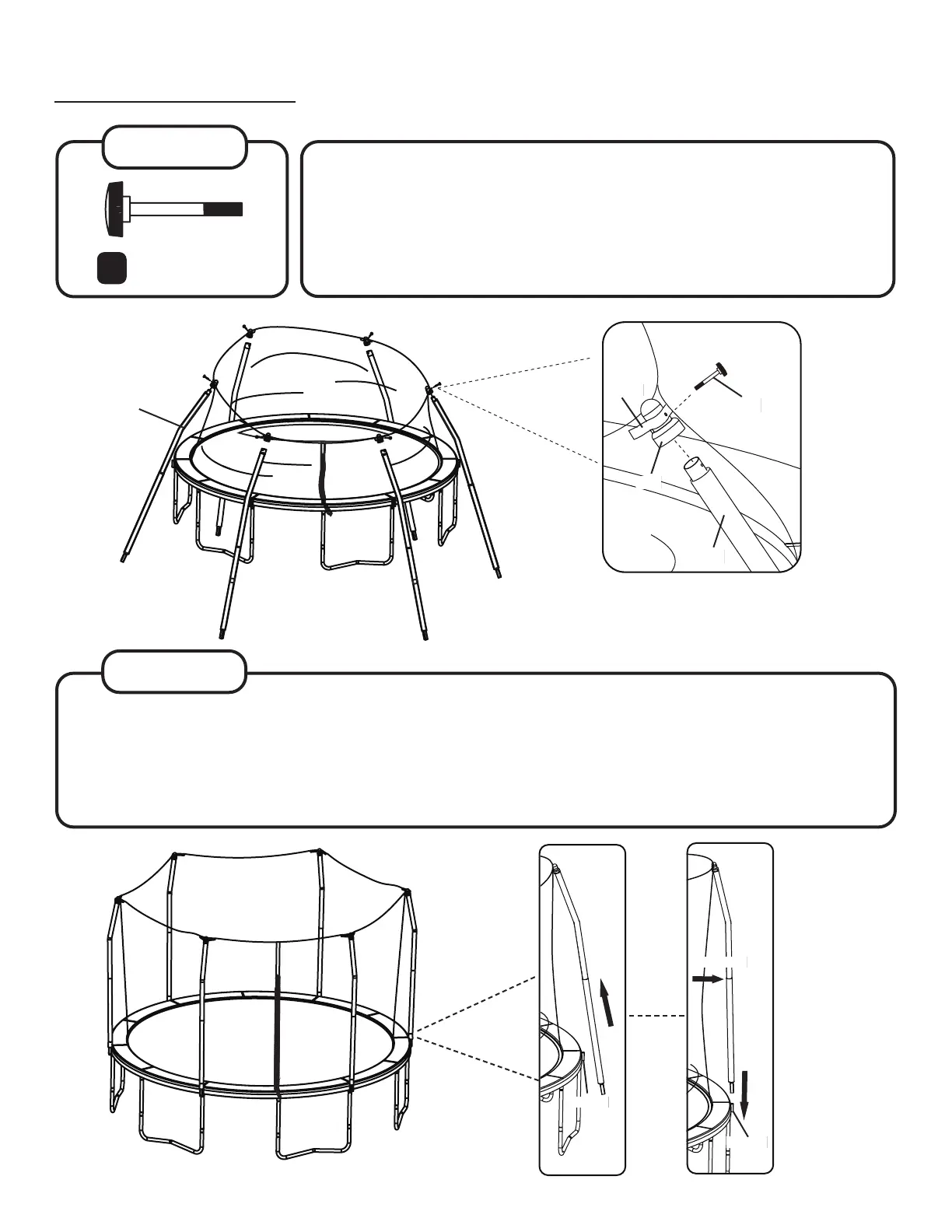

Next insert a curved tube (10) into the pole cap (12). Make sure the bend of
the enclosure poles are facing out away from the center of the trampoline.
Make sure the holes on the curved tube, pole cap, and strap ring are all
aligned. Then insert a M5x44mm bolt (14) to secure in place. Important: Make
sure the bolt goes into the round hole (not the hexagon hole) or you could
break the pole cap! Repeat steps 17-18 to assemble the remaining pole caps.
M5x44mm Bolt (x6)
14
(12)
(10)
(14)
Strap
Bend facing out
ASSEMBLY
STEP 16
Starting from the enclosure door, lift one of the assembled poles and insert the straight tube (9) into the
socket. Repeat this process to assemble the five remaining poles.
Helpful tip: When inserting the enclosure poles, pull back on the middle of the poles!
Socket
Socket
Pull back
To Next Page
