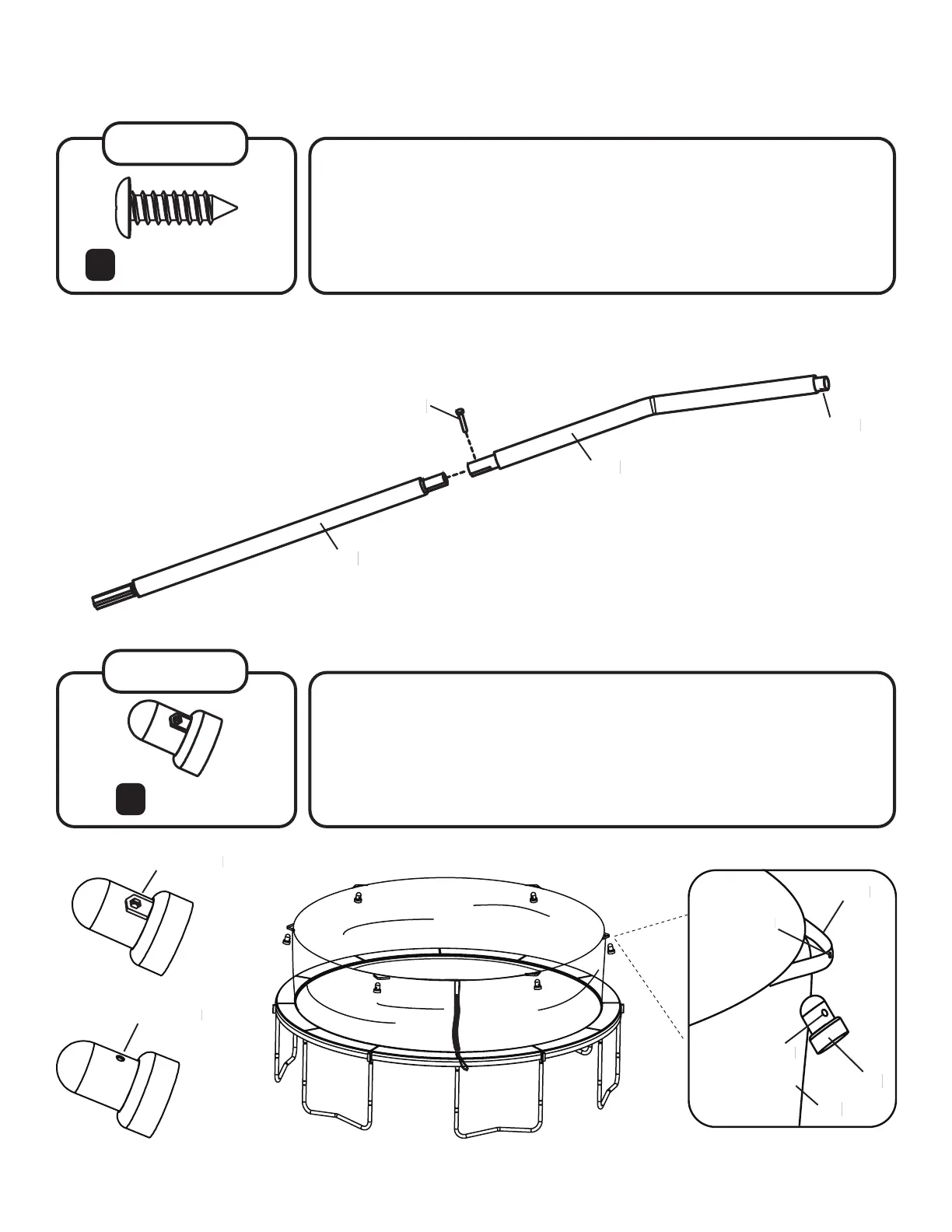

STEP 13
Insert one straight tube with foam (9) into one curved tube with foam (10),
and secure with one self-tapping screw (15). Important: On the curved tube
there is one end that has two holes. Make sure that end is on top!
Repeat this step to attach the 5 remaining straight tubes and curved tubes
together.
Self-tapping Screws (x6)
15
(9)
(10)
(15)
Two holes
STEP 14
Important: The pole cap (12) has two sides; one with a hexagon hole, and
one with a regular hole.
Insert the pole cap into one strap ring found on the top of the enclosure
net. Make sure the hexagon hole is facing the net, and the regular hole is
facing you.
Pole Cap (x6)
12
Hexagon hole
Regular hole
Regular hole
Hole
Strap
(7)
(12)
