ASSEMBLY
STEP 4

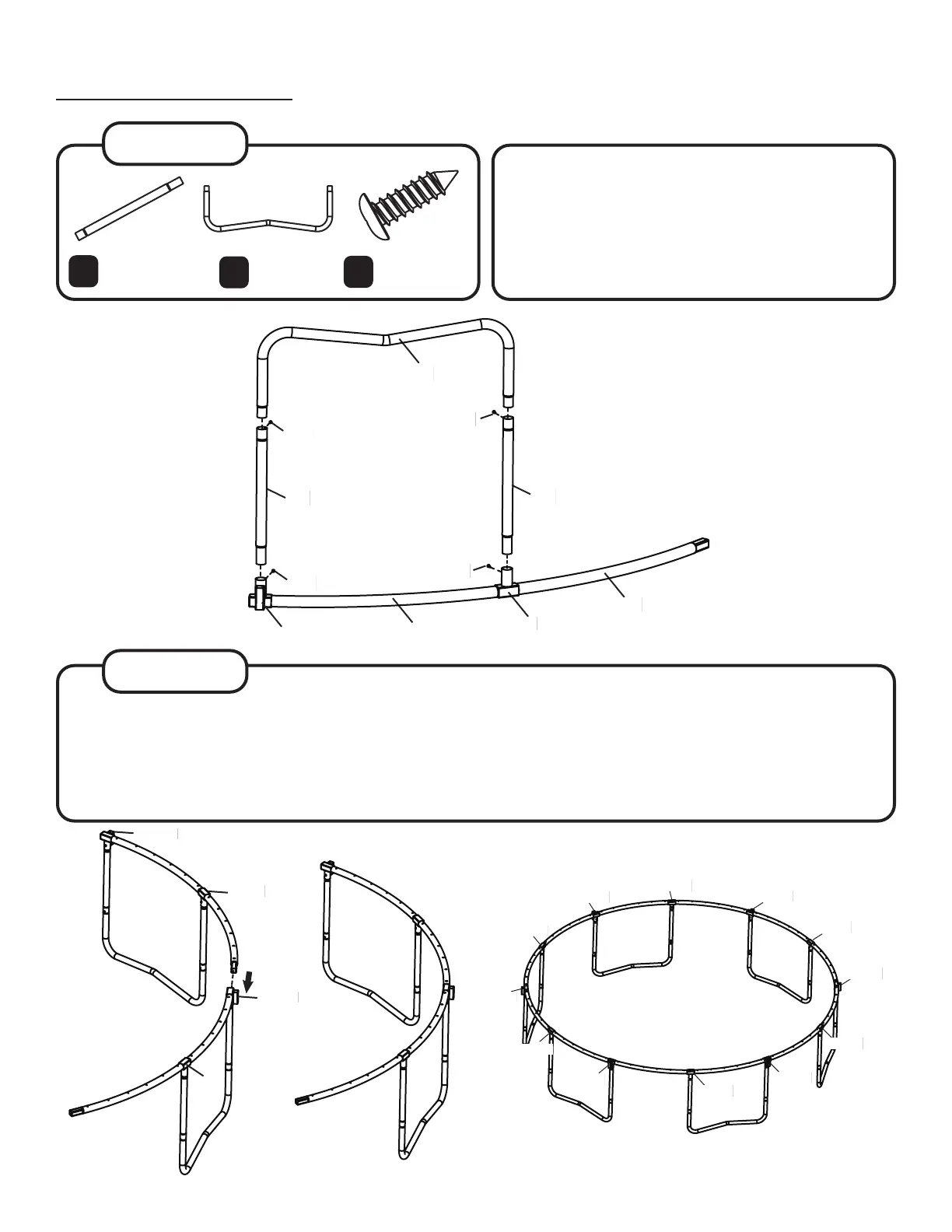

This step is a breeze! (But it is a good idea to grab a friend to help). Just flip the six frame pieces so that the
legs are now supporting the frame. Now connect two frame pieces together. Continue connecting frame
pieces until you have a free-standing frame. (And it might even resemble a trampoline now!)
Remember: Make sure the T-joints and sockets are alternating!
STEP 3
Leg Brace
(x6)
3
Insert a leg brace (4) into two leg extensions (3)
and secure with two self-tapping screws (15).
Now insert both leg extensions into the T-joint and
socket of a top tube section at the same time.
Secure into place with two self-tapping screws.
Repeat this step until all 6 frame pieces are
assembled.
Self-tapping
Screws (x24)
15
Leg Extension
(x12)
4
(1)
(18)
(3)
(3)
(15)
(15)
(15)
(15)
(4)
T-joint
T-joint
T-joint
T-joint
T-joint
T-joint
T-joint
T-joint
Socket
Socket
Socket
Socket
Socket
Socket
Socket
Socket
(2)
(18)
