Sleipner 8730B - S-Link External Switch Interface Installation; 8730 B Wiring Diagram

4
2 0 71
4 2024
-
Sleipner Installation Guide
MG_0662
Bow
Cut here
Stern
1
MC_0735
S-link External Switch Interface Installation
Connect the (foot) switches according to the wiring diagram(s).
1. To connect the optional radio remote, fi rst cut the wires close to the plastic connector on the “bow” connection lead according to Fig. 1. Strip the
wires properly and connect to the 8730 according to the wiring diagram(s). Do the same with the “stern” wires if needed.
2. Mount the 8730 in a place where it will be protected from direct and condensed water ingress. Use cable ties or other suitable means of
mounting.
3. Plug the S-link Spur cable into the green connector at the rear of interface box. Twist the locking ring on the connector clockwise to secure
connector.
MG_0759

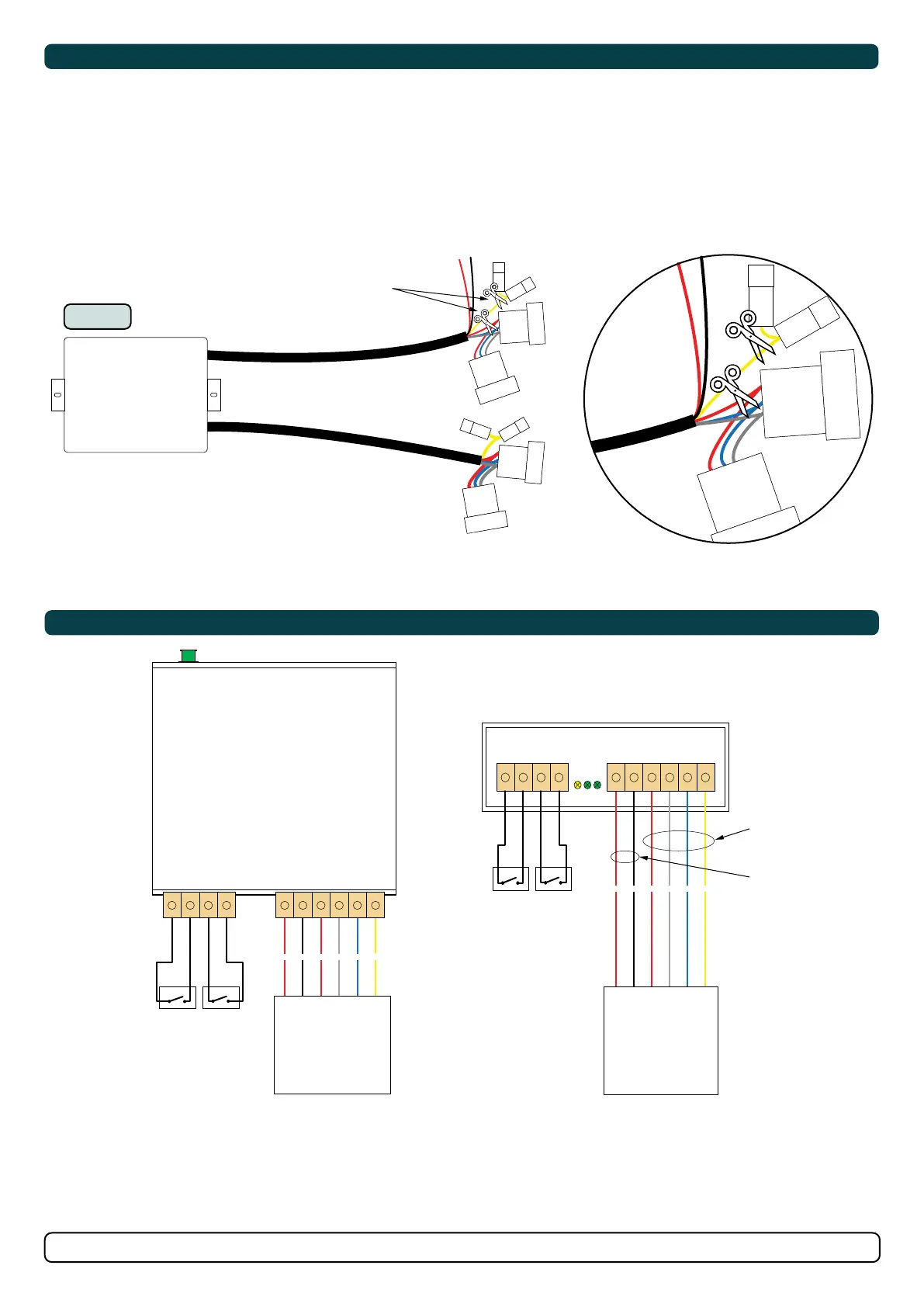

8730B Wiring Diagram
RED BLACK RED GREY BLUE YELLOW
PORT
STARBOARD
REMOTE ACTIVE
RED BLACK RED GREY BLUE YELLOW
S-link
Foot
switch
port
Foot
switch
starboard
Foot
switch
port
Foot
switch
starboard
Radio Remote
Cut off wires from
BOW connector
Non-terminated
wires
Top View Front View
Radio Remote
8730
8730
