II.. SSeennssoorr FFllaasshheess CCoonnttiinnuuoouussllyy OOnnllyy WWhheenn UUsseerr SStteeppss WWiitthhiinn RRaannggee..
A. Unit in Start-Up mode; no problem. This feature is active for the first 10
minutes of operation.
IIII.. VVaallvvee DDooeess NNoott FFlluusshh;; SSeennssoorr NNoott PPiicckkiinngg UUpp UUsseerr..
A. Range too short; increase the range.
B. OPTIMA Plus installed on a high rough-in fixture (beam is shooting over
the user's head). Install the Sloan EBV-46-A Beam Deflector (black
modules only).
IIIIII.. VVaallvvee DDooeess NNoott FFlluusshh;; SSeennssoorr PPiicckkiinngg UUpp OOppppoossiittee WWaallll oorr SSuurrffaaccee,, oorr
OOnnllyy FFlluusshheess WWhheenn SSoommeeoonnee WWaallkkss BByy.. RReedd LLiigghhtt FFllaasshheess
CCoonnttiinnuuoouussllyy ffoorr FFiirrsstt 1100 MMiinnuutteess EEvveenn wwiitthh NNoo OOnnee iinn FFrroonntt ooff tthhee
SSeennssoorr..
A. Range too long; shorten range.
B. Sensor is picking up mirror or highly reflective wall or surface in front of
fixture. Install OPTIMA Plus slightly "off-center" (2 to 5 degrees) to
eliminate direct reflection off of mirror or opposite wall or surface.
IIVV.. VVaallvvee DDooeess NNoott FFlluusshh EEvveenn AAfftteerr AAddjjuussttmmeenntt..
A. Range Adjustment Potentiometer set at full "max" or full "min" setting.
Readjust Potentiometer away from full "max" or "min" setting.
B. Batteries completely used up; replace batteries.
C. Problem with Electronic Sensor Module; replace Electronic Sensor
Module.
VV.. UUnniitt FFllaasshheess 44 QQuuiicckk TTiimmeess WWhheenn UUsseerr SStteeppss WWiitthhiinn RRaannggee..
A. Batteries low; replace batteries.
VVII.. VVaallvvee DDooeess NNoott SShhuutt ooffff..
A. Bypass orifice in diaphragm is clogged with dirt or debris, or bypass is
clogged by an invisible gelatinous film due to "over-treated" water.
Remove Flex Tube Diaphragm and wash under running water.
Note:
Size of orifice in the Bypass is of utmost importance for the proper
metering of water by the valve.
DO NNOT EENLARGE OOR DDAMAGE TTHIS
ORIFICE.
Replace Flex Tube Diaphragm if cleaning does not correct the
problem.
B. Dirt or debris fouling Stem or Flex Tube Diaphragm. Remove Flex Tube
Diaphragm and wash under running water.
C. Problem with Solenoid. If cleaning does not correct the problem, replace
with new Isolated Solenoid Operator.
VVIIII.. NNoott EEnnoouugghh WWaatteerr ttoo FFiixxttuurree..
A. Wrong OPTIMA Plus Flex Tube Diaphragm installed; i.e., 1.0 gpf urinal
installed on 3.5 gpf closet fixture. Replace with proper Diaphragm
Assembly.
B. Enlarged Bypass in Diaphragm. Replace with Flex Tube Diaphragm Kit.
C. Control Stop not adjusted properly. Readjust Control Stop.
D. Inadequate volume or pressure at supply. Increase water pressure or
supply (flow) to valve. Consult factory for assistance.
VVIIIIII.. TToooo MMuucchh WWaatteerr ttoo FFiixxttuurree..
A. Control Stop not adjusted properly. Readjust Control Stop.
B. Wrong OPTIMA Plus Flex Tube Diaphragm installed; i.e., 3.0 gpf model
installed on 1.0 or 1.5 gpf urinal fixture. Replace with proper OPTIMA Plus
Diaphragm Assembly.
C. Dirt in Diaphragm Bypass. Clean under running water or replace with new
Flex Tube Diaphragm.
IIXX.. MMeenn''ss RRoooomm CClloosseett BBoowwllss UUnnfflluusshheedd..
A. Closet being used as urinal. Angle Sensor slightly off fixture centerline to
detect standing person in front of fixture.
XX.. HHiigghh VVaaccuuuumm BBrreeaakkeerr IInnssttaallllaattiioonn
((MMooddeell 88111155//88111166)) —— UUnniitt NNoott FFlluusshhiinngg..
A. EBV-46-A Beam Deflector not installed. Install EBV-46-A Beam Deflector
(black modules only) to divert Sensor beams.
XXII.. EElleemmeennttaarryy SScchhooooll UUrriinnaallss NNoott FFlluusshhiinngg..
A. Unusually short users not being detected. Install EBV-46-A Beam
Deflector (black modules only) to divert Sensor beams.
† Note: Use on Black Modules Only.
BATTERIES
When required, replace batteries with four (4) Alkaline Type AA batteries.
For information and instructions on field converting OPTIMA Plus Module
settings or to activate the Stadium Flush™ Feature in urinal models, see the
Sloan OPTIMA Plus Conversion Guide (0816511).
This manual and the OPTIMA Plus Repair and Maintenance Guide are
available at www.sloanvalve.com
CARE AND CLEANING OF CHROME AND SPECIAL FINISHES
DO NOT use abrasive or chemical cleaners to clean Flushometers as they
may dull the luster and attack the chrome or special decorative finishes.
Use ONLY soap and water, then wipe dry with clean cloth or towel.
While cleaning the bathroom tile, the Flushometer should be protected from
any splattering of cleaner. Acids and cleaning fluids can discolor or remove
chrome plating.
Refer to the OPTIMA Plus Flushometer Maintenance Guide for additional
Troubleshooting and Repair Part information.
If further assistance is required, please contact the Sloan Valve
Company Installation Engineering Department at 1-888-SLOAN-14
(1-888-756-2614).
Manufactured in the U.S.A. by Sloan Valve Company under one or more
of the following patents: U.S. Patents: 4,893,039; 5,169,118; 5,244,179;
5,295,655; Des. 345,113; Des. 355,478. Other Patents Pending. BAK-
CHEK
®
, PARA-FLO
®
, PERMEX
®
, TURBO-FLO
®
.
Troubleshooting and Maintaining the Sloan OPTIMA Plus Flushometer
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • www.sloanvalve.com
Copyright © 2003 Sloan Valve Company Printed in the U.S.A. Made in the U.S.A. OPTIMA PLUS M.G. — Rev. 2 (09/03) Code No. 0816193
SENSOR OPERATED FLUSHOMETERS
FOR USE WITH SLOAN’S ORIGINAL OPTIMA PLUS
FLUSHOMETER PRODUCED FROM 1992 - 2003

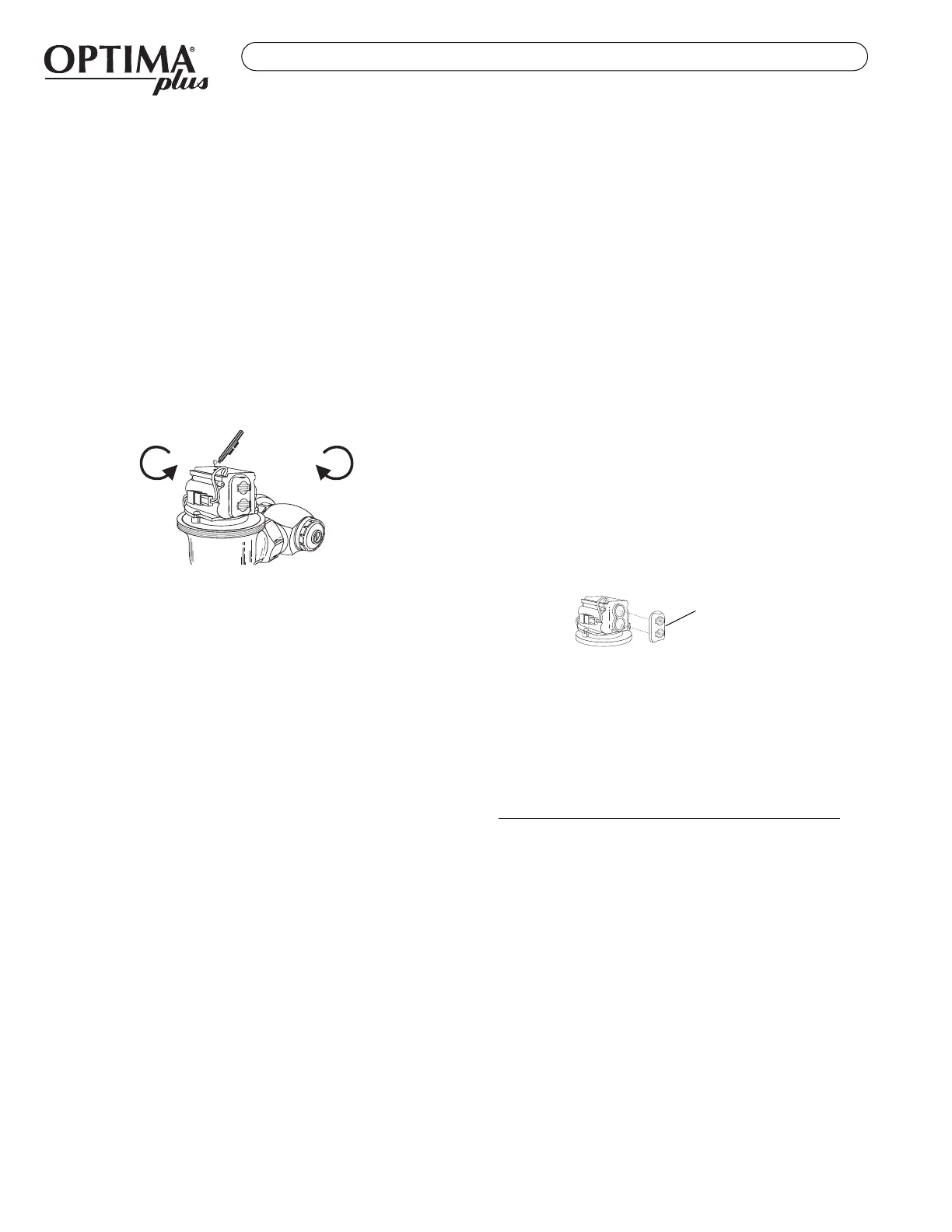

COUNTERCLOCKWISE
CLOCKWISE
Decreases
Range
Increases
Range
EBV-46-A BEAM
DEFLECTOR †
