5

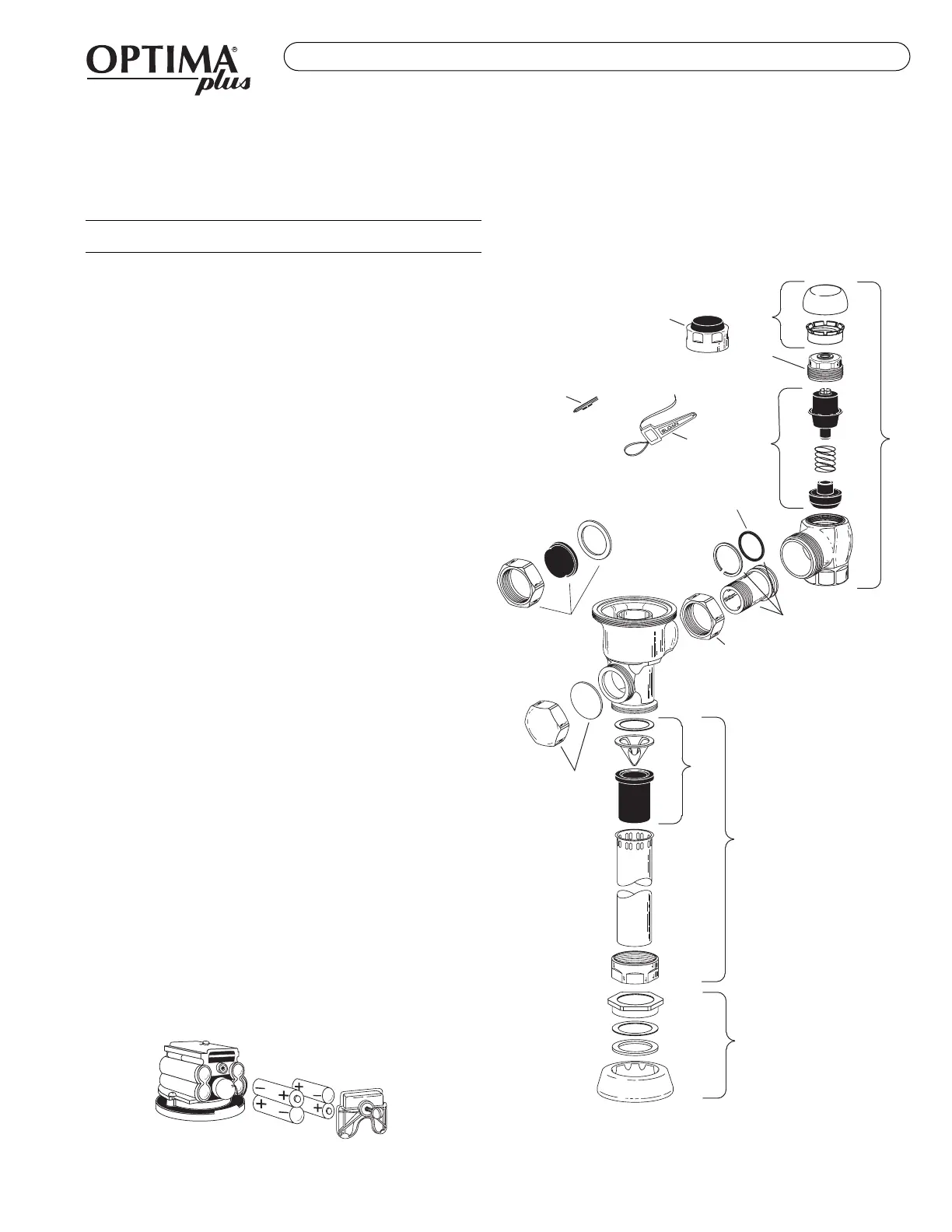

OTHER VALVE COMPONENT PARTS
Item Code Part
No. No. No. Description
9. 3325814 EBV-1017-A Handle Cap — Metal
10. 3325815 EBV-1018-A Handle Cap — Decorative
11. 3323182 V-651-A Vacuum Breaker Repair Kit
12. 0393004 V-600-A ¾'' (19 mm) x 9'' (229 mm) CP Vacuum Breaker
0393006 V-600-A 1¼'' (32 mm) x 9'' (229 mm) CP Vacuum
Breaker
0393007 V-600-A 1½'' (38 mm) x 9'' (229 mm) CP Vacuum
Breaker
13. 0306125 F-5-A ¾'' (19 mm) CP Spud Coupling
0306140 F-5-A 1¼'' (32 mm) CP Spud Coupling
0306146 F-5-A 1½'' (38 mm) CP Spud Coupling
14. 0308676 H-550 CP Stop Coupling
15. 0308801 H-551-A CP Adjustable Tailpiece 2-1/16'' (52 mm) long
16. 5308696 H-553 O-ring — 24 per package
17. 3308386 H-700-A 1'' (25 mm) Screwdriver Bak-Chek
®
Stop CP —
complete
3308384 H-700-A ¾'' (19 mm) Screwdriver Bak-Chek
®
Stop CP —
complete
18. 3308853 H-541-A Control Stop Repair Kit †
3308856 H-543-A Control Stop Repair Kit ‡
19. 0308612 H-622 CP Bonnet †
0308843 H-577 CP Bonnet ‡
20. 3308791 H-1010-A Vandal Resistant Control Stop Cap Assembly †
3308790 H-1009-A Vandal Resistant Control Stop Cap Assembly ‡
21. 3325816 EBV-1019-A ¾'' (19 mm) Decorative Stop Cap
3308866 H-574 1'' (25 mm) Decorative Stop Cap
Accessories
22. 0325107 EBV-91 Trimpot Adjustment Screwdriver
23. 0325823 EBV-22 Disposable Strap Wrench
† For use w/H-700-A 1'' & ¾'' and H-600-A 1'' Screwdriver Bak-Chek
®
Control Stops.
‡ For use w/H-600-A ¾'' Screwdriver Bak-Chek
®
Control Stops.
18
17
21
16
20
19
15
14
10
9
12
11
13
SENSOR OPERATED FLUSHOMETERS
Battery Replacement
When OPTIMA Plus has approximately 4,000 flushes left, the same red
light that appears at start-up will flash four (4) times quickly whenever an
object is detected. When this occurs, we recommend changing the
batteries.
Separate Locking Ring, Cover and Flex Tube Diaphragm from Electronic
Sensor Module.
Loosen Retaining Screw on Battery Compartment Door and remove Battery
Compartment Door. Install four (4) Alkaline, AA Batteries exactly as
illustrated. Install Battery Compartment Door and secure with Retaining
Screw. Make certain that Battery Compartment Door is fully compressed
against Gasket to provide a seal; Do Not overtighten.
For all Optima Plus produced from 1992 - 2003
And Regal Pro Optima Plus produced after May, 2003
22
23
