Repair Parts and Maintenance Guide
49
Sensor Flushometers
The information contained in this document is subject to change without notice.
Optima
®
Royal
®
Flushometers
Repair Parts and Maintenance Guide
49
Sensor Flushometers
1
2
3
43
4
6
5
8
9
10
12
13
14
16
15
18
17
TO SOLENOID
(SEE PAGE 46)
11
ABBREVIATIONS:
CP Chrome Plated
RB Rough Brass
SD Screwdriver
WH Wheel Handle
gpf gallons per ush
Lpf Liters per ush
20
19
21
22
CONCEALED WH
OPTIMA
®
ROYAL
®

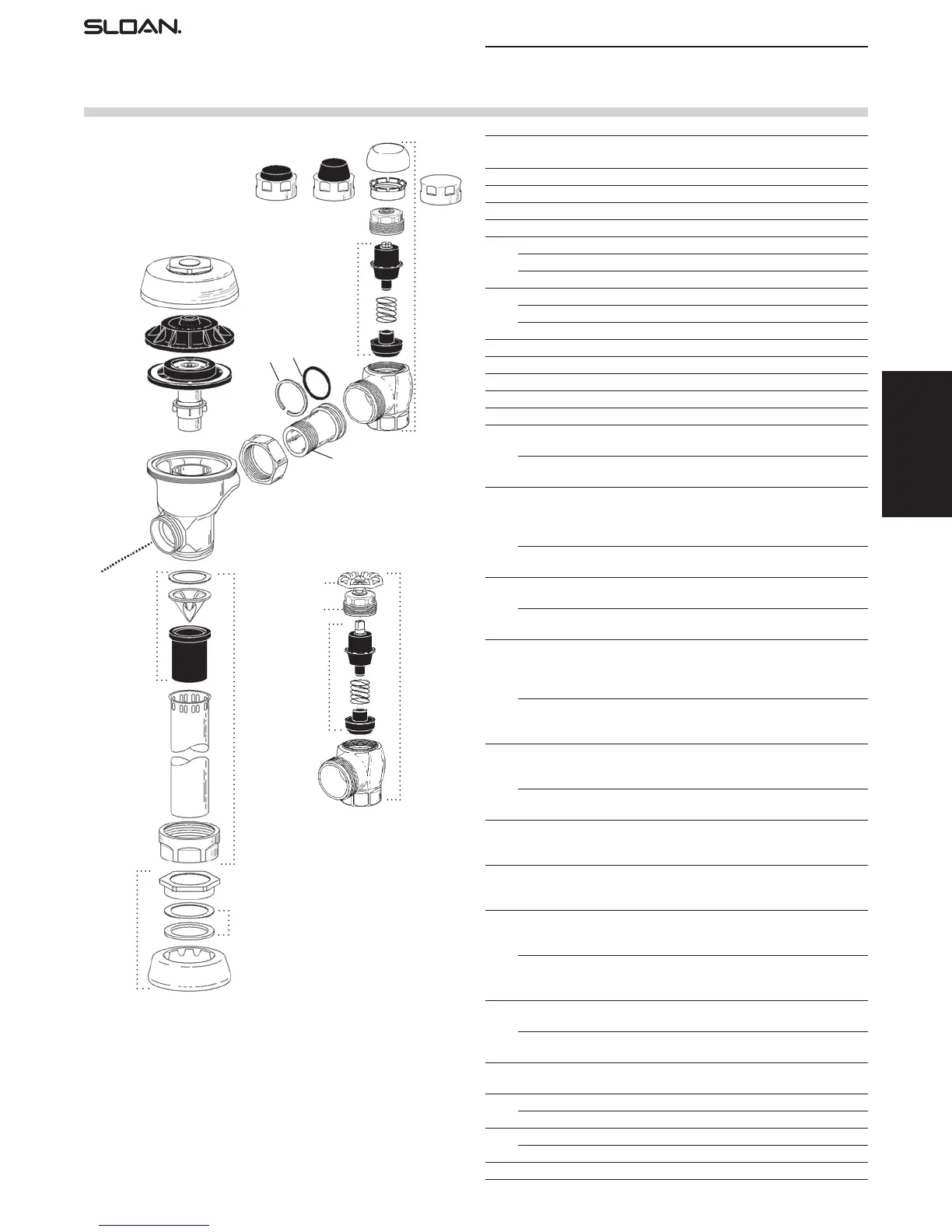

FLUSHOMETER PARTS LIST
Item
No. Code No. Part No. Description
1. 0301172 A-72 CP Cover
2. 0301168 A-71 Inside Cover
3. SEE DIAPHRAGM ASSEMBLY CHART ON PAGE 42
4. 3323182 V-651-A Vacuum Breaker Repair Kit
5. 3393004 V-600-AA 3/4” (19 mm) x 9” (229 mm) CP Vacuum Breaker
3393006 V-600-AA 1-1/4” (32 mm) x 9” (229 mm) CP Vacuum Breaker
3393007 V-600-AA 1-1/2” (38 mm) x 9” (229 mm) CP Vacuum Breaker
6. 0306125 F-5-AW 3/4” (19 mm) CP Spud Coupling Assembly
0306140 F-5-AU 1-1/4” (32 mm) CP Spud Coupling Assembly
0306146 F-5-AT 1-1/2” (38 mm) CP Spud Coupling Assembly
7. SEE SLIP JOINT GASKETS AND RINGS TABLE ON ITEM 31A ON NEXT PAGE
8. 0308676 H-550 CP Stop Coupling
9. 0308801 H-551-A CP Adjustable Tail 2-1/16” (52 mm) long
10. 5308696 H-553 O-Ring – 24 per package
11. 5308381 H-552 Locking ring – 12 per package
12. 3308386 H-700-A 1” (25 mm) Screwdriver Bak-Chek
®
Angle Stop
CP – complete
3308384 H-700-A 3/4” (19 mm) Screwdriver Bak-Chek
®
Angle Stop
CP – complete
13. 3308853 H-541-A-SD Control Stop Repair Kit for use with 1” (25 mm)
H-700-A & 3/4” (19 mm) H-700-A, 1” (25 mm)
H-600-A, 1” (25 mm) & 3/4” (19 mm) H-700-A
and 1” (25 mm) H-540-A SD Stops
3308856 H-543-A-SD Control Stop Repair Kit for use with 3/4” (19 mm)
H-600-A and H-540-A SD Stops
14. 0308612 H-622 CP Bonnet for use with 1” (25 mm) & 3/4” (19 mm)
H-700-A and 1” (25 mm) H-600-A SD Stops
0308843 H-577 CP Bonnet for use with 3/4” (19 mm) H-600-A
SD Stops – OBSOLETE
15. 3308772 H-1010-A 1” (25 mm) Vandal Resistant Control Stop Cap
Assembly for use with 1” (25 mm) & 3/4”
(19 mm) H-700-A and 1” (25 mm)
H-600-A SD Stops
3308790 H-1009-A 3/4” (19 mm) Vandal Resistant Control Stop Cap
Assembly for use with 3/4” (19 mm)
H-600-A SD Stops
16. 0308840 H-573 1” (25 mm) Control Stop Cap CP for use with
1” (25 mm) & 3/4” (19 mm) H-700-A and
1” (25 mm) H-600-A SD Stops
0308848 H-582 3/4” (19 mm) Control Stop Cap CP for use with
3/4” (19 mm) H-600-A SD Stops
17. 3308866 H-574 1” (25 mm) Control Stop Cap with Bumper for use
with 1” (25 mm) & 3/4” (19 mm) H-700-A and
1” (25 mm) H-600-A SD Stops
18. 3308867 H-576 1” (25 mm) Control Stop Cap with Extended
Bumper for use with 1” (25 mm) & 3/4” (19 mm)
H-700-A and 1” (25 mm) H-600-A SD Stops
19. 3308860 H-1006-A Repair Kit for 1” (25 mm) Stops with Concealed
WH for use with 1” (25 mm) H-700-A, H-600-A,
and H-543-AWH WH Series Stops
3308859 H-1007-A Repair Kit 3/4” (19 mm) Stops with Concealed WH
for use with 3/4” (19 mm) H-700-A WH
Series Stops
20. 0388010 H-730-A 1” (25 mm) Concealed WH Bak-Chek
®
Angle Stop RB
0388011 H-730-A 3/4” (19 mm) Concealed WH Bak-Chek
®
Angle
Stop RB
21. 3308872 H-1011-A Repair Kit (for Concealed WH only; does not
include bonnet)
42. 0208083 H-623 Bonnet
0308705 H-561 Bonnet – OBSOLETE
43. 0301048 A-143-A CP Valve Body
0301050 A-143-A RB Valve Body
3388015 H-1015-A Flow Control Kit (HEU Only (not Shown)
7
