Repair Parts and Maintenance Guide
50
Sensor Flushometers
The information contained in this document is subject to change without notice.
Optima
®
Regal
®
Flushometers
Repair Parts and Maintenance Guide
50
Sensor Flushometers
1
7
20
8
9
11
10
2
3
4
13
6
15
TO SOLENOID
(SEE PAGE 46)
OPTIMA
®
REGAL
®

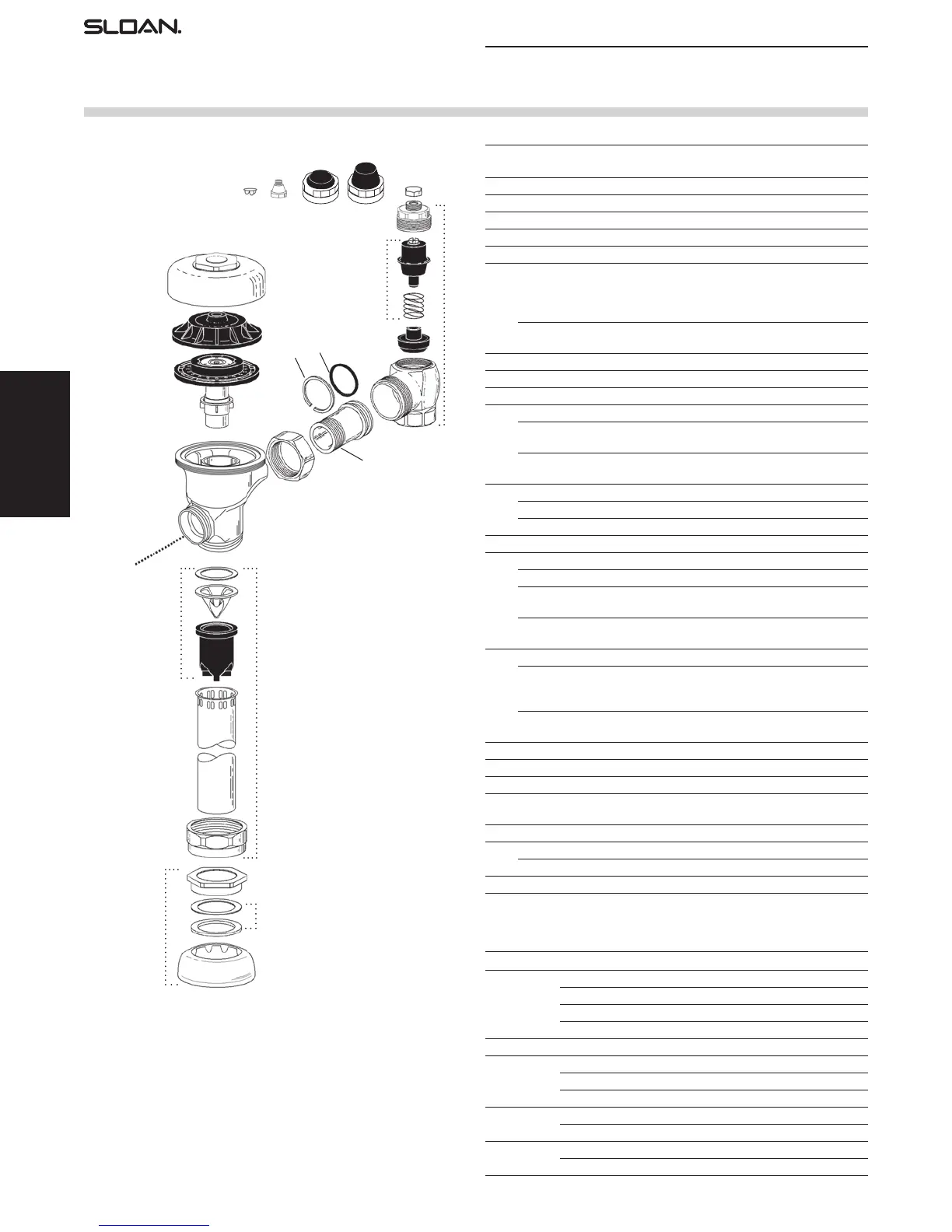

FLUSHOMETER PARTS LIST
Item
No. Code No. Part No. Description
1. 0301168 A-71 Inside Cover
2. 0308676 H-550 CP Stop Coupling
3. 0308801 H-551-A CP Adjustable Tail 2-1/16” (52 mm) long
4. 5308696 H-553 O-Ring – 24 per package
5. 5308381 H-552 Locking ring – 12 per package
6. 3308853 H-541-A-SD Control Stop Repair Kit for use with 1” (25 mm)
H-700-A & 3/4” (19 mm) H-700-A, 1” (25 mm)
H-600-A, 1” (25 mm) & 3/4” (19 mm) H-700-A
and 1” (25 mm) H-540-A SD Stops
3308856 H-543-A-SD Control Stop Repair Kit for use with 3/4” (19 mm)
H-600-A
7. 0317004 R-10 CP Cover
8. SEE INSIDE PARTS ASSEMBLY CHART ON PAGE 42
9. 3323192 V-551-A Vacuum Breaker Repair Kit
10. 5323005 V-500-AA 3/4” (19 mm) x 9” (229 mm) CP Vacuum Breaker
5323006 V-500-AA 1-1/4” (32 mm) x 9” (229 mm) CP
Vacuum Breaker
5323007 V-500-AA 1-1/2” (38 mm) x 9” (229 mm) CP
Vacuum Breaker
11. 0306102 F-54-A 3/4” (19 mm) CP Spud Coupling Assembly
0306142 F-55-A 1-1/4” (32 mm) CP Spud Coupling Assembly
0306145 F-56-A 1-1/2” (38 mm) CP Spud Coupling Assembly
12. SEE SLIP JOINT GASKETS AND RINGS TABLE BELOW
13. 0388065 H-790-A 1” Screwdriver Stop Adjustable
0388064 H-790-A 3/4” Screwdriver Stop Adjustable
0388029 H-740-A 1” (25 mm) SD Bak-Chek
®
Stop CP – complete
OBSOLETE
0388031 H-740-A 3/4” (19 mm) SD Bak-Chek
®
Stop CP – complete
OBSOLETE
14. 0308612 H-622 CP Bonnet (Current Regal
®
)
0308991 H-639 CP Bonnet for use with 1” (25 mm) & 3/4”
(19 mm) H-700-A and 1” (25 mm) H-540-A
SD Stops – Pre 2010 Regal
®
Stops
0308601 H-538 CP Bonnet for use with H-700-A 3/4” (19 mm)
SD Stop – OBSOLETE
15. 5388001 H-1012-A CP Cap – 6 per package VP
16. 5310034 J-2/J-7 Bumper Assembly – 6 per package – OBSOLETE
17. 3308866 H-574 Stop Cap, chrome plated with Seat Bumper (-YO)
18. 3308867 H-576 Stop Cap, chrome plated with Extended Seat
Bumper (-YG)
19. 5388002 H-528 Hole Plug
20. 0301048 A-143-A CP Valve Body
0301050 A-143-A RB Valve Body
3388015 H-1015-A Flow Control Kit (HEU Only (not Shown)
NOTE: Also refer to the Royal
®
, Regal
®
, control stop and ush connection sections.
5
19
12
ITEM 31A. SLIP JOINT GASKETS AND RINGS
Size Code No. Part No. Description
1-1/2” 5306058 F-3 Red Friction Ring
5322001 VBF-5 Black Slip Joint Gasket
0319086/5319086 S-30 Flexible Seat
0319079 S-21 Rigid Seat (rubber over brass)
1-1/2” x 1-1/4” 0396062 F-105 Slip Joint Gasket – Rigid
1-1/4” 5306057 F-3 Red Friction Ring
5322176 VBF-5 Black Slip Joint Gasket
0307052/5307052 G-21 Rigid Seat (rubber over brass)
1” 5306056 F-3 Red Friction Ring
5306115 F-5 Black Slip Joint Gasket
3/4” 5306055 F-3 Red Friction Ring
5306113 F-5 Black Slip Joint Gasket
NOTE: Also for use with Regal
®
XL
(Since mid-2010)
16
17
18
14
