Sloan Optima - Optima Flushometer Repair Kits and Components; Royal ESS Repair Kits; Diaphragm Only Kits; Regal ESS Inside Parts Kits

Repair Parts and Maintenance Guide
51
Sensor Flushometers
The information contained in this document is subject to change without notice.
Repair Parts and Maintenance Guide
51
Sensor Flushometers

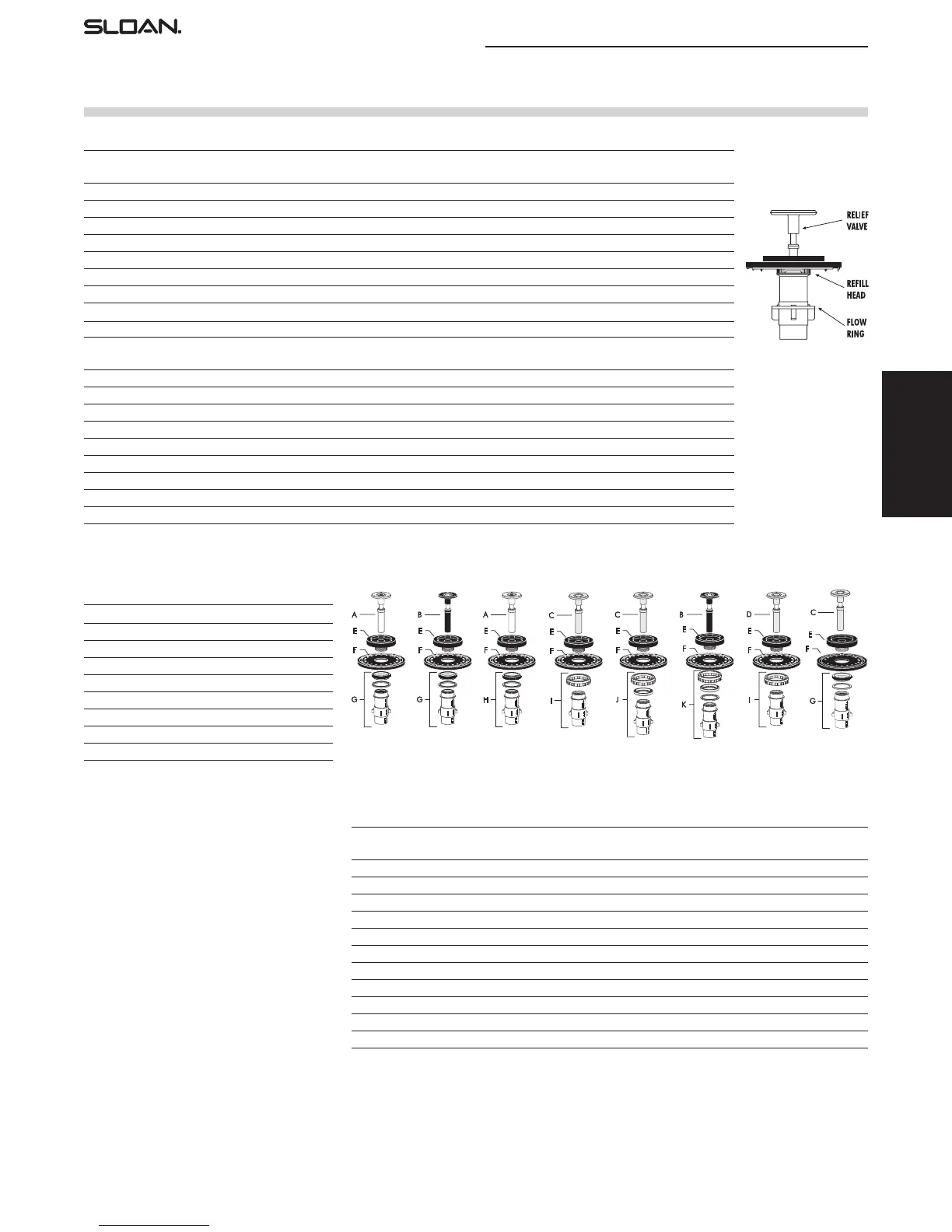

To identify the Flush Volume of
a DUAL FILTERED DIAPHRAGM
ASSEMBLY, look at the color of
the relief valve, the refill head
and the shape of flow ring.
*NOTE: Water closet rell
heads (gray) have larger slots than
urinal rell heads (black).
REGAL
®
INSIDE PARTS LIST** NOTE: Also for use with Regal
®
XL (Since mid-2010)
Item
No. Code No. Part No. Description
A. 5301058 A-19-AC Relief Valve, White (Closet)
B. 5301059 A-19-AU Relief Valve, Black (Urinal)
C. 5301211 A-19-ALC Relief Valve, Green (Closet/Urinal-Low Consumption)
D. 0301143 A-19-AL Relief Valve, Blue (9 Liter Closet)
E. 5301111 A-15-A Disc
F. 5301188 A-156-A Diaphragm
G. 5301236 A-163-A Guide Assembly 4.5 gpf/17.0 Lpf Closet and 1.5 gpf/5.7 Lpf Urinal
H. 5301032 A-152-A Guide Assembly 3.5 gpf/13.2 Lpf Closet
I. 5301031 A-151-A Guide Assembly 1.6 gpf/6.0 Lpf Closet
J. 5301155 A-155-A Guide Assembly 1.0 gpf/3.8 Lpf Urinal
K. 5301157 A-157-A Guide Assembly 0.5 gpf/1.9 Lpf Urinal
**NOTE: All Regal
®
inside part items are supplied in 12 per package.
REGAL
®
ESS (ITEM 28)
INSIDE PARTS KITS ASSEMBLY
NOTE: Also for use with Regal
®
XL (Since mid-2010)
Code No. Part No. Description
3301036 A-36-A 4.5 gpf/17.0 Lpf-Closet
3301037 A-37-A 1.5 gpf/5.7 Lpf-Urinal
3301038 A-38-A 3.5 gpf/13.2 Lpf-Closet
3301041 A-41-A 1.6 gpf/6.0 Lpf-Closet
3301044 A-42-A 1.0 gpf/3.8 Lpf-Urinal
3301081 A-43-A 0.5 gpf/1.9 Lpf-Urinal
3301024 A-44-A 2.4 gpf/9.0 Lpf-Closet
3301045 A-140-A 1.28 gpf/4.8 Lpf- Closet
ROYAL
®
ESS (ITEM 24) REPAIR KIT
Relief Refill Flow
Code No. Part No. Description Valve Head* Ring
3345013 EL-1101-A Low Consumption Water Closets-1.6 gpf (6.0 Lpf) Green Gray Smooth
3345014 EL-1102-A Water Saver Water Closets-3.5 gpf (13.2 Lpf) White Gray Smooth
3345015 EL-1103-A 9 Liter European Water Closets-2.4 gpf (9.0 Lpf) Blue Gray Smooth
3345016 EL-1106-A Wash Down Urinals-0.5 gpf (1.9 Lpf) Green Black Smooth
3345017 EL-1107-A Low Consumption Urinals-1.0 gpf (3.8 Lpf) Green Black Slotted
3345018 EL-1108-A Water Saver Urinals-1.5 gpf (5.7 Lpf) Black Black Smooth
3345083 EL-1109-A High Efciency Urinals-1.28 gpf (4.8 Lpf) Blue Gray Smooth
DIAPHRAGM ONLY KIT
Relief Refill Flow
Code No. Part No. Description Valve Head* Ring
3301502 A-1041-A Low Consumption Water Closets-1.6 gpf (6.0 Lpf) Green Gray Smooth
3301501 A-1038-A Water Saver Water Closets-3.5 gpf (13.2 Lpf) White Gray Smooth
3301506 A-1045-A High Efciency Water Closets-1.28 gpf (4.8 Lpf) Blue Gray Smooth
3301505 A-1044-A 9 Liter European Water Closets-2.4 gpf (9.0 Lpf) Blue Gray Smooth
3301504 A-1043-A Wash Down Urinals-0.5 gpf (1.9 Lpf) Green Black Smooth
3321503 A-1042-A Low Consumption Urinals-1.0 gpf (3.8 Lpf) Green Black Slotted
3301500 A-1037-A Water Saver Urinals-1.5 gpf (5.7 Lpf) Black Black Smooth
3301142 A-1047-A High Efciency Urinals-0.25 gpf (1.0 Lpf) with White Inserts White HEU Black Smooth
3301143 A-1050-A High Efciency Urinals-0.125 gpf (0.5 Lpf) with White Inserts Blue HEU Black Smooth
*NOTE: Water closet rell heads (gray) have larger slots than urinal rell heads (black).
A-36-A
Closet
A-37-A
Urinal
A-38-A
Closet
A-41-A
Closet
A-42-A
Urinal
A-43-A
Urinal
A-44-A
Closet
4.5 gpf/
17.0 Lpf
1.5 gpf/
5.7 Lpf
3.5 gpf/
13.2 Lpf
1.6 gpf/
6.0 Lpf
1.0 gpf/
3.8 Lpf
0.5 gpf/
1.9 Lpf
1.28 gpf/
4.8 Lpf
Optima
®
Flushometers
A-140-A
Closet
