Smappee EV Wall – Installation manual - English
Without transformer

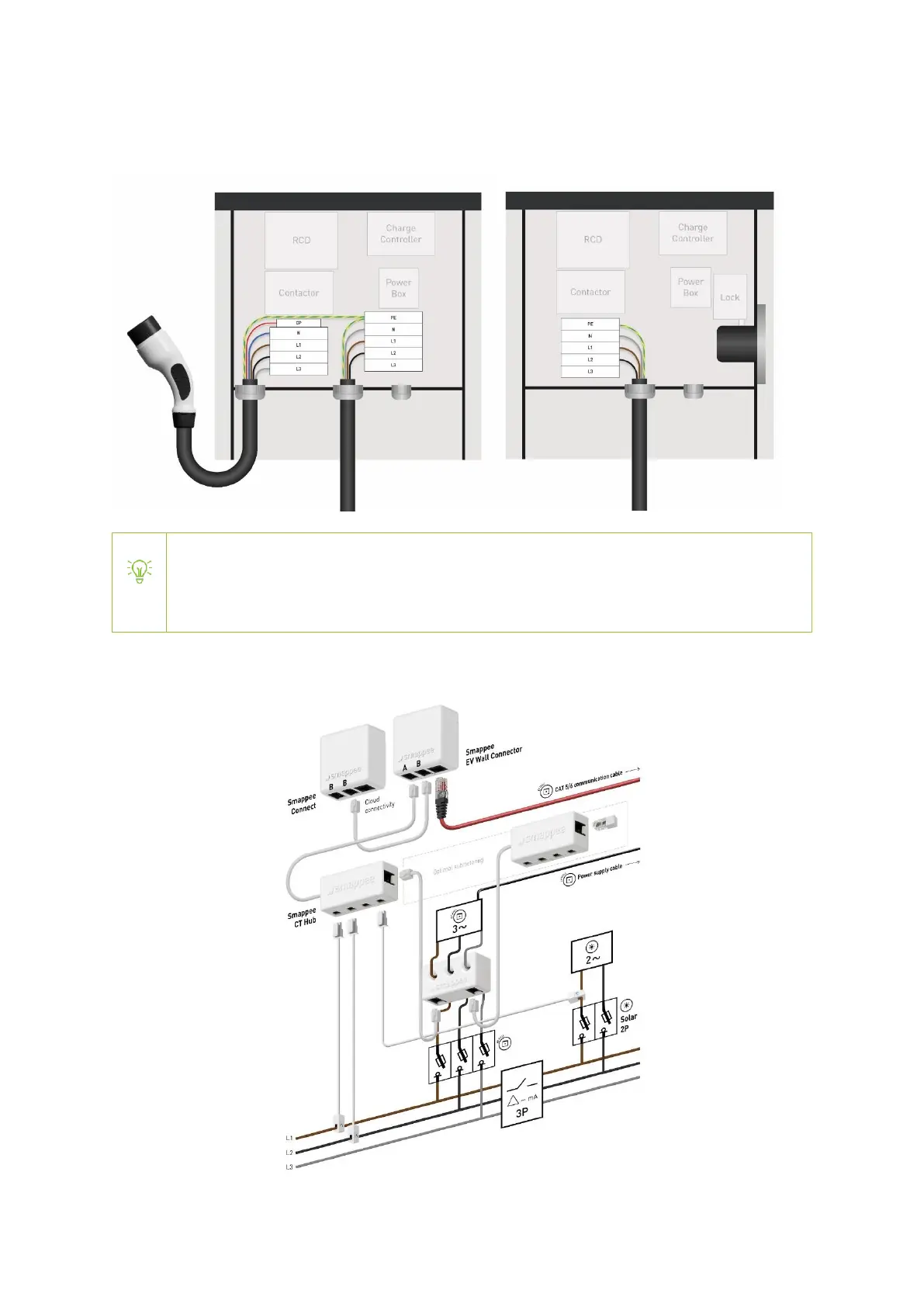

If you are connecting the charging station directly to the 3 x 230 V delta grid, without transformer,
please refer to the diagrams below.
We highly recommend that you test compatibility with the customer’s EV during
installation. If you have connected the EV Wall as shown above but the EV will not charge,
you can try to disconnect the L2 cable going to the charging cable or to the socket. Do not
disconnect the L2 of the power supply cable!
If you install an EV Wall on a 3 x 230 V delta grid connection without transformer, the Infinity
components in the distribution cabinet should be connected as shown below:
