Smappee EV Wall – Installation manual - English
27
Note that when you measure single-phase loads or solar panels, you must connect and configure the
CT(s) as shown below:
Single phase consumer/producer
powered by
Connect the clamp around
Phase measured by this CT
L1 and L3
L1
L1
L2 and L3
L2
L2
L1 and L2
L1
L3
With transformer
If a transformer is used to convert the 3 x 230 V delta connection to a standard 3 x 400 V star with
neutral, then the charging station’s power supply can be connected as usual. Please refer to the
pictures on previous pages for this. The connection in the distribution cabinet is still a little different,

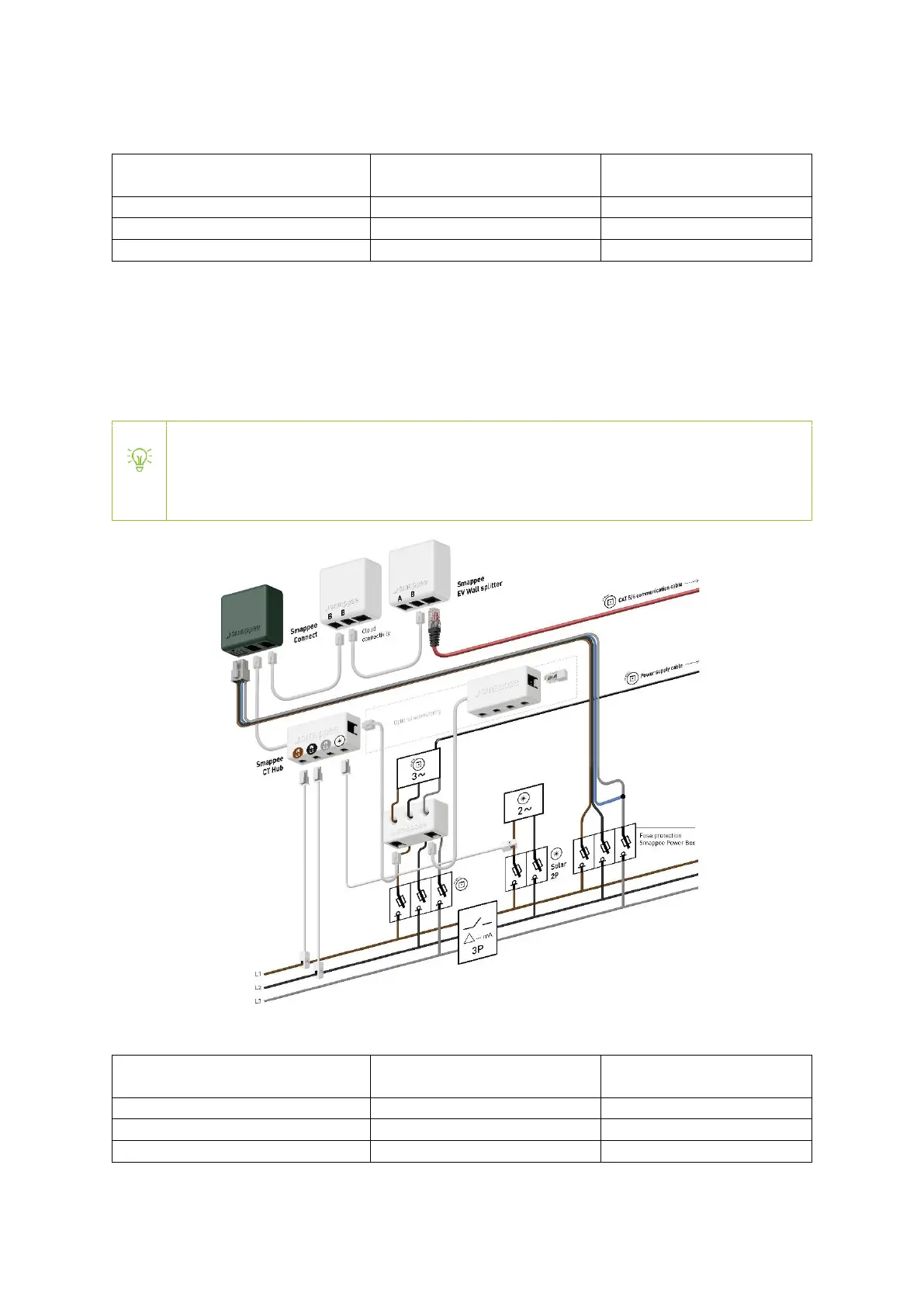

as shown in the diagram below.
When a transformer is used in combination with a 3 x 230 V delta topology, the purchase
of an additional Smappee Power box is required. This will be placed inside the distribution
panel. In this case, the Power Box inside the EV Wall becomes redundant and both RJ10
cables should be disconnected.
Note that when you measure single-phase loads or solar panels, you must connect and configure the
CT(s) as shown below:
Single phase consumer/producer
powered by
Connect the clamp around
Phase measured by this CT
L1 and L3
L1
L1
L2 and L3
L2
L2
L1 and L2
L1
L3
